Gears are essential components in mechanical systems, facilitating the transfer of motion and power between rotating shafts. One of the critical parameters in gear design is the diametral pitch, which determines the size and spacing of the teeth on a gear. Understanding the concept of diametral pitch and conducting a Different Diametral Pitches Comparaison is crucial for engineers and designers to ensure optimal performance and efficiency in gear systems.
Understanding Diametral Pitch

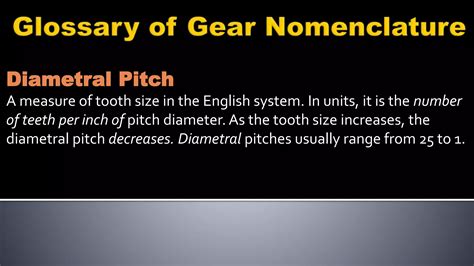

Diametral pitch (DP) is defined as the number of teeth per inch of the pitch diameter of a gear. It is a fundamental parameter that influences the size, strength, and performance of gears. The pitch diameter is the diameter of the imaginary circle that passes through the points of contact between two meshing gears. The formula for diametral pitch is:
DP = Number of Teeth / Pitch Diameter
Importance of Diametral Pitch in Gear Design
Diametral pitch plays a pivotal role in gear design for several reasons:
- Size and Space Constraints: The diametral pitch determines the overall size of the gear. A higher DP results in smaller gears with finer teeth, which is beneficial when space is limited.
- Strength and Durability: The strength of a gear is directly related to its tooth size. Gears with a lower DP have larger teeth, which can withstand higher loads and provide better durability.
- Efficiency and Performance: The efficiency of a gear system depends on the smoothness of the meshing action. Gears with an appropriate DP ensure minimal backlash and smooth operation, enhancing overall performance.
Comparing Different Diametral Pitches
When conducting a Different Diametral Pitches Comparaison, it is essential to consider various factors such as load requirements, space constraints, and desired performance. Here is a detailed comparison of different diametral pitches:
Low Diametral Pitch (DP)
Gears with a low DP have larger teeth and are typically used in applications where high load capacity and durability are required. These gears are commonly found in heavy machinery, automotive transmissions, and industrial equipment.
Advantages:
- High load-carrying capacity
- Better durability and longevity
- Reduced wear and tear
Disadvantages:
- Larger overall size
- Higher weight
- Potential for increased backlash
Medium Diametral Pitch (DP)
Medium DP gears offer a balance between load capacity and size. They are suitable for a wide range of applications, including consumer electronics, appliances, and light industrial machinery.
Advantages:
- Compact size
- Good load-carrying capacity
- Versatile applications
Disadvantages:
- Moderate durability
- Potential for increased noise
High Diametral Pitch (DP)
Gears with a high DP have fine teeth and are ideal for applications where space is limited. These gears are commonly used in precision instruments, watches, and small electronic devices.
Advantages:
- Compact size
- High precision
- Smooth operation
Disadvantages:
- Lower load-carrying capacity
- Reduced durability
- Higher susceptibility to wear
Factors to Consider in Diametral Pitch Selection
Selecting the appropriate diametral pitch involves considering several factors to ensure the gear system meets the required performance and durability standards. Key factors include:
- Load Requirements: Determine the maximum load the gear will need to handle. Higher loads require gears with a lower DP.
- Space Constraints: Assess the available space for the gear system. Limited space may necessitate gears with a higher DP.
- Desired Performance: Consider the desired performance characteristics, such as smoothness of operation, noise levels, and efficiency.
- Material Selection: Choose the appropriate material for the gears based on the operating conditions and load requirements.
Example of Different Diametral Pitches Comparaison
To illustrate the Different Diametral Pitches Comparaison, let’s consider an example of three gears with different diametral pitches:
| Gear Type | Diametral Pitch (DP) | Number of Teeth | Pitch Diameter (inches) | Load Capacity |
|---|---|---|---|---|
| Heavy Duty Gear | 4 | 40 | 10 | High |
| Standard Gear | 8 | 40 | 5 | Medium |
| Precision Gear | 16 | 40 | 2.5 | Low |
In this example, the heavy-duty gear with a DP of 4 has the largest pitch diameter and the highest load capacity. The precision gear with a DP of 16 has the smallest pitch diameter and the lowest load capacity. The standard gear with a DP of 8 offers a balance between size and load capacity.
📝 Note: The pitch diameter is calculated by dividing the number of teeth by the diametral pitch (DP).
Applications of Different Diametral Pitches
Different diametral pitches are used in various applications based on their specific requirements. Some common applications include:
- Automotive Industry: Gears with low DP are used in transmissions and differentials to handle high loads and torques.
- Industrial Machinery: Medium DP gears are commonly used in conveyors, pumps, and other machinery where a balance between size and load capacity is required.
- Consumer Electronics: High DP gears are used in small devices like cameras, watches, and toys where space is limited.
- Precision Instruments: Gears with high DP are essential for applications requiring high precision and smooth operation, such as medical devices and scientific equipment.
Understanding the specific requirements of each application is crucial for selecting the appropriate diametral pitch and ensuring optimal performance.
Conclusion
In summary, diametral pitch is a critical parameter in gear design that influences the size, strength, and performance of gears. Conducting a Different Diametral Pitches Comparaison helps engineers and designers select the appropriate gear for specific applications. By considering factors such as load requirements, space constraints, and desired performance, one can ensure the gear system meets the necessary standards for efficiency and durability. Understanding the advantages and disadvantages of different diametral pitches is essential for optimizing gear design and achieving the best possible performance in various mechanical systems.
