Understanding the intricacies of a Diesel Fuel System is crucial for anyone involved in the maintenance and operation of diesel engines. Whether you are a mechanic, an engineer, or a diesel engine enthusiast, grasping the fundamentals of how a diesel fuel system works can significantly enhance your ability to troubleshoot and optimize performance. This blog post delves into the components, functioning, and maintenance of diesel fuel systems, providing a comprehensive guide to ensure your diesel engine runs smoothly.
Understanding the Diesel Fuel System
A diesel fuel system is a complex network of components designed to deliver fuel from the tank to the engine efficiently. The primary function of this system is to ensure that the engine receives the right amount of fuel at the correct pressure and timing. The key components of a diesel fuel system include:
- The fuel tank
- The fuel filter
- The fuel pump
- The fuel injectors
- The fuel lines
- The fuel return line
Each of these components plays a vital role in the overall performance of the diesel engine. Let's explore each component in detail.
The Fuel Tank
The fuel tank is the storage unit for diesel fuel. It is designed to hold a sufficient amount of fuel to power the engine over a considerable distance. The fuel tank must be robust and corrosion-resistant to withstand the harsh conditions it may encounter. Regular inspection and maintenance of the fuel tank are essential to prevent leaks and contamination.
The Fuel Filter
The fuel filter is a critical component in the diesel fuel system. Its primary function is to remove impurities and contaminants from the fuel before it reaches the engine. Contaminants such as dirt, rust, and water can cause significant damage to the engine if they are not filtered out. There are two main types of fuel filters:
- Primary fuel filters
- Secondary fuel filters
Primary fuel filters are typically located near the fuel tank and are designed to remove larger particles. Secondary fuel filters, on the other hand, are located closer to the engine and are designed to remove finer particles. Regular replacement of fuel filters is crucial to maintain the efficiency and longevity of the diesel engine.
The Fuel Pump

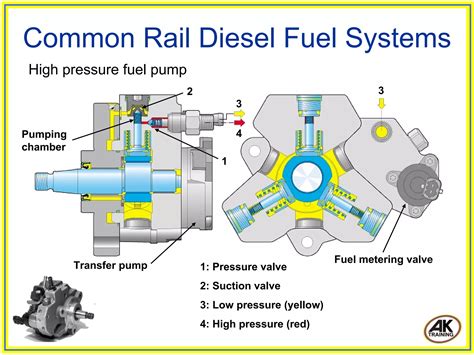

The fuel pump is responsible for delivering fuel from the tank to the engine at the required pressure. There are two main types of fuel pumps used in diesel engines:
- Mechanical fuel pumps
- Electric fuel pumps
Mechanical fuel pumps are driven by the engine's camshaft and are commonly used in older diesel engines. Electric fuel pumps, on the other hand, are powered by the vehicle's electrical system and are more efficient and reliable. The fuel pump must be in good working condition to ensure that the engine receives a steady supply of fuel.
The Fuel Injectors
Fuel injectors are responsible for delivering fuel into the engine's cylinders at the precise moment and in the correct amount. They play a crucial role in the combustion process and significantly impact the engine's performance and efficiency. There are two main types of fuel injectors used in diesel engines:
- Mechanical fuel injectors
- Electronic fuel injectors
Mechanical fuel injectors are operated by the engine's camshaft and are commonly used in older diesel engines. Electronic fuel injectors, on the other hand, are controlled by the engine's electronic control unit (ECU) and are more precise and efficient. Regular maintenance and cleaning of fuel injectors are essential to ensure optimal performance.
The Fuel Lines
Fuel lines are the conduits through which fuel travels from the tank to the engine. They are typically made of metal or high-pressure hoses and must be able to withstand the high pressure and temperature of the diesel fuel system. Regular inspection of fuel lines is crucial to prevent leaks and ensure the efficient flow of fuel.
The Fuel Return Line

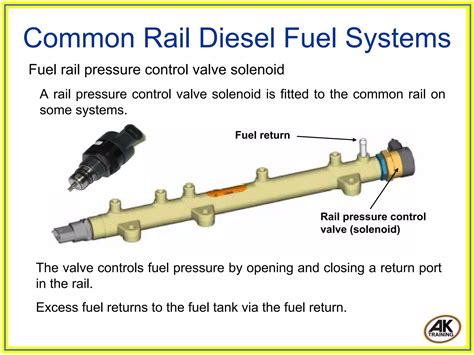

The fuel return line is responsible for returning excess fuel from the engine back to the fuel tank. This helps to maintain a consistent fuel pressure and temperature within the system. The fuel return line is an essential component of the diesel fuel system and must be in good working condition to ensure optimal performance.
Maintenance of the Diesel Fuel System
Maintaining the diesel fuel system is crucial to ensure the longevity and efficiency of the diesel engine. Regular inspection and maintenance of the fuel system components can prevent costly repairs and downtime. Here are some key maintenance tips for the diesel fuel system:
- Regularly inspect the fuel tank for leaks and contamination.
- Replace fuel filters at recommended intervals to prevent contamination.
- Check the fuel pump for proper operation and replace if necessary.
- Clean and maintain fuel injectors to ensure optimal performance.
- Inspect fuel lines for leaks and replace if necessary.
- Check the fuel return line for proper operation and replace if necessary.
By following these maintenance tips, you can ensure that your diesel fuel system operates efficiently and reliably.
🔧 Note: Always refer to the manufacturer's guidelines for specific maintenance intervals and procedures.
Common Issues with Diesel Fuel Systems
Despite regular maintenance, diesel fuel systems can still encounter issues that affect engine performance. Some common problems include:
- Clogged fuel filters
- Faulty fuel pumps
- Leaking fuel lines
- Dirty fuel injectors
- Contaminated fuel
These issues can lead to reduced engine performance, increased fuel consumption, and even engine failure if not addressed promptly. Regular inspection and maintenance can help prevent these problems and ensure the reliability of the diesel fuel system.
Troubleshooting Diesel Fuel System Problems
When issues arise with the diesel fuel system, it is essential to troubleshoot and identify the root cause promptly. Here are some steps to help you troubleshoot common diesel fuel system problems:
- Check for fuel leaks around the fuel tank, fuel lines, and fuel injectors.
- Inspect the fuel filter for clogs and replace if necessary.
- Test the fuel pump for proper operation and replace if necessary.
- Clean and test the fuel injectors for proper operation.
- Check the fuel return line for proper operation and replace if necessary.
By following these troubleshooting steps, you can identify and resolve issues with the diesel fuel system efficiently.
🛠️ Note: Always use the correct tools and safety equipment when troubleshooting diesel fuel system problems.
Optimizing Diesel Fuel System Performance
Optimizing the performance of the diesel fuel system can significantly enhance engine efficiency and reduce fuel consumption. Here are some tips to optimize diesel fuel system performance:
- Use high-quality diesel fuel to minimize contamination and deposits.
- Regularly clean and maintain fuel injectors to ensure optimal performance.
- Replace fuel filters at recommended intervals to prevent clogs.
- Inspect and maintain fuel lines to prevent leaks and ensure efficient fuel flow.
- Check the fuel pump for proper operation and replace if necessary.
By following these optimization tips, you can ensure that your diesel fuel system operates at peak performance.
Advanced Diesel Fuel System Technologies
Advancements in technology have led to the development of more efficient and reliable diesel fuel systems. Some of the latest technologies include:

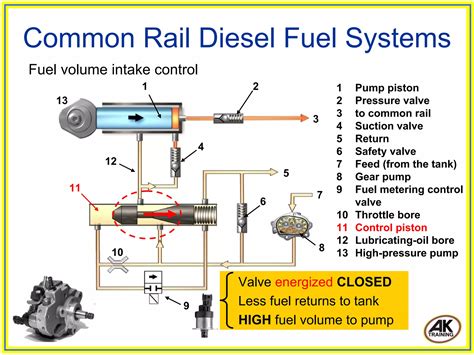

- Common Rail Direct Injection (CRDI) systems
- Electronic Fuel Injection (EFI) systems
- Diesel Particulate Filters (DPF)
- Selective Catalytic Reduction (SCR) systems
These technologies enhance fuel efficiency, reduce emissions, and improve overall engine performance. Understanding these advanced systems can help you make informed decisions when maintaining or upgrading your diesel engine.
Diesel Fuel System Components and Their Functions
To better understand the diesel fuel system, it is essential to know the functions of each component. Here is a table summarizing the key components and their roles:
| Component | Function |
|---|---|
| Fuel Tank | Stores diesel fuel and supplies it to the engine. |
| Fuel Filter | Removes impurities and contaminants from the fuel. |
| Fuel Pump | Delivers fuel from the tank to the engine at the required pressure. |
| Fuel Injectors | Delivers fuel into the engine's cylinders at the precise moment and in the correct amount. |
| Fuel Lines | Conduits through which fuel travels from the tank to the engine. |
| Fuel Return Line | Returns excess fuel from the engine back to the fuel tank. |
Understanding the functions of these components can help you troubleshoot and maintain the diesel fuel system more effectively.
🔍 Note: Regular inspection and maintenance of each component are crucial to ensure the overall efficiency of the diesel fuel system.
Diesel fuel systems are complex and require regular maintenance to ensure optimal performance. By understanding the components, functions, and maintenance requirements of the diesel fuel system, you can enhance the efficiency and longevity of your diesel engine. Regular inspection, troubleshooting, and optimization can help prevent costly repairs and downtime, ensuring that your diesel engine runs smoothly and efficiently.
