Diagram Electron Configuration

Understanding the structure of atoms is fundamental to grasping the behavior of elements and their interactions. One of the most crucial concepts in this realm is the Diagram Electron Configuration. This diagram provides a visual representation of how electrons are arranged in the orbitals of an atom, offering insights into the chemical properties and reactivity of elements. By delving into the Diagram Electron Configuration, we can better comprehend the periodic trends and the underlying principles of chemical bonding.

Table of Contents

What is Electron Configuration?

Electron configuration refers to the distribution of electrons in the various orbitals of an atom. Each orbital can hold a specific number of electrons, and the arrangement of these electrons determines the atom’s chemical behavior. The Diagram Electron Configuration is a graphical representation of this distribution, making it easier to visualize and understand.

Understanding Atomic Orbitals

Before diving into the Diagram Electron Configuration, it’s essential to understand the concept of atomic orbitals. Orbitals are regions within an atom where electrons are likely to be found. There are four types of orbitals: s, p, d, and f, each with a different shape and capacity for electrons.

s orbitals: Spherical in shape and can hold up to 2 electrons.
p orbitals: Dumbbell-shaped and can hold up to 6 electrons (2 in each of the three p orbitals).
d orbitals: More complex in shape and can hold up to 10 electrons.
f orbitals: Even more complex and can hold up to 14 electrons.

Building the Diagram Electron Configuration

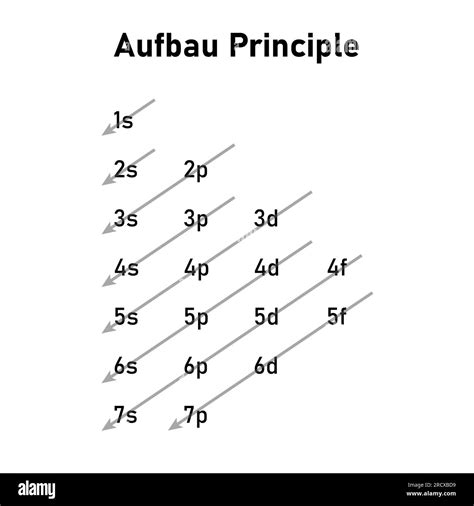

The Diagram Electron Configuration is constructed by following the Aufbau principle, which states that electrons fill the lowest energy orbitals first. The order of filling is as follows:

For example, the electron configuration of carbon (atomic number 6) is 1s²2s²2p². This means that carbon has 2 electrons in the 1s orbital, 2 electrons in the 2s orbital, and 2 electrons in the 2p orbital.

Reading the Diagram Electron Configuration

The Diagram Electron Configuration provides a clear visual representation of the electron distribution. Each orbital is depicted as a box, and electrons are represented by arrows. The direction of the arrow indicates the spin of the electron (up or down).

Here is an example of a Diagram Electron Configuration for the first few elements:

Element	Electron Configuration	Diagram
Hydrogen (H)	1s¹	1s: ↑
Helium (He)	1s²	1s: ↑ ↓
Lithium (Li)	1s²2s¹	1s: ↑ ↓ 2s: ↑
Beryllium (Be)	1s²2s²	1s: ↑ ↓ 2s: ↑ ↓
Boron (B)	1s²2s²2p¹	1s: ↑ ↓ 2s: ↑ ↓ 2p: ↑

In this table, the Diagram Electron Configuration shows the distribution of electrons in the orbitals for each element. For example, boron has 2 electrons in the 1s orbital, 2 electrons in the 2s orbital, and 1 electron in the 2p orbital.

💡 Note: The Diagram Electron Configuration is particularly useful for visualizing the valence electrons, which are the electrons in the outermost shell and are responsible for an element's chemical properties.

Applications of Diagram Electron Configuration

The Diagram Electron Configuration has numerous applications in chemistry and physics. Some of the key applications include:

Predicting Chemical Reactivity: By understanding the electron configuration, chemists can predict how an element will react with others. For example, elements with partially filled outer shells are more likely to form bonds.
Explaining Periodic Trends: The Diagram Electron Configuration helps explain trends in the periodic table, such as atomic radius, ionization energy, and electronegativity. For instance, elements in the same group have similar electron configurations in their outer shells, leading to similar chemical properties.
Understanding Chemical Bonding: The distribution of electrons in orbitals determines the type of chemical bonds an element can form. For example, elements with unpaired electrons in their outer shells tend to form covalent bonds.
Analyzing Spectral Lines: In physics, the Diagram Electron Configuration is used to analyze the spectral lines emitted by atoms. Each transition of an electron between energy levels corresponds to a specific wavelength of light, providing insights into the atom’s structure.

Examples of Diagram Electron Configuration

Let’s look at a few examples of Diagram Electron Configuration for different elements to illustrate how this concept is applied.

Sodium (Na)

Sodium has an atomic number of 11, so its electron configuration is 1s²2s²2p⁶3s¹. The Diagram Electron Configuration for sodium would show:

1s: ↑ ↓
2s: ↑ ↓
2p: ↑ ↓ ↑ ↓ ↑ ↓
3s: ↑

This configuration indicates that sodium has one valence electron in the 3s orbital, making it highly reactive and prone to losing this electron to form a positive ion (Na⁺).

Chlorine (Cl)

Chlorine has an atomic number of 17, so its electron configuration is 1s²2s²2p⁶3s²3p⁵. The Diagram Electron Configuration for chlorine would show:

1s: ↑ ↓
2s: ↑ ↓
2p: ↑ ↓ ↑ ↓ ↑ ↓
3s: ↑ ↓
3p: ↑ ↓ ↑ ↓ ↑

This configuration indicates that chlorine has seven valence electrons, with one unpaired electron in the 3p orbital. This makes chlorine highly reactive and prone to gaining an electron to form a negative ion (Cl^-).

Iron (Fe)

Iron has an atomic number of 26, so its electron configuration is 1s²2s²2p⁶3s²3p⁶4s²3d⁶. The Diagram Electron Configuration for iron would show:

1s: ↑ ↓
2s: ↑ ↓
2p: ↑ ↓ ↑ ↓ ↑ ↓
3s: ↑ ↓
3p: ↑ ↓ ↑ ↓ ↑ ↓
4s: ↑ ↓
3d: ↑ ↓ ↑ ↓ ↑ ↓ ↑

This configuration indicates that iron has six unpaired electrons in the 3d orbital, which contributes to its magnetic properties and reactivity.

💡 Note: The Diagram Electron Configuration can also be used to explain the concept of oxidation states and the formation of complex ions.

Advanced Topics in Diagram Electron Configuration

For more advanced studies, the Diagram Electron Configuration can be extended to include concepts such as spin-orbit coupling and relativistic effects. These factors become significant for heavier elements, where the interaction between the spin of the electron and its orbital motion can affect the energy levels.

Additionally, the Diagram Electron Configuration can be used to understand the behavior of electrons in molecules and solids. In molecular orbitals, electrons are shared between atoms, leading to the formation of bonds. In solids, the energy levels of electrons form bands, which determine the electrical conductivity of the material.

Understanding the Diagram Electron Configuration is a fundamental step in mastering the principles of chemistry and physics. By visualizing the distribution of electrons in orbitals, we gain insights into the behavior of elements and their interactions. This knowledge is essential for predicting chemical reactivity, explaining periodic trends, and analyzing spectral lines. Whether you are a student, a researcher, or an enthusiast, the Diagram Electron Configuration is a powerful tool for exploring the fascinating world of atoms and molecules.

In summary, the Diagram Electron Configuration provides a clear and concise way to represent the distribution of electrons in atomic orbitals. By understanding this diagram, we can better comprehend the chemical properties of elements, predict their reactivity, and explain periodic trends. The applications of the Diagram Electron Configuration extend to various fields, including chemistry, physics, and materials science, making it an indispensable tool for scientists and educators alike.
