Refrigerant leaks can be a significant issue in HVAC systems, leading to reduced efficiency, increased energy costs, and potential environmental hazards. Detecting refrigerant leaks early is crucial for maintaining the performance and longevity of your HVAC system. This blog post will guide you through the importance of detecting refrigerant leaks, the methods used for detection, and the steps to take once a leak is identified.
Understanding Refrigerant Leaks
Refrigerant is the lifeblood of any HVAC system, responsible for absorbing and releasing heat to regulate indoor temperatures. However, refrigerant leaks can occur due to various reasons, including:
- Corrosion of system components
- Mechanical damage
- Improper installation
- Wear and tear over time
When a refrigerant leak occurs, it not only compromises the efficiency of the HVAC system but also poses environmental risks. Many refrigerants, such as R-22 and R-410A, are potent greenhouse gases that contribute to global warming if released into the atmosphere.
Importance of Detecting Refrigerant Leaks
Detecting refrigerant leaks is essential for several reasons:
- Energy Efficiency: A leak can cause the HVAC system to work harder, leading to increased energy consumption and higher utility bills.
- System Performance: Reduced refrigerant levels can impair the system's ability to cool or heat effectively, resulting in discomfort and potential equipment failure.
- Environmental Impact: Refrigerants are harmful to the environment. Detecting and repairing leaks helps minimize their release into the atmosphere.
- Safety: Some refrigerants can be toxic or flammable, posing health and safety risks if they leak into occupied spaces.
Methods for Detecting Refrigerant Leaks
There are several methods for detecting refrigerant leaks, each with its own advantages and limitations. The choice of method depends on the type of refrigerant, the size of the system, and the specific circumstances of the leak.
Visual Inspection
Visual inspection is the simplest and most straightforward method for detecting refrigerant leaks. It involves examining the HVAC system for signs of leakage, such as:
- Oil stains or residue around fittings and connections
- Frost or ice buildup on refrigerant lines
- Visible cracks or damage to system components
While visual inspection can identify obvious leaks, it may not be effective for detecting smaller or hidden leaks.
Bubble Solution
The bubble solution method is a low-cost and effective way to detect refrigerant leaks. It involves applying a soapy solution to suspected leak areas and observing for bubbles, which indicate the presence of a leak. This method is particularly useful for detecting leaks in accessible areas of the system.
💡 Note: The bubble solution method is best used for detecting larger leaks. For smaller leaks, more sensitive detection methods may be required.

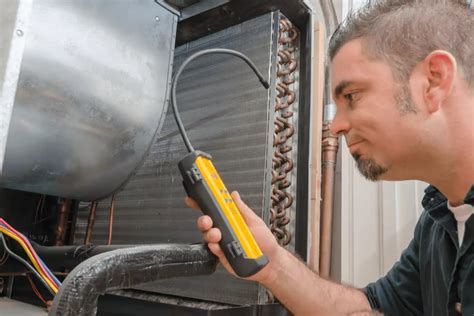

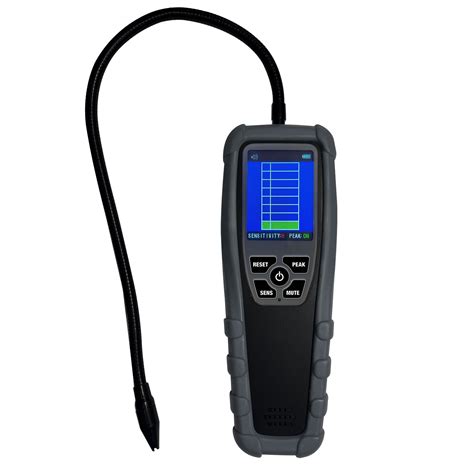

Electronic Leak Detectors
Electronic leak detectors are specialized tools designed to detect refrigerant leaks with high sensitivity. These devices use sensors to detect the presence of refrigerant gases and can identify leaks as small as 0.1 ounces per year. There are two main types of electronic leak detectors:
- Corona Discharge Detectors: These detectors use a high-voltage electrical field to ionize refrigerant molecules, creating a detectable current.
- Semiconductor Detectors: These detectors use a semiconductor sensor to detect the presence of refrigerant gases based on changes in electrical resistance.
Electronic leak detectors are highly effective for detecting both large and small leaks, making them a popular choice for professional HVAC technicians.
Ultrasonic Leak Detectors
Ultrasonic leak detectors use high-frequency sound waves to detect refrigerant leaks. These devices can identify leaks by listening for the ultrasonic noise generated by escaping refrigerant. Ultrasonic leak detectors are particularly useful for detecting leaks in noisy environments or where other detection methods may be ineffective.

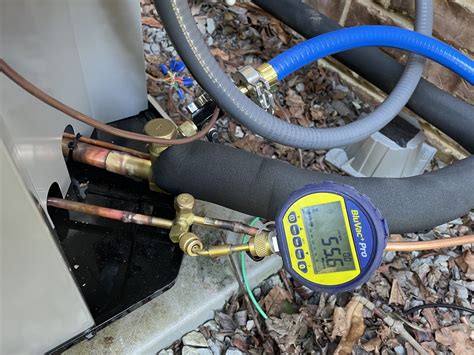

Nitrogen Pressure Testing
Nitrogen pressure testing involves pressurizing the HVAC system with nitrogen gas and monitoring for pressure drops, which indicate the presence of a leak. This method is effective for detecting leaks in systems that have been evacuated and are not currently in operation. Nitrogen pressure testing is often used in conjunction with other detection methods to ensure comprehensive leak detection.
Steps to Take After Detecting a Refrigerant Leak
Once a refrigerant leak has been detected, it is essential to take immediate action to repair the leak and restore the system's performance. Here are the steps to follow:
1. Isolate the System
Turn off the HVAC system and isolate the affected components to prevent further refrigerant loss and potential contamination of the environment.
2. Identify the Leak Source
Use the detection method that identified the leak to pinpoint its exact location. This may involve further inspection or testing to determine the cause of the leak.
3. Repair the Leak
Repair the leak using appropriate materials and techniques. This may involve replacing damaged components, tightening connections, or applying sealants. Ensure that the repair is thorough and that the system is properly tested to confirm that the leak has been resolved.
4. Evacuate and Recharge the System
After repairing the leak, evacuate the system to remove any remaining refrigerant and moisture. Recharge the system with the appropriate amount of refrigerant and test its performance to ensure that it is operating correctly.
5. Monitor the System
Regularly monitor the HVAC system for signs of future leaks and perform routine maintenance to prevent potential issues. This may include visual inspections, pressure testing, and the use of electronic leak detectors.
Common Refrigerants and Their Detection Methods
Different refrigerants require specific detection methods due to their unique properties. Here is a table outlining some common refrigerants and the recommended detection methods for each:
| Refrigerant | Detection Methods |
|---|---|
| R-22 | Electronic leak detectors, bubble solution, visual inspection |
| R-410A | Electronic leak detectors, ultrasonic leak detectors, nitrogen pressure testing |
| R-134a | Electronic leak detectors, bubble solution, visual inspection |
| R-404A | Electronic leak detectors, ultrasonic leak detectors, nitrogen pressure testing |
It is essential to use the appropriate detection method for the specific refrigerant in your HVAC system to ensure accurate and effective leak detection.
Preventing Refrigerant Leaks
Preventing refrigerant leaks is crucial for maintaining the efficiency and longevity of your HVAC system. Here are some tips to help prevent refrigerant leaks:
- Regular Maintenance: Schedule regular maintenance checks to inspect the system for signs of wear and tear, corrosion, or other potential issues.
- Proper Installation: Ensure that the HVAC system is installed correctly by a qualified professional to minimize the risk of leaks.
- Quality Components: Use high-quality components and materials that are resistant to corrosion and damage.
- Avoid Physical Damage: Protect the HVAC system from physical damage by keeping it clear of debris, avoiding impact, and ensuring proper ventilation.
By following these preventive measures, you can significantly reduce the risk of refrigerant leaks and ensure the optimal performance of your HVAC system.
Detecting refrigerant leaks is a critical aspect of HVAC system maintenance. By understanding the importance of leak detection, utilizing appropriate detection methods, and taking prompt action to repair leaks, you can ensure the efficiency, performance, and environmental safety of your HVAC system. Regular monitoring and preventive maintenance are essential for minimizing the risk of leaks and maintaining the longevity of your system.
