Define Servo System

In the realm of automation and control systems, the term Define Servo System often comes up. A servo system is a closed-loop control system that uses feedback to control the position, velocity, or other parameters of a mechanical system. These systems are integral to various applications, from robotics and CNC machines to automotive and aerospace industries. Understanding how to define a servo system involves delving into its components, working principles, and applications.

Table of Contents

Understanding Servo Systems

A servo system is essentially a feedback control system that adjusts the output based on the difference between the desired setpoint and the actual output. This adjustment is made possible through a feedback loop that continuously monitors the system's performance and makes necessary corrections.

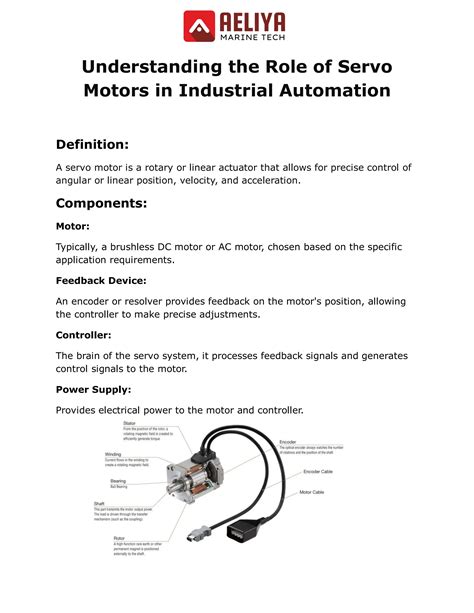

Components of a Servo System

To define servo system components, we need to look at the key elements that make up a typical servo system:

Controller: The brain of the servo system, responsible for processing input signals and generating control signals.
Actuator: The component that converts electrical signals into mechanical motion. Common actuators include motors and hydraulic systems.
Feedback Sensor: Devices like encoders, potentiometers, or tachometers that measure the actual output of the system and send this information back to the controller.
Power Supply: Provides the necessary electrical power to drive the actuator and other components.

Working Principles of a Servo System

The working principle of a servo system revolves around the concept of feedback control. Here’s a step-by-step breakdown of how a servo system operates:

Input Signal: The desired setpoint or reference signal is inputted into the controller.
Error Calculation: The controller compares the input signal with the feedback signal from the sensor to calculate the error.
Control Signal: Based on the error, the controller generates a control signal to adjust the actuator.
Actuator Response: The actuator responds to the control signal, moving the mechanical system towards the desired position or velocity.
Feedback: The feedback sensor measures the actual output and sends this information back to the controller.
Continuous Adjustment: The process repeats, with the controller continuously adjusting the control signal to minimize the error.

This continuous loop ensures that the system operates accurately and efficiently, maintaining the desired performance parameters.

Types of Servo Systems

Servo systems can be categorized based on their control variables and applications. Some of the common types include:

Position Control Servo Systems: These systems control the position of a mechanical component. They are widely used in robotics and CNC machines.
Velocity Control Servo Systems: These systems control the speed of a mechanical component. They are often used in conveyor belts and automotive applications.
Torque Control Servo Systems: These systems control the torque applied by a mechanical component. They are used in applications requiring precise force control, such as in industrial machinery.

Applications of Servo Systems

Servo systems find applications in a wide range of industries due to their precision and reliability. Some of the key applications include:

Robotics: Servo systems are used to control the movement of robotic arms and other mechanical components, enabling precise and repeatable motions.
CNC Machines: In computer numerical control (CNC) machines, servo systems control the movement of cutting tools, ensuring high precision and accuracy.
Automotive Industry: Servo systems are used in various automotive applications, such as power steering, anti-lock braking systems (ABS), and adaptive cruise control.
Aerospace Industry: In aerospace, servo systems are used to control the movement of aircraft components, such as flaps, rudders, and ailerons.
Consumer Electronics: Servo systems are also used in consumer electronics, such as in cameras for autofocus and in drones for stable flight.

Designing a Servo System

Designing a servo system involves several steps, from defining the requirements to implementing and testing the system. Here’s a detailed guide on how to design a servo system:

Step 1: Define Requirements

The first step in designing a servo system is to define the requirements. This includes specifying the control variables (position, velocity, torque), the desired accuracy, response time, and environmental conditions.

Step 2: Select Components

Based on the defined requirements, select the appropriate components for the servo system. This includes choosing the controller, actuator, feedback sensor, and power supply.

Step 3: System Modeling

Create a mathematical model of the servo system to understand its behavior and performance. This involves using differential equations to describe the dynamics of the system.

Step 4: Controller Design

Design the controller using control theory principles. This may involve using PID (Proportional-Integral-Derivative) control, state-space control, or other advanced control techniques.

Step 5: Simulation and Testing

Simulate the servo system using software tools to verify its performance. Conduct physical testing to ensure that the system meets the defined requirements.

🔍 Note: It is crucial to validate the system through both simulation and physical testing to ensure reliability and accuracy.

Challenges in Servo System Design

Designing a servo system comes with several challenges that need to be addressed to ensure optimal performance. Some of the common challenges include:

Nonlinearities: Many mechanical systems exhibit nonlinear behavior, which can complicate the design of the controller.
Disturbances: External disturbances can affect the performance of the servo system, requiring robust control strategies.
Parameter Variations: Changes in system parameters, such as friction and inertia, can affect the performance of the servo system.
Sensor Noise: Noise in the feedback signal can degrade the performance of the servo system, requiring effective filtering techniques.

Advanced Servo System Techniques

To overcome the challenges in servo system design, advanced techniques are often employed. Some of these techniques include:

Adaptive Control: Adaptive control techniques adjust the controller parameters in real-time to compensate for changes in system dynamics.
Robust Control: Robust control techniques ensure that the servo system performs well despite uncertainties and disturbances.
Model Predictive Control (MPC): MPC techniques use a model of the system to predict future behavior and optimize the control actions.
Fuzzy Logic Control: Fuzzy logic control techniques use linguistic rules to handle uncertainties and nonlinearities in the system.

Future Trends in Servo Systems

The field of servo systems is continually evolving, driven by advancements in technology and increasing demands for precision and efficiency. Some of the future trends in servo systems include:

Integration with IoT: Servo systems are being integrated with the Internet of Things (IoT) to enable remote monitoring and control.
Machine Learning: Machine learning techniques are being used to improve the performance and adaptability of servo systems.
Energy Efficiency: There is a growing focus on designing energy-efficient servo systems to reduce power consumption and environmental impact.
Miniaturization: Advances in microelectronics are enabling the development of smaller and more compact servo systems.

These trends are shaping the future of servo systems, making them more intelligent, efficient, and versatile.

In the rapidly evolving landscape of automation and control, define servo system is a critical concept that underpins many modern technologies. From robotics and manufacturing to aerospace and consumer electronics, servo systems play a pivotal role in ensuring precision, reliability, and efficiency. By understanding the components, working principles, and applications of servo systems, we can appreciate their significance and potential in various industries. As technology continues to advance, the future of servo systems looks promising, with innovations in IoT, machine learning, and energy efficiency paving the way for even more sophisticated and capable systems.
