In the realm of microscopy, the Dark Field Microscope stands out as a powerful tool for observing specimens that are nearly transparent or have low contrast. This specialized microscope uses oblique illumination to create a dark background, making the specimen appear bright against it. This technique is particularly useful in various fields, including biology, materials science, and forensic analysis.
Understanding the Dark Field Microscope

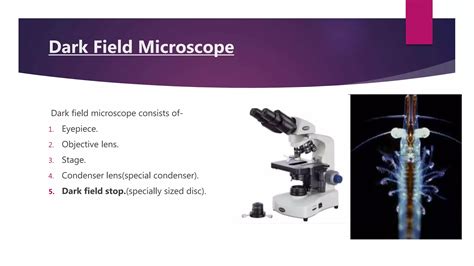

A Dark Field Microscope operates on the principle of illuminating the specimen with light that is directed at an angle, rather than directly from below. This setup creates a dark background, allowing the specimen to scatter light and appear bright. The key components of a Dark Field Microscope include:
- Light Source: Typically a halogen or LED lamp.
- Condenser: A specialized condenser that directs light at an oblique angle.
- Objective Lens: High-quality lenses that magnify the specimen.
- Stage: The platform where the specimen is placed.
- Eyepiece: The lens through which the observer views the specimen.
The oblique illumination is achieved by using a special condenser or a dark field stop, which blocks the direct light from reaching the objective lens. This setup ensures that only the light scattered by the specimen enters the objective lens, creating a high-contrast image.
Applications of the Dark Field Microscope
The Dark Field Microscope is widely used in various scientific and industrial applications due to its ability to enhance the visibility of transparent or low-contrast specimens. Some of the key applications include:
- Biological Studies: Observing living cells, bacteria, and other microorganisms that are nearly transparent.
- Materials Science: Examining the surface features of materials such as metals, ceramics, and polymers.
- Forensic Analysis: Analyzing trace evidence such as fibers, hairs, and other microscopic particles.
- Geological Studies: Investigating the structure and composition of minerals and rocks.
In biological studies, the Dark Field Microscope is particularly useful for observing living specimens without the need for staining. This non-invasive technique allows researchers to study the dynamic behavior of cells and microorganisms in real-time.
Setting Up a Dark Field Microscope
Setting up a Dark Field Microscope involves several steps to ensure optimal performance. Here is a detailed guide to help you get started:
Step 1: Prepare the Specimen
Prepare your specimen on a clean glass slide. Ensure that the specimen is thinly spread to allow for better illumination and contrast. For biological specimens, you may need to use a coverslip to keep the specimen in place.
Step 2: Adjust the Light Source
Turn on the light source and adjust the intensity to a suitable level. The light should be bright enough to illuminate the specimen but not so bright that it causes glare or discomfort.
Step 3: Position the Condenser
Adjust the condenser to the correct position. For a Dark Field Microscope, the condenser should be lowered to its lowest position to create the oblique illumination. Ensure that the dark field stop is properly aligned to block the direct light.
Step 4: Focus the Objective Lens
Place the slide on the stage and secure it with the stage clips. Use the coarse focus knob to bring the specimen into rough focus. Then, use the fine focus knob to achieve a sharp image. Adjust the objective lens as needed to achieve the desired magnification.
Step 5: Observe the Specimen
Look through the eyepiece and observe the specimen. The specimen should appear bright against a dark background. Adjust the light intensity and focus as needed to achieve the best possible image.
🔍 Note: It may take some practice to achieve the optimal setup for a Dark Field Microscope. Be patient and make small adjustments to the light source, condenser, and objective lens until you achieve the desired results.

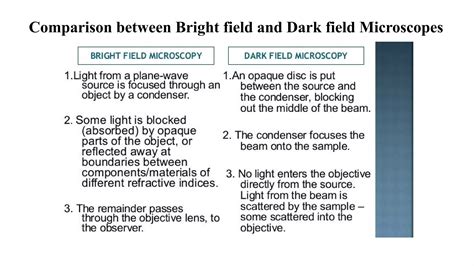

Comparing Dark Field Microscopy with Other Techniques
While the Dark Field Microscope is a valuable tool, it is essential to understand how it compares to other microscopy techniques. Here is a comparison of Dark Field Microscopy with Bright Field and Phase Contrast Microscopy:
| Technique | Illumination | Background | Best For |
|---|---|---|---|
| Bright Field Microscopy | Direct illumination | Bright | Stained specimens, high-contrast samples |
| Dark Field Microscopy | Oblique illumination | Dark | Transparent or low-contrast specimens |
| Phase Contrast Microscopy | Phase shifting | Bright | Living cells, unstained specimens |
Each technique has its strengths and is suited to different types of specimens. The choice of microscopy technique depends on the specific requirements of the study and the characteristics of the specimen being observed.
Advantages and Limitations of Dark Field Microscopy
The Dark Field Microscope offers several advantages, making it a popular choice for various applications. However, it also has some limitations that researchers should be aware of.
Advantages
- High Contrast: The dark background enhances the visibility of transparent or low-contrast specimens.
- Non-Invasive: Suitable for observing living specimens without the need for staining.
- Real-Time Observation: Allows for dynamic studies of cellular and microbial behavior.
Limitations
- Limited Depth of Field: The oblique illumination can limit the depth of field, making it challenging to observe thick specimens.
- Complex Setup: Requires precise alignment of the condenser and dark field stop, which can be time-consuming.
- Artifacts: The technique can sometimes produce artifacts, such as halos or glare, which can interfere with the interpretation of the image.
Despite these limitations, the Dark Field Microscope remains a valuable tool for researchers and scientists in various fields. Its ability to enhance the visibility of transparent specimens makes it an indispensable instrument in many laboratories.
In conclusion, the Dark Field Microscope is a specialized tool that offers unique advantages for observing transparent or low-contrast specimens. Its oblique illumination technique creates a high-contrast image, making it ideal for biological studies, materials science, forensic analysis, and geological investigations. While it has some limitations, such as a limited depth of field and complex setup, the benefits of using a Dark Field Microscope often outweigh the drawbacks. Researchers and scientists continue to rely on this powerful tool to gain insights into the microscopic world, contributing to advancements in various scientific disciplines.
