Cylinder Head Repair

Engaging in cylinder head repair can be a daunting task, but with the right knowledge and tools, it can be a rewarding experience. Whether you're a seasoned mechanic or a DIY enthusiast, understanding the intricacies of cylinder head repair is crucial for maintaining the health of your engine. This guide will walk you through the essential steps and considerations for a successful cylinder head repair.

Table of Contents

Understanding the Cylinder Head

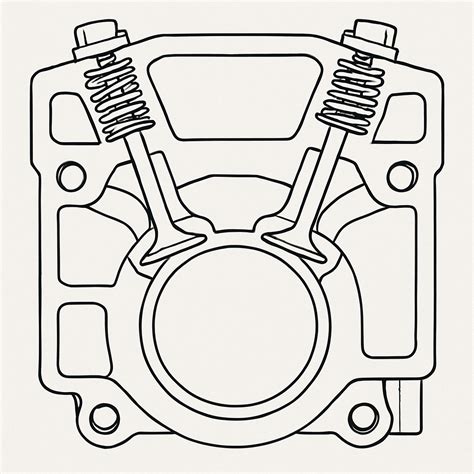

The cylinder head is a critical component of an engine, housing the valves, spark plugs, and fuel injectors. It plays a vital role in the combustion process, ensuring that the engine runs smoothly and efficiently. Over time, the cylinder head can develop issues such as cracks, warping, or worn-out valve seats, which can compromise engine performance.

Common Issues with Cylinder Heads

Before diving into the repair process, it’s important to identify the common issues that can affect cylinder heads. Some of the most frequent problems include:

Cracks: Cracks in the cylinder head can occur due to overheating, excessive pressure, or manufacturing defects. These cracks can lead to coolant leaks and reduced engine performance.
Warping: Warping happens when the cylinder head becomes distorted, often due to overheating. This can cause poor sealing and lead to compression loss.
Worn Valve Seats: Over time, the valve seats can wear out, leading to poor sealing and reduced engine efficiency.
Leaking Head Gasket: A faulty head gasket can cause coolant and oil to mix, leading to engine overheating and potential damage.

Tools and Materials Needed for Cylinder Head Repair

To perform a cylinder head repair, you will need a variety of tools and materials. Here is a list of essential items:

Socket set
Wrench set
Screwdriver set
Pry bar
Torque wrench
Feeler gauges
Valve spring compressor
Cylinder head gasket
Valve seals
Valve guide seals
Valve spring
Valve retainers
Valve stem seals
Cylinder head bolts
Coolant
Engine oil

Step-by-Step Guide to Cylinder Head Repair

Performing a cylinder head repair involves several steps. Follow this guide to ensure a thorough and effective repair process.

Preparation

Before you begin, make sure to gather all the necessary tools and materials. It’s also important to have a clean and well-lit workspace. Additionally, ensure that the engine is cool to avoid any burns or injuries.

Removing the Cylinder Head

To access the cylinder head, you will need to remove several components. Follow these steps:

Disconnect the negative battery cable to prevent any electrical shorts.
Remove the air intake system, including the air filter and intake manifold.
Drain the coolant from the engine to prevent spills and contamination.
Remove the spark plugs and fuel injectors.
Disconnect the exhaust manifold.
Remove the cylinder head bolts using a socket wrench.
Gently tap the cylinder head with a rubber mallet to break the seal, then lift it off the engine block.

Inspecting the Cylinder Head

Once the cylinder head is removed, inspect it for any signs of damage. Look for cracks, warping, and worn-out valve seats. Use a straightedge and feeler gauges to check for warping. If the cylinder head is severely damaged, it may need to be replaced.

Repairing the Cylinder Head

If the cylinder head is repairable, follow these steps to fix any issues:

Clean the cylinder head thoroughly to remove any dirt, debris, or old gasket material.

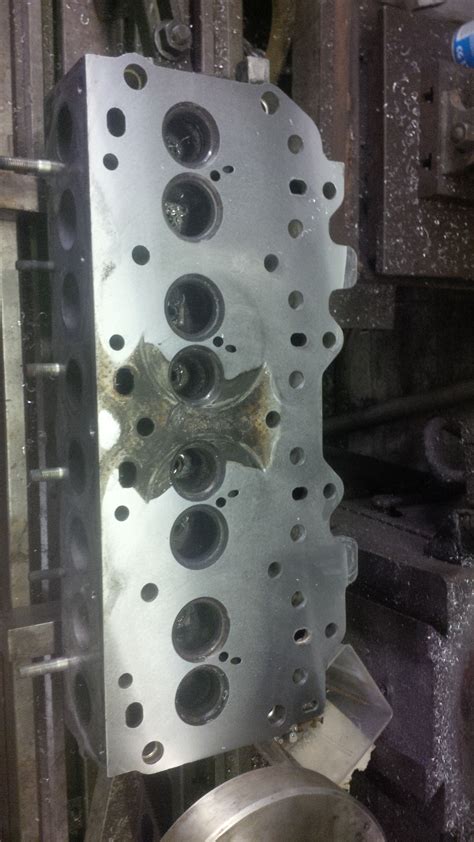

If there are cracks, use a welding kit to repair them. Ensure the welds are smooth and even.
If the valve seats are worn, use a valve seat cutter to resurface them. Follow the manufacturer’s instructions for the correct cutting depth.
Replace any damaged valve guides, seals, and springs.
Check the valve clearance using feeler gauges and adjust as necessary.

Reassembling the Cylinder Head

After repairing the cylinder head, it’s time to reassemble it. Follow these steps:

Apply a thin layer of sealant to the new cylinder head gasket.
Place the gasket on the engine block, ensuring it is properly aligned.
Carefully lower the cylinder head onto the gasket and align the bolt holes.

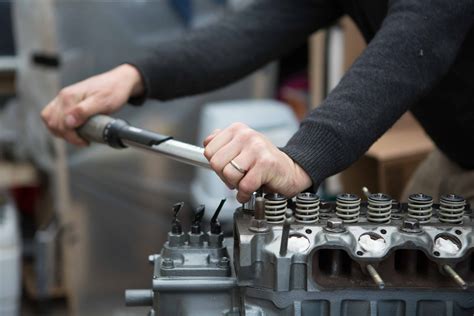

Install the cylinder head bolts and tighten them in a crisscross pattern to ensure even pressure. Use a torque wrench to achieve the correct torque specifications.
Reinstall the exhaust manifold, fuel injectors, and spark plugs.
Refill the coolant and engine oil to the appropriate levels.
Reconnect the air intake system and negative battery cable.

🛠️ Note: Always refer to your vehicle's service manual for specific torque specifications and procedures.

Testing and Final Checks

After completing the cylinder head repair, it’s crucial to test the engine to ensure everything is working correctly. Start the engine and let it run for a few minutes, checking for any leaks or unusual noises. Monitor the coolant and oil levels to ensure they remain stable.

Drive the vehicle for a short distance to allow the engine to reach operating temperature. Check for any signs of overheating or performance issues. If everything seems normal, you can consider the cylinder head repair complete.

If you encounter any problems, such as coolant leaks or reduced engine performance, you may need to revisit the repair process and check for any missed steps or issues.

🛠️ Note: Always allow the engine to cool down before performing any inspections or adjustments.

Maintenance Tips for Cylinder Heads

To prevent future issues with your cylinder head, follow these maintenance tips:

Regularly check the coolant and oil levels to ensure they are within the recommended range.
Inspect the cylinder head for any signs of leaks or damage during routine maintenance.
Replace the cylinder head gasket and other related components as recommended by the manufacturer.
Avoid overheating the engine by ensuring proper cooling system maintenance.
Use high-quality coolant and engine oil to protect the cylinder head and other engine components.

By following these maintenance tips, you can extend the lifespan of your cylinder head and avoid costly repairs in the future.

Cylinder head repair is a complex but essential task for maintaining engine health. By understanding the common issues, gathering the right tools, and following a step-by-step guide, you can successfully repair your cylinder head and ensure your engine runs smoothly. Regular maintenance and inspections will help prevent future problems and keep your engine in top condition.
