Current Divider Equation

Understanding the Current Divider Equation is fundamental for anyone working with electrical circuits. This equation helps determine the current flowing through different branches of a parallel circuit, which is crucial for designing and analyzing electronic systems. Whether you're a student, an engineer, or a hobbyist, grasping the Current Divider Equation will enhance your ability to work with electrical components effectively.

Table of Contents

What is the Current Divider Equation?

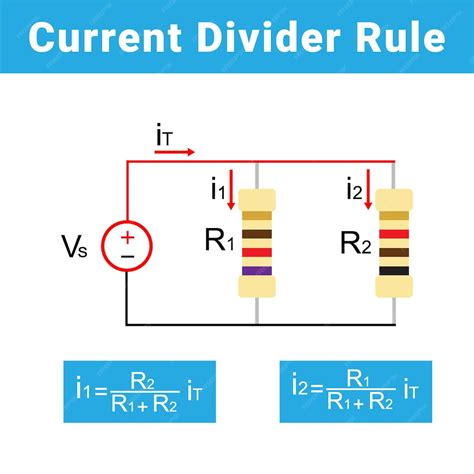

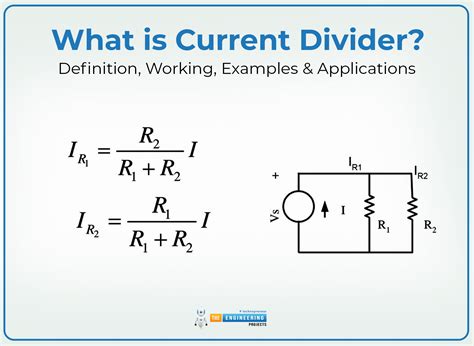

The Current Divider Equation is a formula used to calculate the current through a specific branch in a parallel circuit. It is derived from Ohm's Law and Kirchhoff's Current Law (KCL). The equation is particularly useful when dealing with circuits that have multiple resistors in parallel.

The basic form of the Current Divider Equation is:

I_x = I_T * (R_eq / R_x)

Where:

I_x is the current through the resistor R_x.
I_T is the total current entering the parallel network.
R_eq is the equivalent resistance of the parallel network.
R_x is the resistance of the branch in question.

Derivation of the Current Divider Equation

To understand how the Current Divider Equation is derived, let's break down the steps involved:

1. Identify the Total Current: The total current I_T entering the parallel network is the sum of the currents through each branch.

2. Calculate the Equivalent Resistance: The equivalent resistance R_eq of the parallel network can be found using the formula:

1/R_eq = 1/R₁ + 1/R₂ + ... + 1/R_n

3. Apply Ohm's Law: According to Ohm's Law, the voltage V across each branch in a parallel circuit is the same. Therefore, the current through each resistor can be calculated as:

I_x = V / R_x

4. Combine the Equations: Using Kirchhoff's Current Law, we know that the total current I_T is the sum of the currents through each branch. By substituting the expressions for the currents and the equivalent resistance, we arrive at the Current Divider Equation.

Applications of the Current Divider Equation

The Current Divider Equation has numerous applications in electrical engineering and electronics. Some of the key areas where it is commonly used include:

Designing Parallel Circuits: Engineers use the Current Divider Equation to design circuits with specific current requirements for different branches.
Analyzing Electronic Systems: It helps in analyzing the behavior of electronic systems by determining the current distribution in parallel circuits.
Troubleshooting: The equation is useful for diagnosing issues in circuits by calculating the expected current through each branch and comparing it with the measured values.
Power Distribution: In power systems, the Current Divider Equation is used to ensure that the current is distributed evenly across different branches to prevent overloading.

Example Calculation

Let's go through an example to illustrate how the Current Divider Equation is applied. Consider a parallel circuit with three resistors: R₁ = 10 Ω, R₂ = 20 Ω, and R₃ = 30 Ω. The total current entering the network is I_T = 5 A.

1. Calculate the Equivalent Resistance:

1/R_eq = 1/10 + 1/20 + 1/30 = 0.1 + 0.05 + 0.0333 = 0.1833

R_eq = 1 / 0.1833 ≈ 5.45 Ω

2. Apply the Current Divider Equation:

For R₁:

I₁ = I_T * (R_eq / R₁) = 5 * (5.45 / 10) ≈ 2.73 A

For R₂:

I₂ = I_T * (R_eq / R₂) = 5 * (5.45 / 20) ≈ 1.36 A

For R₃:

I₃ = I_T * (R_eq / R₃) = 5 * (5.45 / 30) ≈ 0.91 A

Note that the sum of the currents through each branch should equal the total current:

I₁ + I₂ + I₃ = 2.73 + 1.36 + 0.91 = 5 A

💡 Note: Ensure that the units are consistent when performing calculations. The total current and the currents through each branch should be in the same units (e.g., amperes).

Special Cases

There are a few special cases where the Current Divider Equation can be simplified or has specific considerations:

Equal Resistors: If all resistors in the parallel network are equal, the current through each branch will be the same. This simplifies the calculation significantly.
Open Circuit: If one of the branches is open (infinite resistance), the current through that branch will be zero, and the total current will flow through the remaining branches.
Short Circuit: If one of the branches is shorted (zero resistance), the current through that branch will be infinite, which is not practical in real circuits.

Practical Considerations

When applying the Current Divider Equation in practical scenarios, there are several factors to consider:

Tolerance of Resistors: Real resistors have tolerances, which means their actual resistance values may vary slightly from their nominal values. This can affect the accuracy of the current calculations.
Temperature Effects: The resistance of a component can change with temperature, which can alter the current distribution in the circuit.
Non-Linear Components: If the circuit includes non-linear components (e.g., diodes, transistors), the Current Divider Equation may not apply directly, and more complex analysis methods may be required.

To illustrate the practical application of the Current Divider Equation, consider a circuit with two resistors in parallel: R₁ = 100 Ω and R₂ = 200 Ω. The total current entering the network is I_T = 1 A.

1. Calculate the Equivalent Resistance:

1/R_eq = 1/100 + 1/200 = 0.01 + 0.005 = 0.015

R_eq = 1 / 0.015 ≈ 66.67 Ω

2. Apply the Current Divider Equation:

For R₁:

I₁ = I_T * (R_eq / R₁) = 1 * (66.67 / 100) ≈ 0.67 A

For R₂:

I₂ = I_T * (R_eq / R₂) = 1 * (66.67 / 200) ≈ 0.33 A

Note that the sum of the currents through each branch should equal the total current:

I₁ + I₂ = 0.67 + 0.33 = 1 A

💡 Note: Always verify the calculations by checking if the sum of the branch currents equals the total current entering the network.

Advanced Topics

For more complex circuits, the Current Divider Equation can be extended to include additional factors such as reactive components (inductors and capacitors) and AC circuits. In these cases, the equation involves complex numbers and impedance instead of resistance.

For example, in an AC circuit with resistors and inductors in parallel, the impedance Z replaces the resistance R in the Current Divider Equation. The impedance is given by:

Z = R + jX

Where R is the resistance and X is the reactance (for inductors, X = ωL; for capacitors, X = 1/ωC).

In such cases, the Current Divider Equation becomes:

I_x = I_T * (Z_eq / Z_x)

Where Z_eq is the equivalent impedance of the parallel network, and Z_x is the impedance of the branch in question.

This extension allows the Current Divider Equation to be applied to a wide range of circuits, including those with both resistive and reactive components.

To further illustrate, consider a parallel circuit with a resistor R₁ = 10 Ω and an inductor L = 0.1 H at a frequency f = 50 Hz. The total current entering the network is I_T = 2 A.

1. Calculate the Impedance of the Inductor:

X_L = ωL = 2πfL = 2π * 50 * 0.1 = 31.42 Ω

2. Calculate the Equivalent Impedance:

1/Z_eq = 1/R₁ + 1/jX_L = 1/10 + 1/j31.42

Z_eq ≈ 9.42 - j2.97 Ω

3. Apply the Current Divider Equation:

For the resistor R₁:

I₁ = I_T * (Z_eq / R₁) = 2 * (9.42 - j2.97) / 10 ≈ 1.88 - j0.60 A

For the inductor:

I_L = I_T * (Z_eq / jX_L) = 2 * (9.42 - j2.97) / j31.42 ≈ 0.12 + j0.60 A

Note that the sum of the currents through each branch should equal the total current:

I₁ + I_L = (1.88 - j0.60) + (0.12 + j0.60) = 2 A

💡 Note: When dealing with complex numbers, ensure that the real and imaginary parts are handled separately to maintain accuracy.

Conclusion

The Current Divider Equation is a powerful tool for analyzing parallel circuits. It allows engineers and students to determine the current through specific branches, which is crucial for designing and troubleshooting electronic systems. By understanding the derivation, applications, and practical considerations of the Current Divider Equation, you can effectively apply it to a wide range of circuits, from simple resistive networks to complex AC circuits with reactive components. Whether you’re working on a school project or a professional design, mastering the Current Divider Equation will enhance your ability to work with electrical circuits efficiently.
