Cubic Crystal System

The study of crystal structures is a fascinating field within materials science and mineralogy, offering insights into the properties and behaviors of various materials. One of the most intriguing and widely studied crystal systems is the Cubic Crystal System. This system is characterized by its three equal axes that intersect at right angles, forming a cube. The cubic crystal system is fundamental in understanding the structure of many minerals, metals, and synthetic materials. This post delves into the intricacies of the cubic crystal system, its types, properties, and applications.

Table of Contents

Understanding the Cubic Crystal System

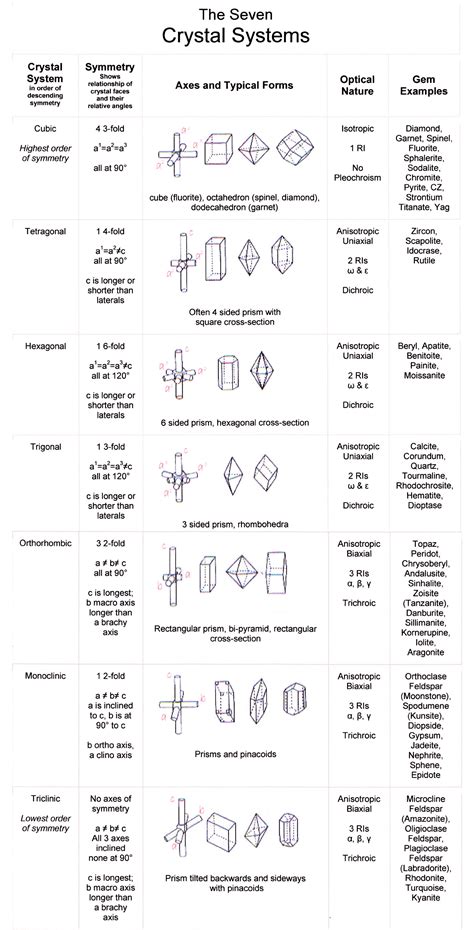

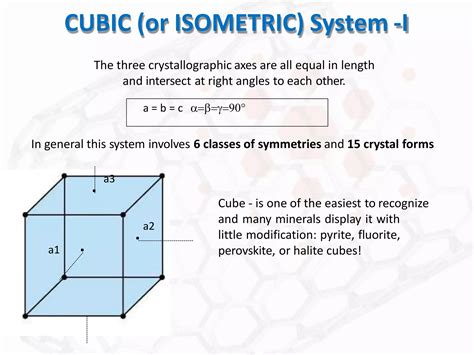

The cubic crystal system is one of the seven crystal systems in crystallography. It is defined by its three equal axes (a = b = c) and the angles between them being 90 degrees. This symmetry results in a highly ordered and predictable structure, which is crucial for various scientific and industrial applications.

Types of Cubic Crystal Structures

The cubic crystal system can be further classified into three main types based on the arrangement of atoms within the unit cell:

Simple Cubic (SC): In this structure, atoms are located at the corners of the cube. Each atom is shared by eight adjacent cubes, resulting in a low packing efficiency of 52.4%.
Body-Centered Cubic (BCC): This structure has an additional atom at the center of the cube, in addition to the atoms at the corners. The packing efficiency is higher, at 68%.
Face-Centered Cubic (FCC): In this structure, atoms are located at the corners and the centers of all the faces of the cube. The packing efficiency is the highest among the three, at 74%.

Properties of Cubic Crystal Structures

The properties of materials with cubic crystal structures are influenced by their atomic arrangements. Some key properties include:

Mechanical Properties: Materials with cubic crystal structures often exhibit high strength and ductility. For example, metals like aluminum and copper, which have FCC structures, are known for their malleability and ductility.
Electrical Properties: Many metals with cubic crystal structures are excellent conductors of electricity. The BCC structure of iron, for instance, contributes to its high electrical conductivity.
Thermal Properties: The thermal conductivity of materials with cubic crystal structures can be high. For example, diamond, which has a cubic crystal structure, is an excellent thermal conductor.

Applications of Cubic Crystal Structures

The unique properties of materials with cubic crystal structures make them suitable for a wide range of applications. Some notable examples include:

Metallurgy: Many metals, such as iron, aluminum, and copper, have cubic crystal structures. These metals are used in construction, automotive, and aerospace industries due to their strength and ductility.
Electronics: Semiconductors like silicon and germanium, which have cubic crystal structures, are essential for the manufacture of electronic devices. Their properties allow for the efficient conduction of electricity and the creation of transistors and integrated circuits.
Optics: Materials like diamond and cubic zirconia, which have cubic crystal structures, are used in optics due to their high refractive indices and transparency.

Examples of Minerals with Cubic Crystal Structures

Several minerals exhibit cubic crystal structures, each with unique properties and applications. Some notable examples include:

Diamond: Diamond is a form of carbon with a cubic crystal structure. It is renowned for its hardness, thermal conductivity, and optical properties.
Halite: Halite, or rock salt, has a cubic crystal structure and is composed of sodium chloride. It is used as a seasoning and in various industrial processes.
Galena: Galena is a lead sulfide mineral with a cubic crystal structure. It is a primary ore of lead and is also used in the production of lead-acid batteries.

Crystal Structure and Material Properties

The relationship between crystal structure and material properties is a critical area of study in materials science. Understanding how the arrangement of atoms in a cubic crystal system affects properties like strength, conductivity, and optical behavior is essential for developing new materials with tailored properties.

For example, the FCC structure of aluminum contributes to its high ductility and corrosion resistance, making it ideal for use in aircraft and automotive industries. Similarly, the BCC structure of iron provides it with high strength and magnetic properties, which are crucial for its use in construction and electrical applications.

Advanced Techniques for Studying Cubic Crystal Structures

Modern techniques have revolutionized the study of cubic crystal structures, allowing scientists to gain deeper insights into their properties and behaviors. Some of these techniques include:

X-ray Diffraction (XRD): XRD is a powerful tool for determining the crystal structure of materials. By analyzing the diffraction patterns produced when X-rays interact with a crystal, scientists can deduce the arrangement of atoms within the unit cell.
Electron Microscopy: Techniques like Transmission Electron Microscopy (TEM) and Scanning Electron Microscopy (SEM) provide high-resolution images of crystal structures, allowing for the detailed study of defects, grain boundaries, and other microstructural features.
Computational Modeling: Advanced computational methods, such as Density Functional Theory (DFT) and Molecular Dynamics (MD), enable the simulation of crystal structures and the prediction of their properties. These methods are invaluable for designing new materials with specific characteristics.

Challenges and Future Directions

Despite the significant advancements in the study of cubic crystal structures, several challenges remain. One of the primary challenges is the complexity of predicting the properties of materials with different crystal structures. While computational methods have made significant strides, there is still a need for more accurate and efficient models.

Another challenge is the synthesis of materials with desired crystal structures. Controlling the growth and arrangement of atoms to form specific crystal structures is a complex process that requires precise control over temperature, pressure, and other environmental factors.

Future research in this field is likely to focus on developing new materials with tailored properties for specific applications. This includes the design of materials with enhanced mechanical, electrical, and optical properties, as well as the exploration of new crystal structures that could offer unique advantages.

Additionally, the integration of advanced techniques like machine learning and artificial intelligence could revolutionize the study of cubic crystal structures. These technologies could enable the rapid screening of potential materials and the prediction of their properties, accelerating the development of new materials.

🔍 Note: The study of cubic crystal structures is an interdisciplinary field that draws on knowledge from materials science, mineralogy, physics, and chemistry. Collaboration across these disciplines is essential for advancing our understanding and developing new materials.

In conclusion, the cubic crystal system is a fundamental aspect of materials science and mineralogy, offering insights into the properties and behaviors of various materials. From metals and semiconductors to minerals and synthetic materials, the cubic crystal system plays a crucial role in shaping the world around us. Understanding the intricacies of this system and its applications is essential for developing new materials with tailored properties and advancing various industries. The future of this field holds great promise, with ongoing research and technological advancements paving the way for exciting discoveries and innovations.
