Cross Network Cable

In the realm of networking, the Cross Network Cable plays a crucial role in connecting devices within a local area network (LAN). This type of cable is specifically designed to link two devices of the same type, such as two computers or two switches, directly to each other. Understanding the intricacies of a Cross Network Cable is essential for anyone involved in network setup and troubleshooting.

Table of Contents

What is a Cross Network Cable?

A Cross Network Cable is a type of Ethernet cable used to connect similar devices directly. Unlike straight-through cables, which are used to connect dissimilar devices (e.g., a computer to a switch), a Cross Network Cable has its wires crossed at the connector ends. This crossover allows for direct communication between two devices without the need for a hub or switch.

Types of Cross Network Cables

There are several types of Cross Network Cables, each designed for specific networking needs:

Crossover Ethernet Cable (Cat5e, Cat6, Cat7): These are the most common types, used for connecting devices like computers, switches, and routers.
Crossover Fiber Optic Cable: Used for high-speed data transmission over long distances, often in data centers and enterprise networks.
Crossover Coaxial Cable: Used in older networks for connecting devices like modems and routers.

How to Make a Cross Network Cable

Creating a Cross Network Cable involves a few simple steps. Here’s a guide to help you make one:

Gather Materials: You will need an Ethernet cable (Cat5e, Cat6, or Cat7), a cable cutter, a cable crimper, and an RJ-45 connector.
Strip the Cable: Cut the cable to the desired length and strip about 2 inches of the outer jacket from both ends.
Untwist the Wires: Untwist the pairs of wires inside the cable. You will have eight wires in total, usually color-coded as follows: blue, blue/white, orange, orange/white, green, green/white, brown, and brown/white.

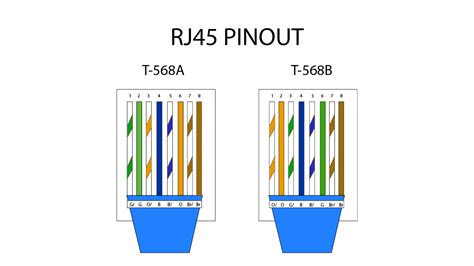

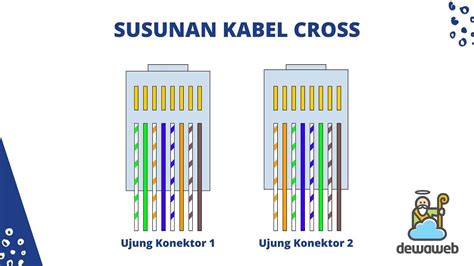

Arrange the Wires: For one end of the cable, arrange the wires in the following order: white/orange, orange, white/green, blue, white/blue, green, white/brown, brown. For the other end, arrange the wires in this order: white/green, green, white/orange, blue, white/blue, orange, white/brown, brown.
Insert into Connector: Insert the wires into the RJ-45 connector, ensuring they are fully seated. The wires should be flush with the end of the connector.
Crimp the Connector: Use the cable crimper to secure the connector to the cable. Make sure the crimp is tight and secure.
Test the Cable: Use a cable tester to ensure the cable is functioning correctly.

🔧 Note: Always ensure that the wires are properly seated in the connector to avoid connectivity issues.

Applications of Cross Network Cables

Cross Network Cables are used in various networking scenarios. Some of the most common applications include:

Direct Computer-to-Computer Connection: Useful for file sharing, gaming, or direct communication between two computers.
Switch-to-Switch Connection: Allows for the expansion of a network by connecting multiple switches directly.
Router-to-Router Connection: Enables the creation of a redundant network or the extension of a network.
Network Troubleshooting: Useful for diagnosing network issues by directly connecting devices to isolate problems.

Advantages and Disadvantages of Cross Network Cables

Like any networking tool, Cross Network Cables have their advantages and disadvantages:

Advantages

Cost-Effective: Generally cheaper than buying pre-made cables.
Customizable Lengths: You can make the cable to the exact length you need.
Direct Connection: Allows for direct communication between devices without additional hardware.

Disadvantages

Complexity: Requires some technical knowledge to create and troubleshoot.
Time-Consuming: Making a Cross Network Cable can be time-consuming, especially for beginners.
Reliability: Homemade cables may not be as reliable as professionally made ones.

Troubleshooting Cross Network Cables

If your Cross Network Cable is not working as expected, here are some troubleshooting steps to follow:

Check Connections: Ensure that the cable is properly connected to both devices.
Inspect the Cable: Look for any visible damage to the cable or connectors.
Test with a Different Cable: Use a different cable to see if the issue persists.
Use a Cable Tester: A cable tester can help identify any faults in the cable.
Verify Wiring: Double-check the wiring to ensure it follows the correct crossover pattern.

🛠️ Note: Always ensure that the devices you are connecting are compatible and configured correctly.

Future of Cross Network Cables

With the advancement of networking technologies, the role of Cross Network Cables is evolving. Modern networks often use auto-MDIX (Medium Dependent Interface Crossover) switches, which automatically detect and configure the correct wiring for direct connections. This reduces the need for Cross Network Cables in many scenarios. However, they remain essential for specific applications and troubleshooting.

As networks become more complex and integrated, the importance of understanding and using Cross Network Cables effectively cannot be overstated. Whether you are setting up a small home network or managing a large enterprise network, knowing how to work with these cables can save time and ensure reliable connectivity.

In summary, Cross Network Cables are a fundamental tool in networking, offering a direct and cost-effective way to connect similar devices. Understanding their types, applications, and troubleshooting techniques can greatly enhance your networking skills and ensure smooth network operations.
