In the realm of mechanical engineering, the Crank and Slider mechanism stands out as a fundamental and versatile component. This mechanism is widely used in various applications, from simple toys to complex machinery. Understanding the principles and applications of the Crank and Slider mechanism can provide valuable insights into the design and functionality of many mechanical systems.

Understanding the Crank and Slider Mechanism

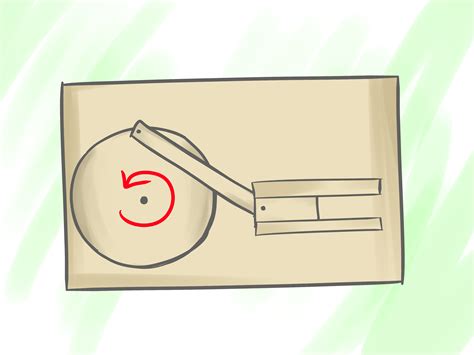

The Crank and Slider mechanism is a type of mechanical linkage that converts rotational motion into linear motion, or vice versa. It consists of three main components:

  • A crank, which is a rotating arm.
  • A slider, which moves in a linear path.
  • A connecting rod, which links the crank to the slider.

The crank rotates around a fixed axis, and the connecting rod transfers this rotational motion to the slider, causing it to move back and forth in a straight line. This mechanism is often used in engines, pumps, and other machinery where linear motion is required.

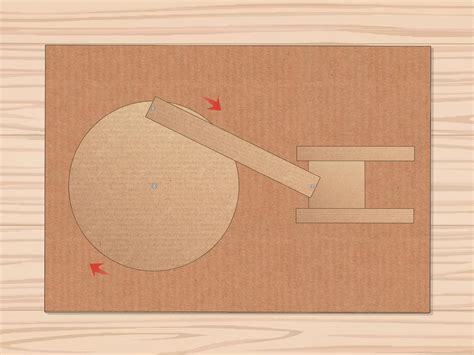

Components of the Crank and Slider Mechanism

The Crank and Slider mechanism is composed of several key components, each playing a crucial role in its operation:

Crank

The crank is the rotating part of the mechanism. It is typically a rigid arm that rotates around a fixed pivot point. The crank's rotation is the driving force that initiates the motion of the entire mechanism.

Slider

The slider is the component that moves in a linear path. It is usually a block or a piston that slides along a guide or a track. The slider's movement is directly influenced by the rotation of the crank and the length of the connecting rod.

Connecting Rod

The connecting rod is the link between the crank and the slider. It transfers the rotational motion of the crank into the linear motion of the slider. The length of the connecting rod can affect the stroke length and the overall efficiency of the mechanism.

Applications of the Crank and Slider Mechanism

The Crank and Slider mechanism is used in a wide range of applications due to its ability to convert rotational motion into linear motion. Some of the most common applications include:

Internal Combustion Engines

In internal combustion engines, the Crank and Slider mechanism is used to convert the linear motion of the pistons into rotational motion of the crankshaft. This is achieved through the connecting rods, which link the pistons to the crankshaft.

Pumps and Compressors

Pumps and compressors often use the Crank and Slider mechanism to convert rotational motion into linear motion, which is then used to move fluids or gases. The slider in this case is typically a piston that moves back and forth within a cylinder.

Machine Tools

In machine tools, the Crank and Slider mechanism is used to control the movement of cutting tools. The linear motion of the slider can be precisely controlled to achieve accurate cutting and shaping of materials.

Toys and Games

Even in simple toys and games, the Crank and Slider mechanism can be found. For example, in a crank-operated toy car, the rotation of the crank is converted into the linear motion of the wheels, causing the car to move.

Design Considerations for the Crank and Slider Mechanism

When designing a Crank and Slider mechanism, several factors need to be considered to ensure optimal performance and efficiency. These include:

Material Selection

The materials used for the crank, slider, and connecting rod should be chosen based on their strength, durability, and resistance to wear. Common materials include steel, aluminum, and high-strength plastics.

Dimensions and Tolerances

The dimensions of the components and the tolerances between them are critical for the smooth operation of the mechanism. Precise machining and assembly are essential to minimize friction and wear.

Lubrication

Proper lubrication is necessary to reduce friction and wear between the moving parts. The type and amount of lubricant used will depend on the specific application and operating conditions.

Load and Speed

The load and speed at which the mechanism will operate must be considered during the design phase. High loads and speeds can increase wear and require more robust materials and lubrication.

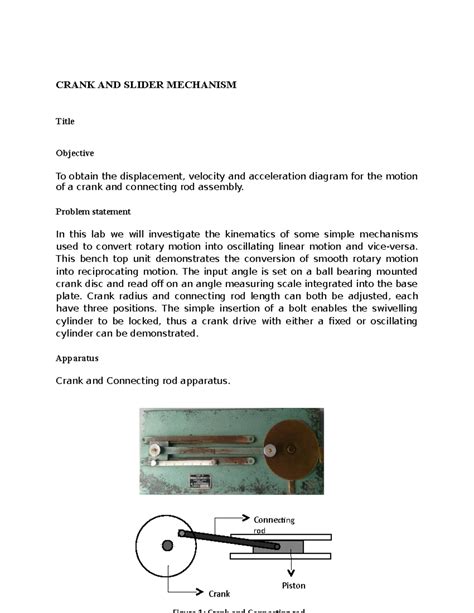

Mathematical Analysis of the Crank and Slider Mechanism

To understand the behavior of the Crank and Slider mechanism, it is important to perform a mathematical analysis. This involves calculating the position, velocity, and acceleration of the slider as a function of the crank's rotation.

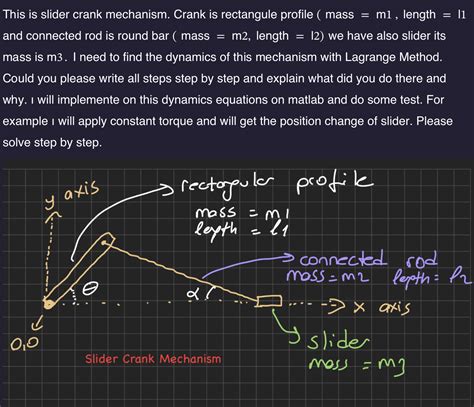

Let's consider a simple Crank and Slider mechanism where:

  • r is the length of the crank.
  • l is the length of the connecting rod.
  • θ is the angle of rotation of the crank.

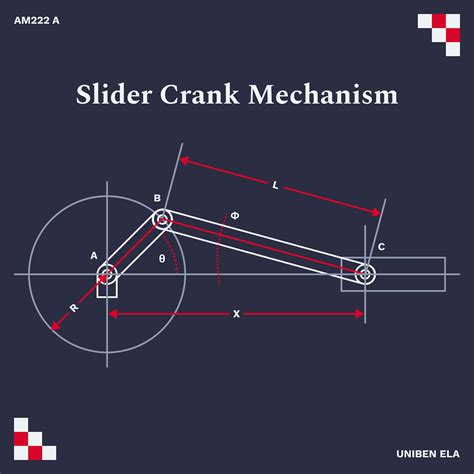

The position of the slider (x) can be calculated using the following equation:

📝 Note: The equation below is a simplified representation and may vary based on specific design parameters.

x = r * cos(θ) + sqrt(l^2 - r^2 * sin^2(θ))

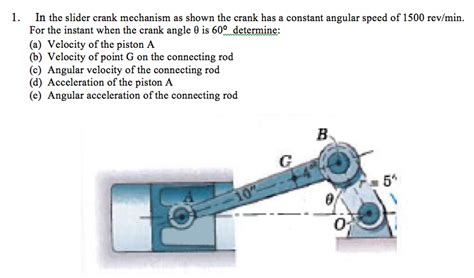

The velocity (v) and acceleration (a) of the slider can be derived from the position equation by taking the first and second derivatives with respect to time, respectively.

Advantages and Disadvantages of the Crank and Slider Mechanism

The Crank and Slider mechanism offers several advantages, but it also has some limitations. Understanding these can help in deciding whether this mechanism is suitable for a particular application.

Advantages

  • Simplicity: The mechanism is relatively simple in design and easy to manufacture.
  • Efficiency: It can convert rotational motion into linear motion with high efficiency.
  • Versatility: It can be used in a wide range of applications, from small toys to large machinery.
  • Precision: With proper design and manufacturing, it can achieve high precision in motion control.

Disadvantages

  • Wear and Tear: The moving parts are subject to wear and tear, which can reduce the lifespan of the mechanism.
  • Friction: Friction between the moving parts can lead to energy loss and reduced efficiency.
  • Complexity in High-Speed Applications: At high speeds, the mechanism can become complex to control and may require additional components.

Maintenance and Troubleshooting

Maintaining a Crank and Slider mechanism involves regular inspection, lubrication, and replacement of worn parts. Here are some key maintenance tasks and troubleshooting tips:

Maintenance Tasks

  • Regular Inspection: Inspect the mechanism for signs of wear, damage, or misalignment.
  • Lubrication: Apply lubricant to the moving parts to reduce friction and wear.
  • Cleaning: Keep the mechanism clean to prevent the buildup of dirt and debris.
  • Replacement of Parts: Replace worn or damaged parts promptly to maintain the mechanism's performance.

Troubleshooting Tips

  • Excessive Noise: If the mechanism is making excessive noise, check for misalignment, lack of lubrication, or worn parts.
  • Reduced Efficiency: If the mechanism is not operating efficiently, check for friction, wear, or improper lubrication.
  • Uneven Motion: If the slider's motion is uneven, check for misalignment or worn parts in the connecting rod or crank.

🛠️ Note: Regular maintenance and prompt troubleshooting can extend the lifespan of the Crank and Slider mechanism and ensure its reliable operation.

The design and application of the Crank and Slider mechanism continue to evolve with advancements in technology and materials. Some of the future trends in this field include:

Advanced Materials

The use of advanced materials, such as composites and high-strength alloys, can improve the durability and performance of the Crank and Slider mechanism. These materials can reduce wear and increase the lifespan of the components.

Smart Sensors and IoT

Integrating smart sensors and Internet of Things (IoT) technology can enable real-time monitoring and control of the Crank and Slider mechanism. This can help in predicting maintenance needs and optimizing performance.

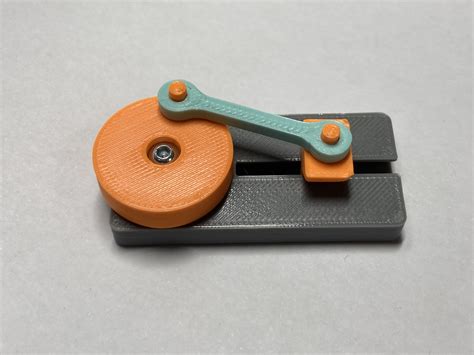

Additive Manufacturing

Additive manufacturing, or 3D printing, can revolutionize the production of Crank and Slider mechanisms. This technology allows for the creation of complex geometries and custom designs, which can enhance the performance and efficiency of the mechanism.

Energy Efficiency

Future designs will focus on improving the energy efficiency of the Crank and Slider mechanism. This can be achieved through better materials, reduced friction, and optimized designs that minimize energy loss.

In conclusion, the Crank and Slider mechanism is a fundamental component in mechanical engineering with a wide range of applications. Its ability to convert rotational motion into linear motion makes it indispensable in various industries. Understanding the principles, design considerations, and maintenance requirements of this mechanism can help in optimizing its performance and extending its lifespan. As technology advances, the future of the Crank and Slider mechanism looks promising, with innovations in materials, sensors, and manufacturing techniques paving the way for more efficient and reliable designs.
