Copper Tubing Types

Copper tubing is a versatile and widely used material in various industries, including plumbing, HVAC, and refrigeration. Understanding the different types of copper tubing is crucial for selecting the right material for your specific application. This guide will delve into the various copper tubing types, their properties, and common uses.

Table of Contents

Types of Copper Tubing

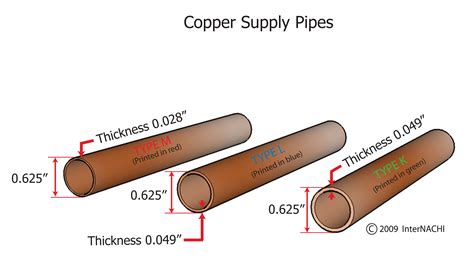

Copper tubing comes in several types, each designed for specific applications. The most common types are Type K, Type L, and Type M. Each type has unique characteristics that make it suitable for different purposes.

Type K Copper Tubing

Type K copper tubing is the thickest and strongest of the three main types. It is designed for high-pressure applications and is often used in underground water service lines. The thick walls of Type K tubing provide excellent durability and resistance to corrosion, making it ideal for harsh environments.

Key features of Type K copper tubing include:

Thickness: The thickest wall among the three main types.
Strength: High resistance to pressure and corrosion.
Applications: Underground water service lines, fire protection systems, and industrial applications.

Type L Copper Tubing

Type L copper tubing is the most commonly used type in residential and commercial plumbing. It has a medium wall thickness, making it suitable for a wide range of applications. Type L tubing is often used in water supply lines, both above and below ground, due to its balance of strength and flexibility.

Key features of Type L copper tubing include:

Thickness: Medium wall thickness.
Strength: Good resistance to pressure and corrosion.
Applications: Water supply lines, both above and below ground, and general plumbing.

Type M Copper Tubing

Type M copper tubing has the thinnest walls among the three main types. It is designed for low-pressure applications and is often used in residential plumbing for water supply lines. Type M tubing is more flexible and easier to bend than Type K and Type L, making it suitable for tight spaces and intricate plumbing designs.

Key features of Type M copper tubing include:

Thickness: Thinnest wall among the three main types.
Strength: Suitable for low-pressure applications.
Applications: Residential plumbing, water supply lines, and tight spaces.

Other Copper Tubing Types

In addition to the main types, there are other specialized copper tubing types designed for specific applications. These include Type DWV, medical gas tubing, and refrigeration tubing.

Type DWV Copper Tubing

Type DWV (Drain, Waste, and Vent) copper tubing is designed for drainage, waste, and venting systems. It has a thinner wall than Type M and is not suitable for water supply lines. Type DWV tubing is often used in plumbing systems where the risk of freezing is low.

Key features of Type DWV copper tubing include:

Thickness: Thinner wall than Type M.
Applications: Drainage, waste, and venting systems.

Medical Gas Tubing

Medical gas tubing is a specialized type of copper tubing designed for the delivery of medical gases, such as oxygen and nitrous oxide. It is manufactured to meet strict standards for purity and safety, ensuring that the gases delivered are free from contaminants.

Key features of medical gas tubing include:

Purity: Meets strict standards for purity and safety.
Applications: Delivery of medical gases in healthcare settings.

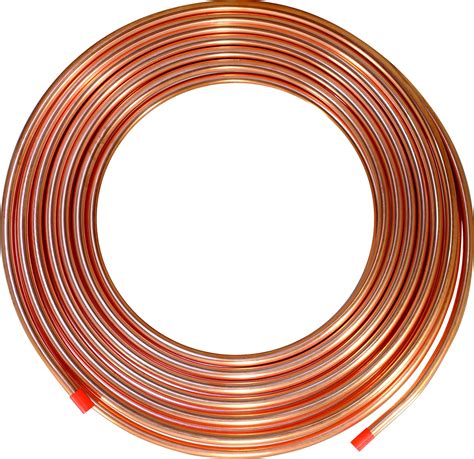

Refrigeration Tubing

Refrigeration tubing is designed for use in refrigeration and air conditioning systems. It is typically made from copper with a smooth interior surface to minimize friction and improve efficiency. Refrigeration tubing is available in various sizes and configurations to meet the specific needs of different systems.

Key features of refrigeration tubing include:

Surface: Smooth interior surface to minimize friction.
Applications: Refrigeration and air conditioning systems.

Choosing the Right Copper Tubing

Selecting the right type of copper tubing depends on the specific application and the environmental conditions. Here are some factors to consider when choosing copper tubing:

Pressure Requirements: Ensure the tubing can withstand the required pressure for your application.
Corrosion Resistance: Consider the environment where the tubing will be used and choose a type with appropriate corrosion resistance.
Flexibility: Assess the need for flexibility in your plumbing design and choose a tubing type that can be easily bent or shaped.
Cost: Evaluate the cost of different tubing types and choose one that fits within your budget.

Here is a comparison table of the main copper tubing types to help you make an informed decision:

Type	Wall Thickness	Pressure Resistance	Common Applications
Type K	Thickest	High	Underground water service lines, fire protection systems
Type L	Medium	Good	Water supply lines, general plumbing
Type M	Thinnest	Low	Residential plumbing, tight spaces
Type DWV	Thinner than Type M	Low	Drainage, waste, and venting systems

💡 Note: Always consult with a professional plumber or HVAC technician to ensure you are using the correct type of copper tubing for your specific application.

Copper tubing is a reliable and durable material that offers numerous benefits for various applications. Understanding the different copper tubing types and their properties is essential for selecting the right material for your needs. Whether you are working on a plumbing project, HVAC system, or refrigeration unit, choosing the appropriate copper tubing will ensure optimal performance and longevity.

By considering factors such as pressure requirements, corrosion resistance, flexibility, and cost, you can make an informed decision and select the best copper tubing for your project. Whether you opt for Type K, Type L, Type M, or a specialized type like medical gas tubing or refrigeration tubing, copper tubing provides a versatile and dependable solution for a wide range of applications.
