Optical lenses are fundamental components in various optical systems, from cameras and telescopes to microscopes and eyeglasses. Among the different types of lenses, the convex optical lens stands out due to its unique properties and wide range of applications. This post delves into the intricacies of convex optical lenses, their types, applications, and the science behind their functionality.
Understanding Convex Optical Lenses

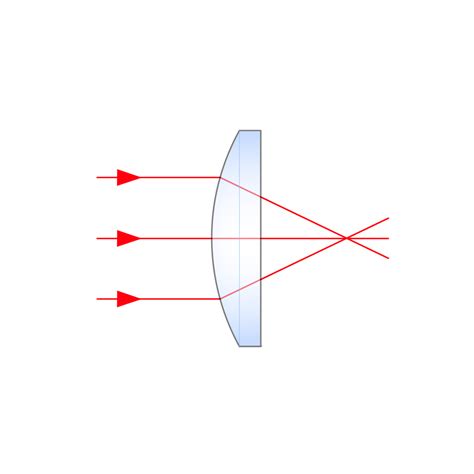

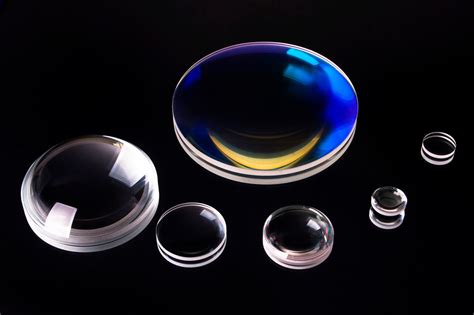

A convex optical lens is a type of lens that is thicker at the center than at the edges. This design causes light rays passing through the lens to converge, or come together, at a focal point. The convergence of light rays is what makes convex lenses particularly useful in various optical devices.
Convex lenses are often referred to as converging lenses because of their ability to focus light. They are commonly used in applications where magnification and image formation are crucial. The focal length of a convex lens is the distance from the lens to the point where parallel rays of light converge. This focal length is a critical parameter that determines the lens's magnification power.
Types of Convex Optical Lenses
Convex lenses can be categorized based on their shape and the curvature of their surfaces. The most common types include:

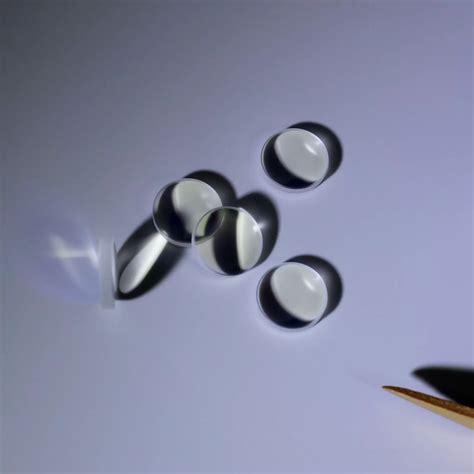

- Biconvex Lens: Both surfaces of the lens are convex, making it thicker in the middle and thinner at the edges.

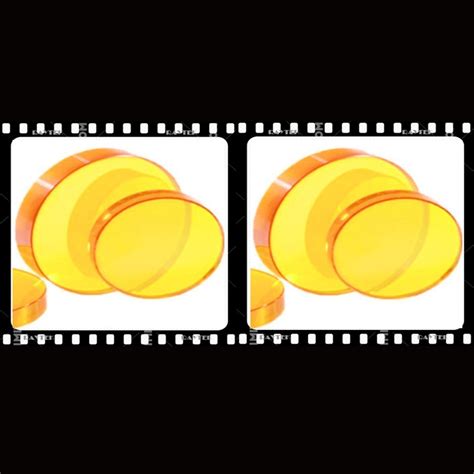

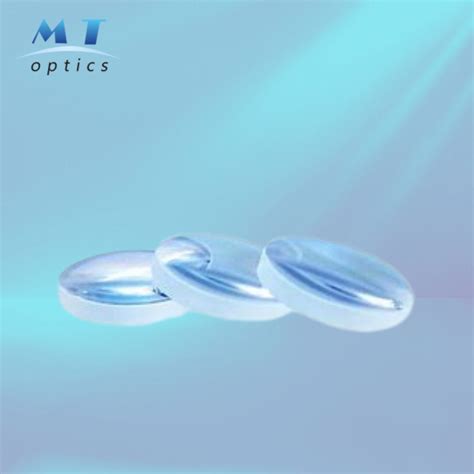

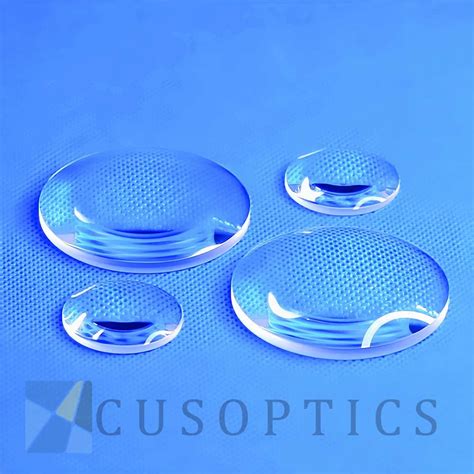

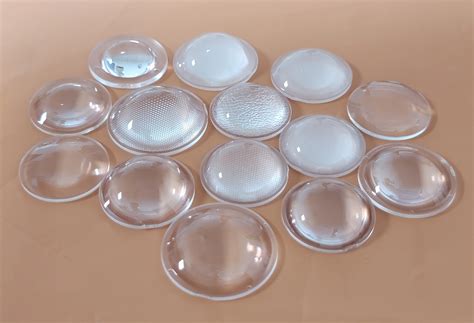

- Plano-Convex Lens: One surface is convex, while the other is flat (plano).
- Convex-Concave Lens: One surface is convex, and the other is concave. This type is less common but can be used in specific applications.
Each type of convex lens has its unique characteristics and is suited for different applications. For example, biconvex lenses are often used in cameras and telescopes due to their ability to focus light effectively, while plano-convex lenses are commonly used in magnifying glasses and projectors.
Applications of Convex Optical Lenses
The versatility of convex optical lenses makes them indispensable in various fields. Some of the key applications include:
- Photography: Convex lenses are used in camera lenses to focus light onto the image sensor, creating sharp and clear images.
- Astronomy: Telescopes use convex lenses to gather and focus light from distant stars and galaxies, allowing astronomers to observe celestial bodies in detail.
- Microscopy: Microscopes employ convex lenses to magnify small objects, enabling scientists to study microscopic structures.
- Eyeglasses: Convex lenses are used in corrective eyeglasses to help individuals with farsightedness (hyperopia) by focusing light onto the retina.
- Projectors: Convex lenses are essential in projectors, where they focus light onto a screen to display images and videos.
In addition to these applications, convex lenses are also used in various scientific instruments, medical devices, and industrial equipment. Their ability to focus light makes them a crucial component in many optical systems.
The Science Behind Convex Optical Lenses
The functionality of a convex optical lens is based on the principles of refraction. When light passes from one medium to another, it changes direction due to the difference in the refractive indices of the two media. In the case of a convex lens, the curved surfaces cause the light rays to bend inward, converging at a focal point.
The focal length of a convex lens can be calculated using the lensmaker's equation, which relates the focal length to the radii of curvature of the lens surfaces and the refractive index of the lens material. The equation is given by:
1/f = (n-1) * (1/R1 - 1/R2)
where f is the focal length, n is the refractive index of the lens material, and R1 and R2 are the radii of curvature of the lens surfaces.
Understanding the lensmaker's equation is crucial for designing and optimizing convex lenses for specific applications. By adjusting the curvature of the lens surfaces and the refractive index of the material, optical engineers can achieve the desired focal length and magnification power.
Factors Affecting the Performance of Convex Optical Lenses
Several factors can affect the performance of a convex optical lens. These include:
- Material: The refractive index and dispersion of the lens material can significantly impact its performance. Common materials for convex lenses include glass, plastic, and specialized optical materials.
- Curvature: The curvature of the lens surfaces determines the focal length and magnification power. Precise control over the curvature is essential for achieving the desired optical properties.
- Thickness: The thickness of the lens can affect its optical performance, especially in high-power applications. Thicker lenses can introduce aberrations and reduce image quality.
- Coatings: Anti-reflective coatings can improve the transmission of light through the lens, reducing glare and improving image contrast.
Optical engineers must carefully consider these factors when designing and manufacturing convex lenses to ensure optimal performance in their intended applications.
Common Issues and Solutions
Despite their many advantages, convex lenses can also face certain challenges. Some common issues and their solutions include:
| Issue | Solution |
|---|---|
| Chromatic Aberration | Use achromatic lenses or corrective coatings to minimize color fringes. |
| Spherical Aberration | Design lenses with aspheric surfaces or use multiple lens elements to reduce aberrations. |
| Distortion | Optimize lens design and use corrective optics to minimize image distortion. |
| Glare | Apply anti-reflective coatings to reduce glare and improve image contrast. |
Addressing these issues requires a deep understanding of optical principles and advanced manufacturing techniques. Optical engineers often use computer simulations and prototyping to optimize lens designs and ensure they meet the required performance standards.
🔍 Note: Proper alignment and calibration of convex lenses are crucial for achieving optimal performance. Misalignment can lead to image distortion and reduced image quality.
Future Trends in Convex Optical Lens Technology
The field of optics is continually evolving, and convex optical lenses are no exception. Some of the emerging trends in convex lens technology include:
- Advanced Materials: The development of new optical materials with unique properties, such as high refractive indices and low dispersion, is opening up new possibilities for lens design.
- Nanotechnology: Nanostructured surfaces and coatings are being explored to enhance the performance of convex lenses, reducing aberrations and improving image quality.
- Adaptive Optics: Adaptive optics systems use deformable mirrors and real-time feedback to correct for optical aberrations, improving the performance of convex lenses in dynamic environments.
- Miniaturization: The demand for smaller and more compact optical systems is driving the development of miniaturized convex lenses for applications in mobile devices, wearable technology, and medical instruments.
These trends are pushing the boundaries of what is possible with convex lenses, enabling new applications and improving the performance of existing optical systems.
Convex optical lenses are a cornerstone of modern optics, with applications ranging from photography and astronomy to microscopy and medical devices. Their ability to focus light makes them indispensable in various fields, and ongoing advancements in lens technology are opening up new possibilities for their use. By understanding the principles behind convex lenses and the factors that affect their performance, optical engineers can design and optimize these lenses for a wide range of applications, ensuring they continue to play a crucial role in the world of optics.
