Convex Lens Ray Diagram

Understanding the principles of optics is fundamental to various fields, including physics, engineering, and photography. One of the key concepts in optics is the behavior of light as it passes through a convex lens. A Convex Lens Ray Diagram is a powerful tool used to visualize and analyze how light rays interact with convex lenses. This diagram helps in predicting the formation of images, understanding focal points, and determining the nature of the images formed.

Table of Contents

Understanding Convex Lenses

A convex lens, also known as a converging lens, is thicker at the center than at the edges. This shape causes parallel rays of light to converge at a single point, known as the focal point. The distance from the center of the lens to the focal point is called the focal length. Convex lenses are commonly used in cameras, telescopes, and magnifying glasses.

Basic Principles of a Convex Lens Ray Diagram

A Convex Lens Ray Diagram typically involves drawing three principal rays to determine the image formed by the lens. These rays are:

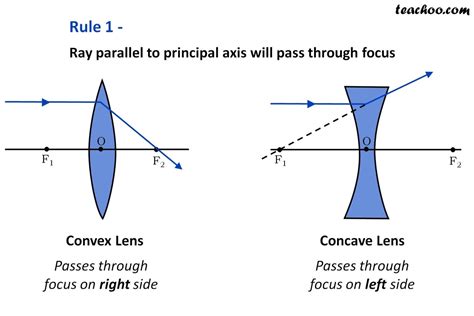

Ray 1: A ray parallel to the principal axis, which passes through the focal point on the other side of the lens.
Ray 2: A ray passing through the center of the lens, which continues in a straight line.
Ray 3: A ray passing through the focal point on the same side as the object, which emerges parallel to the principal axis.

By tracing these rays, one can determine the location, size, and orientation of the image formed by the lens.

Constructing a Convex Lens Ray Diagram

To construct a Convex Lens Ray Diagram, follow these steps:

Draw the Lens: Start by drawing a convex lens and labeling the principal axis, which is a horizontal line passing through the center of the lens.
Draw the Object: Place an object (usually an arrow) on one side of the lens. Label the top of the object as point A and the bottom as point B.
Draw Ray 1: From point A, draw a ray parallel to the principal axis. This ray will pass through the focal point on the other side of the lens.
Draw Ray 2: From point A, draw a ray that passes through the center of the lens. This ray will continue in a straight line.
Draw Ray 3: From point A, draw a ray that passes through the focal point on the same side as the object. This ray will emerge parallel to the principal axis.
Find the Image: The point where Ray 1 and Ray 2 intersect on the other side of the lens is the top of the image (point A'). Draw a line from point A' perpendicular to the principal axis to find the bottom of the image (point B').

📝 Note: Ensure that the rays are drawn accurately to avoid errors in determining the image location and size.

Types of Images Formed by Convex Lenses

Convex lenses can form different types of images depending on the position of the object relative to the lens. The main types of images are:

Real Images: These are formed when the object is placed beyond the focal point of the lens. Real images are inverted and can be projected onto a screen.

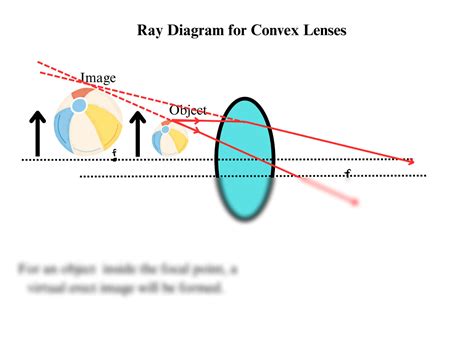

Virtual Images: These are formed when the object is placed within the focal length of the lens. Virtual images are upright and cannot be projected onto a screen.

Here is a table summarizing the characteristics of real and virtual images formed by convex lenses:

Characteristic	Real Image	Virtual Image
Position of Object	Beyond the focal point	Within the focal length
Orientation	Inverted	Upright
Projection	Can be projected onto a screen	Cannot be projected onto a screen

Applications of Convex Lens Ray Diagrams

Convex Lens Ray Diagrams are widely used in various applications, including:

Optical Instruments: In cameras, telescopes, and microscopes, convex lenses are used to form clear and magnified images. Ray diagrams help in designing these instruments by predicting the behavior of light.
Photography: Photographers use convex lenses to control the focus and magnification of images. Understanding ray diagrams helps in selecting the right lens for different photographic situations.
Educational Tools: Ray diagrams are essential educational tools for teaching optics. They help students visualize the principles of light refraction and image formation.

By mastering the construction and interpretation of Convex Lens Ray Diagrams, one can gain a deeper understanding of optics and its applications.

Advanced Concepts in Convex Lens Ray Diagrams

Beyond the basic principles, there are advanced concepts that enhance the understanding of Convex Lens Ray Diagrams. These include:

Lens Maker's Formula: This formula relates the focal length of a lens to the radii of curvature of its surfaces and the refractive index of the lens material. It is given by:

1/f = (n-1) * (1/R1 - 1/R2)

Thin Lens Approximation: This approximation assumes that the lens is thin compared to its focal length. It simplifies the analysis of ray diagrams by ignoring the thickness of the lens.
Aberrations: These are distortions in the image formed by a lens. Common aberrations include spherical aberration, chromatic aberration, and coma. Understanding these aberrations helps in designing lenses with better image quality.

By exploring these advanced concepts, one can gain a more comprehensive understanding of the behavior of light in convex lenses.

📝 Note: Advanced concepts may require a deeper understanding of mathematics and physics, but they are crucial for designing and analyzing optical systems.

In summary, Convex Lens Ray Diagrams are invaluable tools for understanding the behavior of light in convex lenses. They help in predicting image formation, designing optical instruments, and teaching the principles of optics. By mastering the construction and interpretation of these diagrams, one can gain a deeper appreciation for the fascinating world of optics.
