Understanding the intricacies of a Convertisseur AC DC (AC to DC converter) is crucial for anyone working with electrical systems. These devices play a pivotal role in converting alternating current (AC) to direct current (DC), which is essential for powering a wide range of electronic devices. Whether you are an electrical engineer, a hobbyist, or someone interested in renewable energy, grasping the fundamentals of Convertisseur AC DC can open up a world of possibilities.
What is a Convertisseur AC DC?
A Convertisseur AC DC is an electrical circuit or device that converts alternating current (AC) to direct current (DC). This conversion is necessary because many electronic devices and batteries require DC power to function. The process involves rectifying the AC signal to produce a pulsating DC signal, which is then smoothed out using filters to create a steady DC output.
Types of Convertisseurs AC DC
There are several types of Convertisseur AC DC, each suited to different applications and requirements. The most common types include:
- Half-Wave Rectifiers: These are the simplest form of Convertisseur AC DC and use a single diode to convert AC to DC. However, they are inefficient and produce a pulsating DC output.
- Full-Wave Rectifiers: These use a bridge of diodes to convert both halves of the AC waveform, resulting in a more efficient and smoother DC output.
- Switching Convertisseurs AC DC: These use high-frequency switching to convert AC to DC, making them highly efficient and suitable for modern electronic devices.
Components of a Convertisseur AC DC
A typical Convertisseur AC DC consists of several key components:
- Diodes: These are semiconductor devices that allow current to flow in only one direction, essential for rectifying the AC signal.
- Capacitors: These are used to smooth out the pulsating DC output, providing a steady voltage.
- Transformers: These are used to step down the AC voltage to a level suitable for the Convertisseur AC DC.
- Inductors: These are used in some designs to further smooth the DC output and reduce ripple.
How a Convertisseur AC DC Works
The operation of a Convertisseur AC DC can be broken down into several steps:
- Rectification: The AC input is passed through a rectifier circuit, which converts the alternating current into a pulsating DC signal.
- Filtering: The pulsating DC signal is then passed through a filter circuit, typically consisting of capacitors and inductors, to smooth out the ripples and produce a steady DC output.
- Regulation: In some cases, a voltage regulator is used to maintain a constant DC output voltage, regardless of variations in the input AC voltage or load conditions.
Applications of Convertisseurs AC DC
Convertisseurs AC DC are used in a wide range of applications, including:

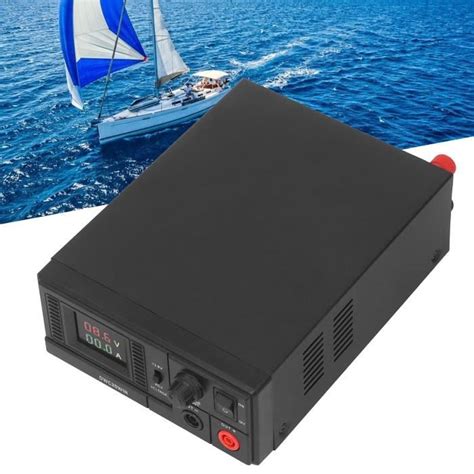

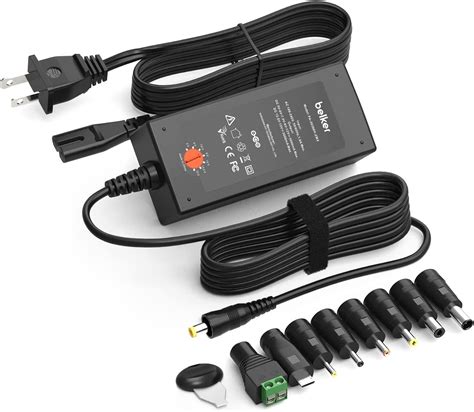

- Power Supplies: For electronic devices such as computers, televisions, and mobile phones.
- Renewable Energy Systems: For converting the AC output of solar panels or wind turbines to DC for battery storage.
- Automotive: For charging batteries in electric and hybrid vehicles.
- Industrial Equipment: For powering motors, control systems, and other industrial machinery.
Design Considerations for Convertisseurs AC DC
When designing a Convertisseur AC DC, several factors must be considered to ensure optimal performance and efficiency:
- Efficiency: The efficiency of the converter is crucial, especially for applications where power consumption is a concern.
- Ripple Voltage: The amount of ripple in the DC output should be minimized to ensure a stable power supply.
- Voltage Regulation: The converter should be able to maintain a constant output voltage despite variations in the input voltage or load conditions.
- Heat Dissipation: Proper heat management is essential to prevent overheating and ensure the longevity of the converter.
Common Issues and Troubleshooting
Despite their reliability, Convertisseurs AC DC can encounter issues that require troubleshooting. Some common problems include:
- Overheating: This can be caused by excessive load, poor ventilation, or component failure. Ensure proper cooling and check for any faulty components.
- Ripple Voltage: High ripple voltage can indicate a problem with the filter circuit. Check the capacitors and inductors for any signs of failure.
- Voltage Fluctuations: Fluctuations in the output voltage can be due to a faulty voltage regulator. Inspect the regulator and replace it if necessary.
🔧 Note: Always ensure that the Convertisseur AC DC is properly grounded and that all safety precautions are followed when working with electrical components.
Future Trends in Convertisseurs AC DC
The field of Convertisseur AC DC technology is continually evolving, driven by advancements in semiconductor materials and design techniques. Some of the emerging trends include:
- High-Efficiency Materials: The use of new semiconductor materials, such as gallium nitride (GaN) and silicon carbide (SiC), is leading to more efficient and compact Convertisseurs AC DC.
- Integrated Circuits: The integration of multiple components into a single chip is reducing the size and cost of Convertisseurs AC DC.
- Smart Convertisseurs: The incorporation of smart features, such as remote monitoring and control, is enhancing the functionality and reliability of Convertisseurs AC DC.
In conclusion, Convertisseurs AC DC are essential components in modern electrical systems, enabling the conversion of AC to DC power for a wide range of applications. Understanding their design, operation, and troubleshooting is crucial for anyone working with electrical systems. As technology continues to advance, the future of Convertisseurs AC DC looks promising, with new materials and design techniques paving the way for more efficient and reliable converters.
