Understanding the behavior of light as it passes through optical systems is fundamental to the study of optics. One of the most essential tools for visualizing and analyzing these behaviors is the Converging Lens Ray Diagram. This diagram helps us comprehend how light rays interact with converging lenses, which are crucial components in various optical devices such as cameras, microscopes, and telescopes.
What is a Converging Lens?

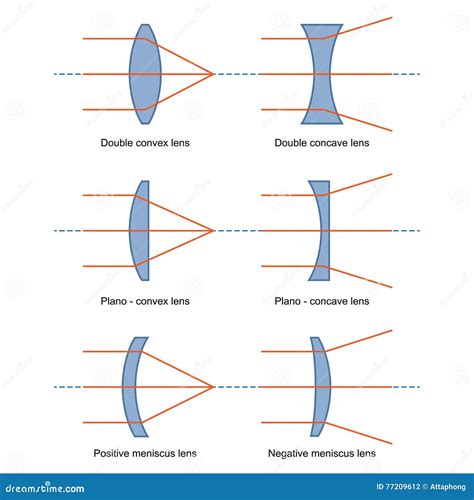

A converging lens, also known as a convex lens, is a type of lens that causes parallel rays of light to converge at a single point, known as the focal point. This property makes converging lenses ideal for focusing light and forming images. The shape of a converging lens is such that it is thicker in the middle and thinner at the edges, which allows it to bend incoming light rays towards the principal axis.
Basic Principles of a Converging Lens Ray Diagram
The Converging Lens Ray Diagram is a graphical representation that illustrates the path of light rays as they pass through a converging lens. By drawing these diagrams, we can predict the location, size, and orientation of the image formed by the lens. The key principles involved in constructing a Converging Lens Ray Diagram include:
- Principal Axis: The horizontal line passing through the center of the lens.
- Focal Points: The points where parallel rays of light converge after passing through the lens. There are two focal points, one on each side of the lens.
- Optical Center: The point at the center of the lens where a ray passing through it does not change direction.
Constructing a Converging Lens Ray Diagram
To construct a Converging Lens Ray Diagram, follow these steps:
- Draw the Lens: Start by drawing the converging lens and the principal axis.
- Draw the Object: Place an object (usually an arrow) on the principal axis to the left of the lens.
- Draw the Rays: Draw three principal rays from the top of the object:
- Ray 1: A ray parallel to the principal axis, which will pass through the focal point on the other side of the lens.
- Ray 2: A ray passing through the optical center of the lens, which will continue in a straight line.
- Ray 3: A ray passing through the focal point on the same side as the object, which will emerge parallel to the principal axis.
- Find the Image: The point where the three rays intersect on the other side of the lens is the location of the image.
- Draw the Image: Complete the image by drawing an arrow from the intersection point to the principal axis.
📝 Note: The image formed by a converging lens can be real or virtual, depending on the position of the object relative to the focal point. A real image is formed when the object is beyond the focal point and can be projected onto a screen. A virtual image is formed when the object is within the focal point and cannot be projected onto a screen.
Types of Images Formed by a Converging Lens
Converging lenses can form different types of images based on the position of the object relative to the lens. The key types of images are:
- Real Image: Formed when the object is beyond the focal point. The image is inverted and can be projected onto a screen.
- Virtual Image: Formed when the object is within the focal point. The image is upright and cannot be projected onto a screen.
Applications of Converging Lens Ray Diagrams
The Converging Lens Ray Diagram is a powerful tool used in various applications, including:
- Optical Instruments: Designing and analyzing optical instruments such as cameras, microscopes, and telescopes.
- Photography: Understanding how lenses focus light to capture images.
- Eye Care: Analyzing the behavior of light in the human eye and correcting vision problems.

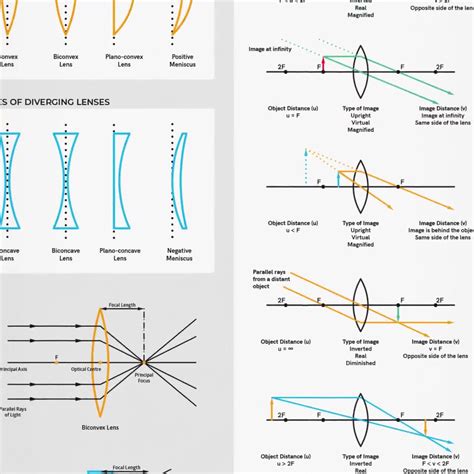

Examples of Converging Lens Ray Diagrams
Let’s consider a few examples to illustrate the use of Converging Lens Ray Diagrams.

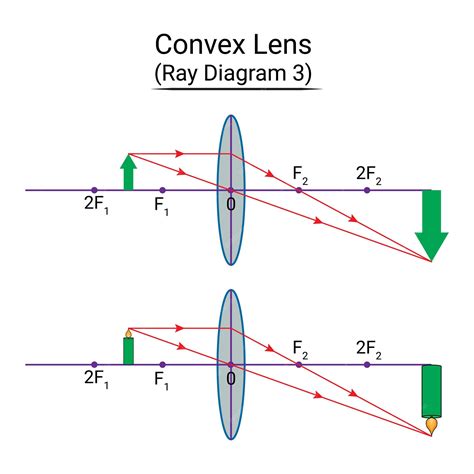

Example 1: Object Beyond the Focal Point
When the object is placed beyond the focal point of a converging lens, a real, inverted image is formed on the other side of the lens. This is the principle behind the formation of images in cameras and projectors.
Example 2: Object Within the Focal Point
When the object is placed within the focal point of a converging lens, a virtual, upright image is formed on the same side of the lens as the object. This is the principle behind magnifying glasses.
Example 3: Object at the Focal Point
When the object is placed exactly at the focal point of a converging lens, the rays of light emerge parallel to the principal axis, and no image is formed. This principle is used in collimators and laser pointers.
Factors Affecting Image Formation
Several factors influence the formation of images by a converging lens. Understanding these factors is crucial for accurate analysis using a Converging Lens Ray Diagram.
- Object Distance: The distance between the object and the lens affects the size and location of the image.
- Focal Length: The focal length of the lens determines the point at which parallel rays converge.
- Lens Shape: The curvature of the lens surfaces influences how light rays are bent.
Lens Formula and Magnification
The lens formula and magnification are essential concepts in optics that complement the Converging Lens Ray Diagram.
The lens formula is given by:
1/f = 1/do + 1/di
Where:
- f is the focal length of the lens.
- do is the object distance.
- di is the image distance.
The magnification (m) is given by:
m = -di/do
Where:
- m is the magnification.
- di is the image distance.
- do is the object distance.
📝 Note: The negative sign in the magnification formula indicates that the image is inverted when the magnification is positive. If the magnification is negative, the image is upright.
Common Misconceptions
There are several common misconceptions about Converging Lens Ray Diagrams that can lead to errors in analysis. Some of these misconceptions include:
- Assuming All Rays Converge at the Focal Point: Only parallel rays converge at the focal point. Other rays follow different paths.
- Ignoring the Optical Center: Rays passing through the optical center do not change direction and are crucial for accurate diagrams.
- Confusing Real and Virtual Images: Real images can be projected onto a screen, while virtual images cannot.
Practical Tips for Drawing Converging Lens Ray Diagrams
Drawing accurate Converging Lens Ray Diagrams requires practice and attention to detail. Here are some practical tips to help you:
- Use a Straight Edge: Ensure that your rays are straight and accurate.
- Label Key Points: Clearly label the focal points, optical center, and principal axis.
- Check Your Work: Verify that your rays intersect at the correct points and that the image is correctly positioned.
📝 Note: Practice drawing Converging Lens Ray Diagrams for different object positions to build your skills and understanding.
Advanced Topics in Converging Lens Ray Diagrams
For those interested in delving deeper into the subject, there are several advanced topics related to Converging Lens Ray Diagrams that can be explored:
- Thin Lens Approximation: Assumes the lens is thin compared to its focal length, simplifying calculations.
- Thick Lens Analysis: Considers the thickness of the lens and the refractive indices of the lens material and surrounding medium.
- Aberrations: Studies the imperfections in lenses that cause distortions in the image.
Conclusion
The Converging Lens Ray Diagram is an indispensable tool for understanding the behavior of light as it passes through converging lenses. By mastering the principles and techniques involved in constructing these diagrams, you can gain a deeper insight into the workings of optical systems and their applications. Whether you are a student, an engineer, or an enthusiast, the Converging Lens Ray Diagram provides a clear and effective way to visualize and analyze the fascinating world of optics.
