Understanding the principles of motion is fundamental to physics, and one of the key concepts in this area is the study of objects moving with constant acceleration. The Constant Accel Equations are essential tools for analyzing such motion, providing a framework to predict an object's position, velocity, and acceleration over time. These equations are derived from basic kinematic principles and are widely used in various fields, from engineering to sports science.
Understanding Constant Acceleration
Constant acceleration refers to a situation where an object's velocity changes at a steady rate. This means that the acceleration vector remains constant in both magnitude and direction. The Constant Accel Equations are particularly useful in scenarios where the acceleration is uniform, such as an object falling under gravity (neglecting air resistance) or a car accelerating uniformly on a straight road.
The Basic Equations

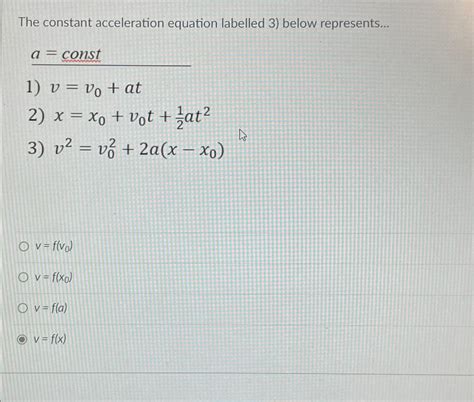

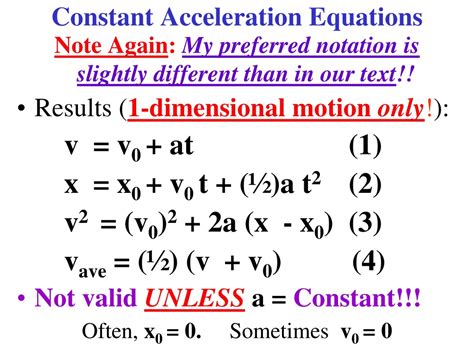

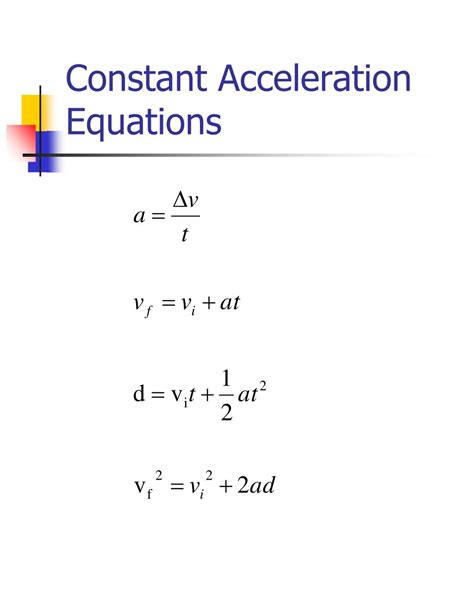

The Constant Accel Equations are typically presented in four forms, each providing a different relationship between the variables involved in motion. These variables include initial velocity (u), final velocity (v), acceleration (a), time (t), and displacement (s). The equations are:
- v = u + at
- s = ut + ½at²
- v² = u² + 2as
- s = ½(u + v)t
Each of these equations can be derived from the others and is useful in different situations depending on which variables are known and which need to be determined.
Deriving the Equations

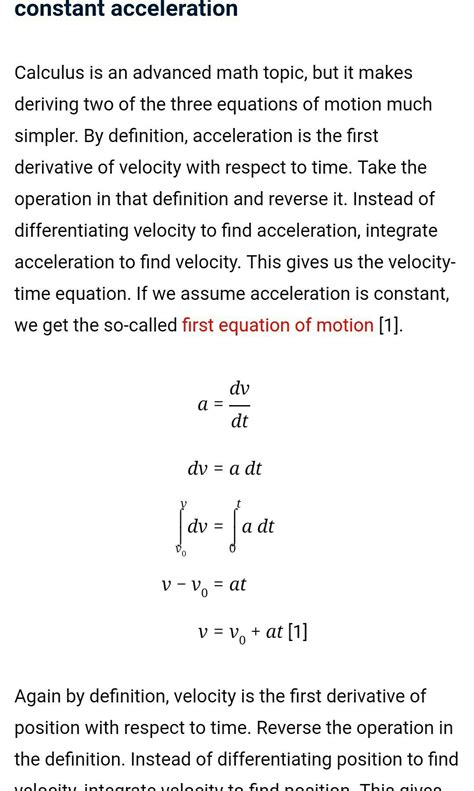

To understand how these equations are derived, let's start with the basic definitions of velocity and acceleration. Velocity (v) is the rate of change of position, and acceleration (a) is the rate of change of velocity. If an object starts with an initial velocity u and accelerates uniformly at a rate a, the velocity at any time t can be expressed as:
v = u + at
This equation tells us that the final velocity (v) is the sum of the initial velocity (u) and the product of acceleration (a) and time (t).
Next, we can derive the equation for displacement (s). Displacement is the change in position, and it can be found by integrating the velocity over time. If we integrate the velocity equation, we get:

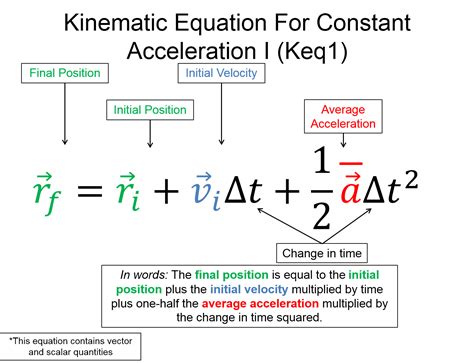

s = ut + ½at²
This equation gives us the displacement as a function of time, initial velocity, and acceleration.
The third equation, v² = u² + 2as, relates the final velocity, initial velocity, acceleration, and displacement. It can be derived by eliminating time from the first two equations.
The fourth equation, s = ½(u + v)t, is a rearrangement of the first two equations and provides another way to calculate displacement when the initial and final velocities are known.
Applications of the Constant Accel Equations
The Constant Accel Equations have numerous applications in various fields. Here are a few examples:
- Physics and Engineering: These equations are used to analyze the motion of objects in various scenarios, from projectiles to vehicles. Engineers use them to design systems that involve motion, such as elevators, roller coasters, and spacecraft.
- Sports Science: In sports, these equations help analyze the performance of athletes. For example, they can be used to determine the optimal launch angle for a javelin throw or the best acceleration strategy for a sprinter.
- Everyday Life: Even in everyday situations, understanding constant acceleration can be useful. For instance, knowing how long it takes to stop a car or how far a ball will travel when thrown can be important for safety and planning.
Solving Problems with the Constant Accel Equations
To solve problems involving constant acceleration, follow these steps:
- Identify the known variables: Determine which variables are given in the problem (u, v, a, t, s).
- Choose the appropriate equation: Select the Constant Accel Equation that includes the known variables and the unknown variable you need to find.
- Substitute the values: Plug in the known values into the equation.
- Solve for the unknown: Use algebraic methods to solve for the unknown variable.
For example, if you know the initial velocity (u), acceleration (a), and time (t), and you need to find the displacement (s), you would use the equation s = ut + ½at².
💡 Note: Always double-check the units of the variables to ensure they are consistent (e.g., meters per second for velocity, meters per second squared for acceleration).
Example Problems
Let's go through a couple of example problems to illustrate how to use the Constant Accel Equations.
Example 1: Free Fall
An object is dropped from a height of 50 meters. How long does it take to hit the ground? (Assume the acceleration due to gravity is 9.8 m/s².)
In this problem, we know the initial velocity (u = 0 m/s), acceleration (a = 9.8 m/s²), and displacement (s = 50 m). We need to find the time (t). Using the equation s = ut + ½at², we get:
50 = 0 + ½(9.8)t²
Solving for t, we find:
t = √(2 * 50 / 9.8) ≈ 3.19 seconds
Example 2: Accelerating Car
A car accelerates from rest at a rate of 2 m/s². How far does it travel in 10 seconds?
Here, the initial velocity (u = 0 m/s), acceleration (a = 2 m/s²), and time (t = 10 s) are known. We need to find the displacement (s). Using the equation s = ut + ½at², we get:
s = 0 + ½(2)(10)² = 100 meters
Graphical Representation
Graphs are a powerful tool for visualizing motion. For constant acceleration, the graphs of position, velocity, and acceleration versus time have distinct characteristics. Here is a table summarizing these characteristics:
| Quantity | Graph Shape | Equation |
|---|---|---|
| Position (s) | Parabola | s = ut + ½at² |
| Velocity (v) | Straight Line | v = u + at |
| Acceleration (a) | Horizontal Line | a = constant |
These graphs help in understanding the relationship between position, velocity, and acceleration over time. For example, the velocity graph is a straight line because the velocity changes at a constant rate, while the position graph is a parabola because the displacement increases quadratically with time.
For a visual representation, consider the following graphs:
These graphs illustrate the typical behavior of an object undergoing constant acceleration. The position graph shows a parabolic curve, the velocity graph shows a straight line, and the acceleration graph is a horizontal line, indicating a constant value.
Understanding these graphs can help in solving problems and visualizing the motion of objects under constant acceleration.
In conclusion, the Constant Accel Equations are fundamental tools in the study of motion. They provide a straightforward way to analyze and predict the behavior of objects moving with constant acceleration. Whether in physics, engineering, or everyday life, these equations are invaluable for understanding and solving problems related to motion. By mastering these equations, one can gain a deeper insight into the principles of kinematics and apply them to a wide range of scenarios.
