Data visualization is a powerful tool that helps in understanding and interpreting complex data sets. Among the various visualization techniques, the boxplot stands out as a simple yet effective way to represent the distribution of data based on a five-number summary: the minimum, first quartile (Q1), median, third quartile (Q3), and maximum. This summary provides a clear picture of the data's spread and central tendency, making it easier to identify outliers and understand the data's overall structure.

Table of Contents

Understanding the Boxplot

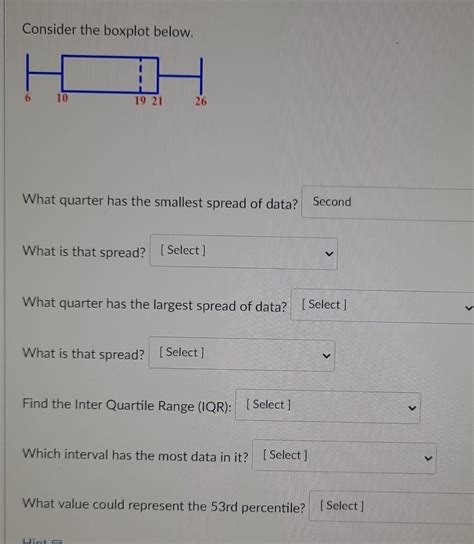

A boxplot, also known as a whisker plot, is a graphical representation of data that shows the distribution based on a five-number summary. The boxplot is particularly useful for comparing distributions between different groups or datasets. Consider the boxplot below:

In this example, the boxplot provides a visual summary of the data distribution. The box represents the interquartile range (IQR), which is the range between the first quartile (Q1) and the third quartile (Q3). The line inside the box represents the median, which is the middle value of the dataset. The whiskers extend from the box to the smallest and largest values within 1.5 times the IQR from the quartiles. Any data points outside this range are considered outliers and are plotted individually.

Components of a Boxplot

The boxplot is composed of several key components, each providing valuable information about the data:

Minimum: The smallest value in the dataset, excluding outliers.
First Quartile (Q1): The median of the lower half of the data.
Median: The middle value of the dataset, which divides the data into two equal halves.
Third Quartile (Q3): The median of the upper half of the data.
Maximum: The largest value in the dataset, excluding outliers.
Whiskers: The lines extending from the box to the minimum and maximum values within 1.5 times the IQR.
Outliers: Data points that fall outside the whiskers and are plotted individually.

Interpreting a Boxplot

Interpreting a boxplot involves understanding the distribution, central tendency, and variability of the data. Here are some key points to consider when interpreting a boxplot:

Central Tendency: The median line within the box indicates the central value of the dataset. If the median is closer to one end of the box, it suggests that the data is skewed in that direction.
Spread: The length of the box (IQR) provides information about the spread of the middle 50% of the data. A longer box indicates greater variability, while a shorter box suggests less variability.
Skewness: The position of the median within the box can indicate skewness. If the median is closer to the lower quartile, the data is positively skewed. If it is closer to the upper quartile, the data is negatively skewed.
Outliers: Outliers are data points that fall outside the whiskers and are plotted individually. They can indicate errors in data collection or rare events.

Consider the boxplot below to understand these concepts better:

In this boxplot, the median is slightly above the center of the box, indicating a slight positive skew. The IQR is relatively short, suggesting low variability in the middle 50% of the data. There are no outliers in this dataset, as all data points fall within the whiskers.

Creating a Boxplot

Creating a boxplot involves several steps, including data collection, calculation of the five-number summary, and plotting the components. Here is a step-by-step guide to creating a boxplot:

Data Collection: Gather the data you want to visualize. Ensure the data is clean and free of errors.
Calculate the Five-Number Summary: Compute the minimum, Q1, median, Q3, and maximum values.
Determine the IQR: Calculate the IQR as the difference between Q3 and Q1.
Identify Outliers: Determine the outliers by finding data points that fall below Q1 - 1.5 * IQR or above Q3 + 1.5 * IQR.
Plot the Boxplot: Use a plotting tool or software to create the boxplot. Most statistical software and programming languages have built-in functions for creating boxplots.

Here is an example of how to create a boxplot using Python with the matplotlib library:


import matplotlib.pyplot as plt
import numpy as np

# Sample data
data = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20]

# Create the boxplot
plt.boxplot(data)

# Add title and labels
plt.title('Boxplot Example')
plt.xlabel('Data')
plt.ylabel('Values')

# Show the plot
plt.show()

💡 Note: Ensure that your data is clean and free of errors before creating a boxplot. Outliers can significantly affect the interpretation of the data.

Comparing Multiple Boxplots

Boxplots are particularly useful for comparing multiple datasets or groups. By plotting multiple boxplots side by side, you can easily compare the distributions, central tendencies, and variabilities of different datasets. This is often done in side-by-side boxplots or grouped boxplots.

Consider the boxplot below, which compares the distributions of two different datasets:

In this example, the two boxplots show the distributions of two different datasets. By comparing the medians, IQRs, and whiskers, you can gain insights into the differences between the two datasets. For instance, if one boxplot has a longer IQR and more outliers, it indicates greater variability and potential outliers in that dataset.

Applications of Boxplots

Boxplots have a wide range of applications across various fields, including statistics, data analysis, and quality control. Some common applications include:

Data Analysis: Boxplots are used to summarize and visualize the distribution of data, making it easier to identify patterns, trends, and outliers.
Quality Control: In manufacturing, boxplots are used to monitor the quality of products by visualizing the variability and central tendency of measurements.
Statistical Analysis: Boxplots are used in statistical analysis to compare the distributions of different groups or datasets, helping to identify significant differences.
Educational Purposes: Boxplots are used in educational settings to teach students about data distribution, central tendency, and variability.

Consider the boxplot below, which shows the distribution of test scores for two different classes:

In this example, the boxplots compare the test scores of two classes. By examining the medians, IQRs, and whiskers, you can determine which class performed better overall and which class had more variability in test scores.

Limitations of Boxplots

While boxplots are a powerful tool for data visualization, they do have some limitations. Understanding these limitations can help you interpret boxplots more accurately:

Loss of Detail: Boxplots provide a summary of the data but do not show the individual data points, which can lead to a loss of detail.
Sensitivity to Outliers: Boxplots are sensitive to outliers, which can affect the interpretation of the data. Outliers can distort the whiskers and make it difficult to compare distributions.
Limited Information on Shape: Boxplots do not provide detailed information about the shape of the data distribution, such as skewness or kurtosis.

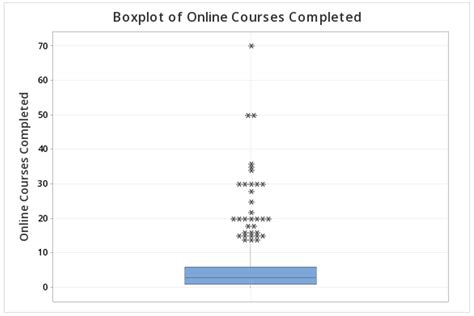

Consider the boxplot below, which shows the distribution of data with outliers:

In this example, the boxplot shows the distribution of data with several outliers. The presence of outliers can affect the interpretation of the data, making it difficult to compare distributions accurately.

Advanced Boxplot Techniques

In addition to the basic boxplot, there are several advanced techniques that can enhance the visualization and interpretation of data. Some of these techniques include:

Notched Boxplots: Notched boxplots include a notch around the median, which provides a visual representation of the confidence interval for the median. This helps in comparing the medians of different groups.
Violin Plots: Violin plots combine the boxplot with a kernel density plot, providing a more detailed view of the data distribution. They show the density of the data at different values, making it easier to identify the shape of the distribution.
Boxplot with Jitter: Adding jitter to the data points in a boxplot can help visualize the individual data points more clearly, especially when there are many overlapping points.

Consider the boxplot below, which shows a notched boxplot:

In this example, the notched boxplot includes a notch around the median, providing a visual representation of the confidence interval for the median. This helps in comparing the medians of different groups more accurately.

Boxplots in Different Software

Boxplots can be created using various statistical software and programming languages. Here are some examples of how to create boxplots in different software:

R: In R, you can use the boxplot() function to create a boxplot. For example:


# Sample data
data <- c(1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20)

# Create the boxplot
boxplot(data, main="Boxplot Example", xlab="Data", ylab="Values")

Excel: In Excel, you can create a boxplot using the built-in chart tools. Select your data, go to the Insert tab, and choose the Boxplot chart type.
Minitab: In Minitab, you can create a boxplot by selecting the Graph menu, choosing Boxplot, and following the prompts to enter your data.

Consider the boxplot below, which shows the distribution of data in Excel:

In this example, the boxplot in Excel provides a clear visualization of the data distribution, making it easier to identify patterns, trends, and outliers.

Boxplots in Real-World Scenarios

Boxplots are widely used in real-world scenarios to visualize and interpret data. Here are some examples of how boxplots are used in different fields:

Healthcare: Boxplots are used to visualize patient data, such as blood pressure readings or cholesterol levels, helping healthcare professionals identify trends and outliers.
Finance: In finance, boxplots are used to visualize stock prices, returns, and other financial metrics, helping investors make informed decisions.
Education: Boxplots are used to visualize student performance data, such as test scores or grades, helping educators identify areas for improvement and track student progress.
Environmental Science: Boxplots are used to visualize environmental data, such as air quality measurements or water pollution levels, helping scientists monitor and analyze environmental conditions.

Consider the boxplot below, which shows the distribution of air quality measurements:

In this example, the boxplot provides a clear visualization of the air quality measurements, making it easier to identify trends, patterns, and outliers. This information can be used to monitor environmental conditions and take appropriate actions to improve air quality.

Conclusion

Boxplots are a valuable tool for data visualization, providing a clear and concise summary of data distribution, central tendency, and variability. By understanding the components of a boxplot and how to interpret them, you can gain insights into your data and make informed decisions. Whether you are analyzing data in healthcare, finance, education, or environmental science, boxplots offer a powerful way to visualize and interpret complex datasets. Consider the boxplot below to see how it can help you understand your data better.
