Connecting Batteries In Parallel

Understanding how to connect batteries in parallel is crucial for anyone working with battery-powered systems. Whether you're a hobbyist, a professional electrician, or an engineer, knowing the ins and outs of parallel battery connections can significantly enhance the performance and longevity of your battery setup. This guide will walk you through the basics of connecting batteries in parallel, the benefits, the potential risks, and best practices to ensure safety and efficiency.

Table of Contents

What is Connecting Batteries in Parallel?

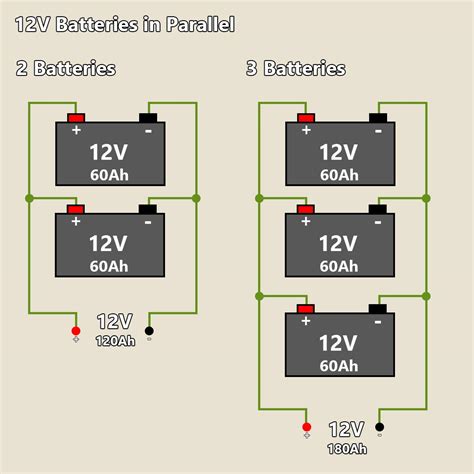

Connecting batteries in parallel involves linking the positive terminals of multiple batteries to each other and the negative terminals to each other. This configuration increases the overall capacity (ampere-hours) of the battery system while keeping the voltage constant. For example, if you connect two 12V, 100Ah batteries in parallel, you will have a 12V, 200Ah battery system.

Benefits of Connecting Batteries in Parallel

There are several advantages to connecting batteries in parallel:

Increased Capacity: The primary benefit is the increased capacity. This means your system can run for a longer period before needing a recharge.
Redundancy: If one battery fails, the others can still power the system, providing a level of redundancy.
Load Sharing: The load is distributed among all batteries, reducing the strain on any single battery.

Potential Risks and Considerations

While connecting batteries in parallel offers numerous benefits, it also comes with potential risks and considerations:

Voltage Mismatch: Batteries with different voltages should not be connected in parallel, as this can cause imbalances and potential damage.
Capacity Mismatch: Batteries with significantly different capacities can lead to uneven charging and discharging, reducing the overall efficiency.
Safety Hazards: Incorrect wiring or using incompatible batteries can result in short circuits, overheating, and even explosions.

Steps to Connect Batteries in Parallel

Follow these steps to safely connect batteries in parallel:

Gather Your Materials: Ensure you have all the necessary components, including batteries, wires, and connectors.
Prepare the Batteries: Make sure all batteries are fully charged and of the same type, voltage, and capacity.
Connect the Positive Terminals: Use a wire to connect the positive terminal of one battery to the positive terminal of the other battery.
Connect the Negative Terminals: Similarly, connect the negative terminal of one battery to the negative terminal of the other battery.
Secure the Connections: Ensure all connections are tight and secure to prevent any loose wires.
Test the System: Before connecting to your main system, test the parallel connection to ensure it is functioning correctly.

🔧 Note: Always wear protective gear, including gloves and safety glasses, when working with batteries.

Best Practices for Connecting Batteries in Parallel

To ensure the safety and efficiency of your parallel battery setup, follow these best practices:

Use Batteries of the Same Type: Always use batteries that are identical in type, voltage, and capacity.
Check for Damage: Inspect each battery for any signs of damage or leakage before connecting.
Use Appropriate Wiring: Ensure the wires and connectors are rated for the current and voltage of your battery system.
Monitor the System: Regularly check the voltage and capacity of each battery to ensure they are balanced.
Avoid Overcharging: Use a charger designed for parallel battery systems to prevent overcharging.

Common Mistakes to Avoid

When connecting batteries in parallel, avoid these common mistakes:

Mismatched Batteries: Do not connect batteries with different voltages or capacities.
Loose Connections: Ensure all connections are tight and secure to prevent short circuits.
Ignoring Safety: Always follow safety protocols, including wearing protective gear and working in a well-ventilated area.

⚠️ Note: Never mix different types of batteries, such as lead-acid and lithium-ion, in a parallel configuration.

Troubleshooting Parallel Battery Connections

If you encounter issues with your parallel battery setup, consider the following troubleshooting steps:

Check Connections: Ensure all wires and connectors are securely attached.
Inspect Batteries: Look for any signs of damage or leakage on the batteries.
Test Individual Batteries: Use a multimeter to check the voltage and capacity of each battery.
Balance the System: If the batteries are not balanced, use a battery balancer to equalize the charge.

Applications of Connecting Batteries in Parallel

Connecting batteries in parallel has various applications across different industries:

Renewable Energy Systems: Solar and wind power systems often use parallel battery configurations to store excess energy.
Electric Vehicles: Some electric vehicles use parallel battery setups to increase range and performance.
Backup Power Systems: Parallel battery connections are commonly used in backup power systems for homes and businesses.

Parallel battery connections are also used in marine applications, off-grid living, and various other scenarios where reliable and extended power supply is crucial.

Safety Precautions

Safety should always be a top priority when working with batteries. Here are some essential safety precautions to keep in mind:

Wear Protective Gear: Always wear gloves, safety glasses, and other protective gear.
Work in a Well-Ventilated Area: Batteries can emit harmful gases, so ensure proper ventilation.
Avoid Short Circuits: Be cautious of any metal objects that could cause a short circuit.
Disconnect Power Sources: Always disconnect the power source before working on the battery system.

🔥 Note: Never attempt to connect batteries in parallel if you are unsure about the process. Consult a professional if needed.

Maintenance Tips for Parallel Battery Systems

Maintaining your parallel battery system is essential for its longevity and performance. Here are some maintenance tips:

Regular Inspections: Periodically check the batteries for any signs of damage or leakage.
Clean Connections: Keep the terminals and connectors clean and free of corrosion.
Balance the Charge: Use a battery balancer to ensure all batteries are equally charged.
Store Properly: If not in use, store the batteries in a cool, dry place away from direct sunlight.

By following these maintenance tips, you can extend the life of your parallel battery system and ensure it operates efficiently.

Understanding Battery Specifications

Before connecting batteries in parallel, it’s crucial to understand their specifications. Here are some key terms and their meanings:

Term	Definition
Voltage (V)	The electrical potential difference between the positive and negative terminals.
Capacity (Ah)	The amount of charge a battery can deliver, measured in ampere-hours.
Internal Resistance	The opposition to the flow of electric current within the battery.
Cycle Life	The number of charge and discharge cycles a battery can undergo before its capacity drops to a certain level.

Understanding these specifications will help you choose the right batteries for your parallel configuration and ensure optimal performance.

Connecting batteries in parallel is a powerful way to enhance the capacity and reliability of your battery-powered systems. By following the guidelines and best practices outlined in this guide, you can safely and effectively connect batteries in parallel, ensuring your system runs smoothly and efficiently. Whether you’re powering a renewable energy system, an electric vehicle, or a backup power supply, understanding the principles of parallel battery connections is essential for success.
