Conduit Bending Chart

Conduit bending is a critical skill in the electrical trade, ensuring that electrical conduits are properly routed and protected. One of the essential tools for this task is the Conduit Bending Chart. This chart provides a comprehensive guide to bending conduits of various sizes and types, ensuring that bends are accurate and compliant with industry standards. Understanding how to use a Conduit Bending Chart can significantly enhance the efficiency and safety of electrical installations.

Table of Contents

Understanding Conduit Bending

Conduit bending involves shaping electrical conduits to navigate around obstacles and fit into specific spaces. This process is crucial for protecting electrical wires and ensuring that they are properly supported. The Conduit Bending Chart is a valuable resource that helps electricians determine the correct bend radius, offset, and other critical measurements for different types of conduits.

Types of Conduits

There are several types of conduits commonly used in electrical installations, each with its own bending characteristics:

Electrical Metallic Tubing (EMT): Lightweight and flexible, EMT is commonly used in commercial and industrial settings.
Rigid Metal Conduit (RMC): Known for its durability and strength, RMC is often used in harsh environments.
Intermediate Metal Conduit (IMC): Similar to RMC but with thinner walls, IMC offers a balance between strength and flexibility.
PVC Conduit: Lightweight and corrosion-resistant, PVC conduit is ideal for outdoor and wet locations.

Reading a Conduit Bending Chart

A Conduit Bending Chart typically includes information on bend radius, offset, and take-up for different conduit sizes and types. Here’s how to read and use a Conduit Bending Chart effectively:

1. Identify the Conduit Size: Determine the size of the conduit you are working with. Conduits are measured by their outer diameter (OD) and are available in various sizes, such as ½ inch, ¾ inch, 1 inch, etc.

2. Determine the Bend Radius: The bend radius is the distance from the center of the conduit to the center of the bend. This measurement is crucial for ensuring that the conduit does not kink or deform during bending.

3. Calculate the Offset: The offset is the distance between the centerline of the conduit before and after the bend. This measurement is essential for ensuring that the conduit fits correctly into the desired space.

4. Use the Take-Up Measurement: Take-up refers to the length of conduit that is lost during the bending process. This measurement helps in determining the total length of conduit needed for a specific installation.

5. Apply the Chart: Use the Conduit Bending Chart to find the specific measurements for your conduit size and type. For example, if you are working with a ½ inch EMT conduit, the chart will provide the bend radius, offset, and take-up for that specific size.

🔍 Note: Always double-check your measurements and calculations to ensure accuracy and safety.

Common Bending Techniques

There are several common bending techniques used in conduit bending, each with its own advantages and applications:

Offset Bends: Used to change the direction of the conduit while maintaining a consistent offset.
90-Degree Bends: Commonly used to change the direction of the conduit by 90 degrees.
45-Degree Bends: Used to change the direction of the conduit by 45 degrees, often in combination with other bends.

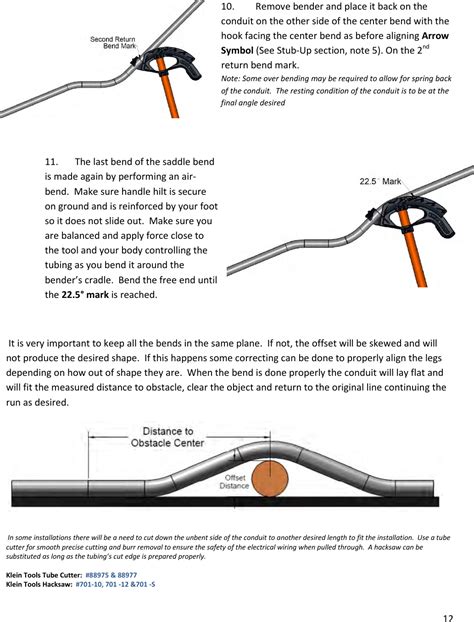

Saddle Bends: Used to create a smooth transition around obstacles or corners.

Using a Conduit Bending Chart for Offset Bends

Offset bends are one of the most common types of bends in conduit work. Here’s how to use a Conduit Bending Chart to calculate an offset bend:

1. Determine the Offset Distance: Measure the distance between the centerline of the conduit before and after the bend.

2. Calculate the Bend Radius: Use the Conduit Bending Chart to find the bend radius for your conduit size and type.

3. Measure the Take-Up: Determine the length of conduit that will be lost during the bending process.

4. Mark the Conduit: Use a marker or chalk to mark the points on the conduit where the bend will occur.

5. Bend the Conduit: Use a conduit bender to create the bend, ensuring that you follow the measurements from the Conduit Bending Chart.

🛠️ Note: Always wear appropriate safety gear, including gloves and safety glasses, when bending conduits.

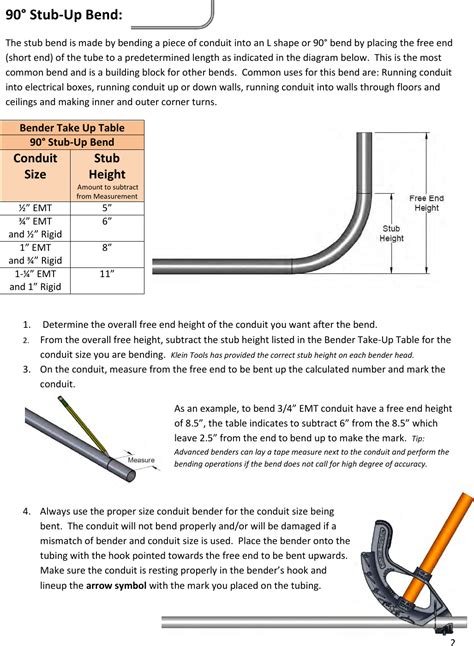

Example: Calculating a 90-Degree Bend

Let’s walk through an example of calculating a 90-degree bend using a Conduit Bending Chart. Assume you are working with a ¾ inch EMT conduit and need to create a 90-degree bend.

1. Identify the Conduit Size: ¾ inch EMT.

2. Determine the Bend Radius: According to the Conduit Bending Chart, the bend radius for a ¾ inch EMT conduit is typically 5 times the conduit diameter, which is 3.75 inches.

3. Calculate the Take-Up: The take-up for a 90-degree bend in a ¾ inch EMT conduit is approximately 1.5 inches.

4. Mark the Conduit: Mark the points on the conduit where the bend will occur, ensuring that the bend radius is maintained.

5. Bend the Conduit: Use a conduit bender to create the 90-degree bend, following the measurements from the Conduit Bending Chart.

Here is a sample Conduit Bending Chart for reference:

Conduit Size	Bend Radius (inches)	Offset (inches)	Take-Up (inches)
½ inch EMT	2.5	1.25	0.75
¾ inch EMT	3.75	1.875	1.5
1 inch EMT	5	2.5	2.25
1¼ inch EMT	6.25	3.125	3

Importance of Accurate Bending

Accurate conduit bending is crucial for several reasons:

Safety: Properly bent conduits ensure that electrical wires are protected and supported, reducing the risk of electrical hazards.
Efficiency: Accurate bends minimize the need for adjustments and rework, saving time and resources.
Compliance: Following industry standards and regulations ensures that electrical installations are safe and compliant with local codes.

Using a Conduit Bending Chart helps achieve accurate bends by providing precise measurements and guidelines. This ensures that conduits are bent correctly, reducing the risk of errors and improving the overall quality of the installation.

In addition to using a Conduit Bending Chart, it’s essential to have the right tools for the job. Common tools used in conduit bending include:

Conduit Benders: Manual or hydraulic tools designed to bend conduits to the desired shape.
Marking Tools: Markers, chalk, or tape for marking the points on the conduit where the bend will occur.
Measuring Tools: Tape measures, calipers, or other measuring devices to ensure accurate measurements.

By combining the use of a Conduit Bending Chart with the right tools and techniques, electricians can achieve precise and efficient conduit bends, ensuring the safety and reliability of electrical installations.

In conclusion, the Conduit Bending Chart is an invaluable resource for electricians, providing the necessary measurements and guidelines for accurate conduit bending. Understanding how to use this chart, along with the right tools and techniques, ensures that electrical installations are safe, efficient, and compliant with industry standards. Whether you are a seasoned professional or a beginner in the electrical trade, mastering the use of a Conduit Bending Chart is essential for success in conduit bending.
