Concrete saw cut patterns are essential for controlling cracks in concrete slabs. By strategically placing cuts, contractors can manage the natural shrinkage and expansion of concrete, ensuring a durable and aesthetically pleasing finish. This process is crucial for both residential and commercial projects, as it helps prevent unsightly and potentially damaging cracks from forming.
Understanding Concrete Saw Cut Patterns
Concrete saw cut patterns involve making controlled cuts in freshly poured concrete to create joints. These joints allow the concrete to crack in a controlled manner, preventing random and unsightly cracks from appearing. The primary types of saw cut patterns include:
- Control Joints: These are cuts made to control where the concrete will crack. They are typically spaced at intervals based on the slab's thickness and the type of concrete used.
- Expansion Joints: These joints allow for the expansion and contraction of concrete due to temperature changes. They are usually filled with a flexible material to accommodate movement.
- Isolation Joints: These joints separate the concrete slab from other structures, such as walls or columns, to prevent cracking due to differential movement.
Importance of Concrete Saw Cut Patterns
Implementing a well-planned concrete saw cut pattern is vital for several reasons:
- Preventing Random Cracks: By creating controlled joints, you can prevent random cracks from forming, which can be unsightly and structurally weak.
- Enhancing Durability: Controlled cracking helps maintain the structural integrity of the concrete slab, making it more durable over time.
- Improving Aesthetics: A well-designed saw cut pattern ensures a neat and uniform appearance, enhancing the overall aesthetics of the project.
- Reducing Maintenance: Properly placed joints reduce the need for future repairs, saving time and money on maintenance.
Designing a Concrete Saw Cut Pattern
Designing an effective concrete saw cut pattern involves several steps. Here’s a detailed guide to help you through the process:
Assessing the Project Requirements
Before designing the saw cut pattern, assess the project requirements. Consider factors such as:
- The size and thickness of the concrete slab.
- The type of concrete and its expected shrinkage.
- The environmental conditions, including temperature and humidity.
- The intended use of the concrete slab (e.g., residential, commercial, industrial).
Determining Joint Spacing
Joint spacing is crucial for an effective saw cut pattern. The general rule is to space joints at intervals that are 24 to 30 times the slab thickness. For example, a 4-inch thick slab should have joints spaced 96 to 120 inches apart. However, this can vary based on the specific project requirements.
Choosing the Right Tools
Selecting the right tools is essential for creating precise and effective saw cuts. Common tools include:

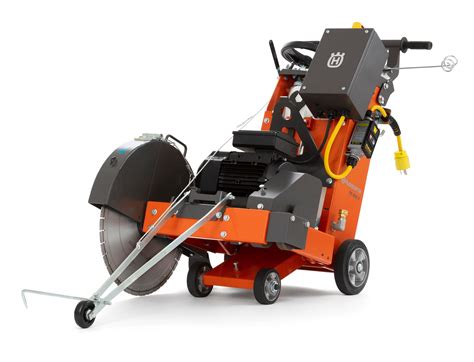

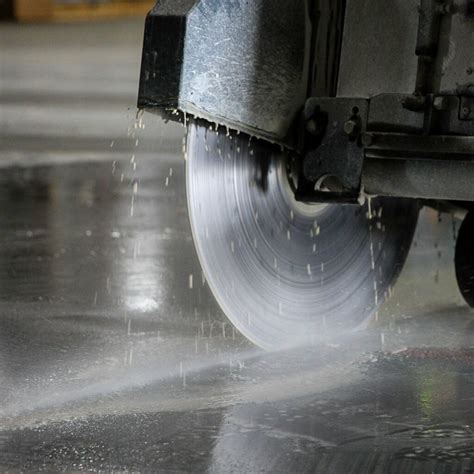

- Walk-Behind Saw: Ideal for larger projects and thicker slabs.

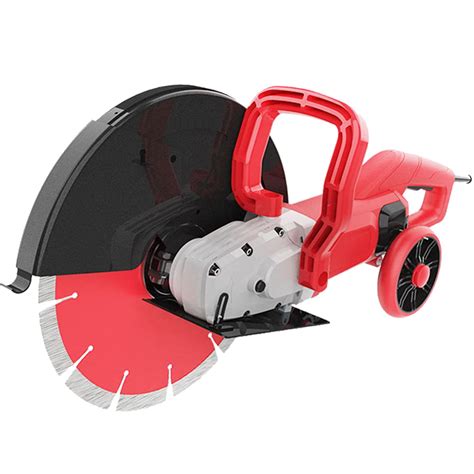

- Handheld Saw: Suitable for smaller projects and detailed work.
- Early-Entry Saw: Used for cutting concrete soon after it has been poured, typically within 4 to 24 hours.
Making the Cuts
Once the design is finalized and the tools are ready, it’s time to make the cuts. Here are the steps to follow:
- Mark the Cut Lines: Use chalk or a marking tool to clearly mark the cut lines on the concrete surface.
- Set Up the Saw: Position the saw along the marked line and ensure it is properly aligned.
- Make the Cut: Slowly and steadily cut along the marked line, maintaining a consistent depth. For control joints, the cut should be about one-quarter the depth of the slab.
- Clean the Joints: Remove any debris from the joints and ensure they are clean and free of obstructions.
🔍 Note: Always wear appropriate safety gear, including gloves, safety glasses, and ear protection, when operating a concrete saw.
Common Concrete Saw Cut Patterns
There are several common concrete saw cut patterns used in various projects. Here are a few examples:
Grid Pattern

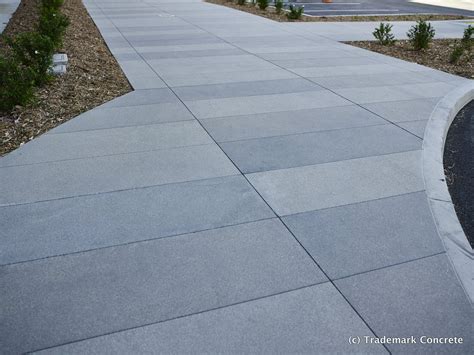

A grid pattern involves creating a series of intersecting cuts that form a grid. This pattern is commonly used in large slabs, such as parking lots and industrial floors. The grid pattern helps distribute stress evenly across the slab, reducing the risk of random cracking.
Random Pattern

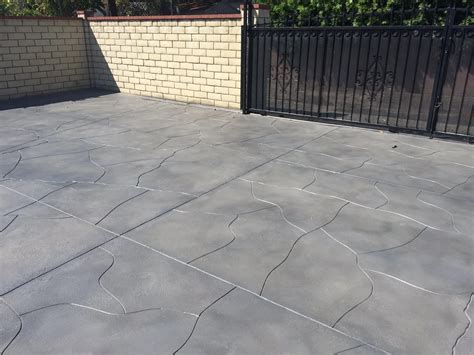

A random pattern involves making cuts at irregular intervals and angles. This pattern is often used in decorative concrete applications, such as patios and walkways. The random pattern can create a unique and visually appealing design while still controlling cracking.
Linear Pattern

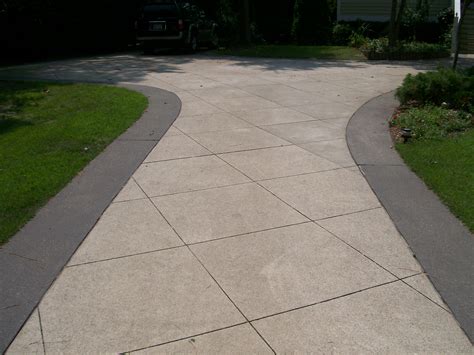

A linear pattern involves making straight cuts parallel to each other. This pattern is commonly used in residential driveways and sidewalks. The linear pattern is simple to implement and effective in controlling cracks in smaller slabs.
Best Practices for Concrete Saw Cut Patterns
To ensure the best results, follow these best practices when implementing a concrete saw cut pattern:
- Plan Ahead: Carefully plan the saw cut pattern before pouring the concrete. Consider the project requirements and environmental conditions.
- Use High-Quality Tools: Invest in high-quality saws and blades to ensure precise and clean cuts.
- Follow Manufacturer Guidelines: Always follow the manufacturer’s guidelines for the concrete mix and sawing equipment.
- Maintain Consistency: Ensure that the cuts are made at consistent depths and intervals to maintain the structural integrity of the slab.
- Inspect Regularly: Regularly inspect the saw cut pattern to ensure it is performing as intended and make any necessary adjustments.
Troubleshooting Common Issues
Even with careful planning, issues can arise with concrete saw cut patterns. Here are some common problems and solutions:
Cracks Outside of Joints
If cracks appear outside of the designated joints, it may indicate that the joints are too far apart or that the concrete mix is not suitable for the project. Consider reducing the joint spacing or adjusting the concrete mix to better control shrinkage.
Inconsistent Joint Depth
Inconsistent joint depth can weaken the structural integrity of the slab. Ensure that the saw is properly calibrated and that the cuts are made at a consistent depth. Regularly check the saw’s performance and make adjustments as needed.
Debris in Joints
Debris in the joints can prevent them from functioning properly. Clean the joints thoroughly after cutting and remove any debris that may accumulate over time. Consider using joint sealants to keep debris out and maintain the joints’ effectiveness.
Case Studies
To illustrate the effectiveness of concrete saw cut patterns, let’s look at a couple of case studies:
Residential Driveway
A homeowner wanted to install a new concrete driveway. The contractor designed a linear saw cut pattern with joints spaced 10 feet apart. The cuts were made using a walk-behind saw, and the joints were sealed with a flexible sealant. The driveway has remained crack-free for over five years, demonstrating the effectiveness of the saw cut pattern.
Commercial Parking Lot
A commercial parking lot required a durable and long-lasting surface. The contractor opted for a grid saw cut pattern with joints spaced 15 feet apart. The cuts were made using an early-entry saw, and the joints were filled with a flexible material. The parking lot has withstood heavy traffic and extreme weather conditions without significant cracking, highlighting the benefits of a well-designed saw cut pattern.
In both cases, the use of a strategic concrete saw cut pattern ensured the longevity and durability of the concrete slabs, preventing unsightly and potentially damaging cracks.
In conclusion, implementing a well-planned concrete saw cut pattern is essential for controlling cracks in concrete slabs. By understanding the different types of joints, designing an effective pattern, and following best practices, contractors can ensure durable and aesthetically pleasing concrete surfaces. Regular inspection and maintenance are also crucial for maintaining the integrity of the saw cut pattern over time. Whether for residential or commercial projects, a thoughtful approach to concrete saw cut patterns can significantly enhance the quality and longevity of concrete structures.
