Concrete Sack Retaining Wall

Building a sturdy and aesthetically pleasing retaining wall is a common project for homeowners looking to manage slopes, prevent erosion, and create usable outdoor spaces. One effective method for constructing such a wall is by using a concrete sack retaining wall. This approach offers durability, flexibility, and a natural, earthy appearance that blends well with various landscapes. This guide will walk you through the process of building a concrete sack retaining wall, from planning to completion.

Table of Contents

Planning Your Concrete Sack Retaining Wall

Before you begin any construction, thorough planning is essential. This includes assessing the site, determining the wall's dimensions, and gathering the necessary materials.

Site Assessment

Evaluate the area where you plan to build the wall. Consider factors such as soil type, drainage, and the slope of the land. Proper site assessment helps ensure that your wall will be stable and effective.

Determining Dimensions

Measure the length and height of the wall you need. For a concrete sack retaining wall, the height is typically limited to about 4 feet (1.2 meters) without additional support structures. For taller walls, consider using geogrid reinforcement or other stabilizing methods.

Gathering Materials

You will need the following materials:

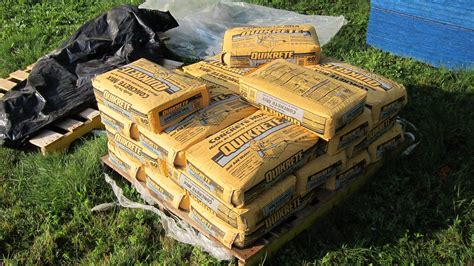

Concrete sacks (burlap or geotextile bags)
Concrete mix
Water
Level
Shovel
Rake
Tape measure
Compacting equipment (optional)

Preparing the Site

Site preparation is crucial for the stability and longevity of your concrete sack retaining wall. Follow these steps to ensure a solid foundation.

Clearing the Area

Remove any vegetation, rocks, and debris from the area where the wall will be built. This ensures a clean and level surface for construction.

Excavating the Base

Dig a trench for the base of the wall. The trench should be about 12 inches (30 cm) wide and 6 inches (15 cm) deep. This will provide a stable foundation for the wall.

Compacting the Soil

Compact the soil in the trench using a plate compactor or a hand tamper. This step is essential for preventing settling and ensuring the wall's stability.

Building the Concrete Sack Retaining Wall

With the site prepared, you can begin constructing the wall. Follow these steps for a successful build.

Filling the Concrete Sacks

Fill the concrete sacks with a dry concrete mix. Each sack should be about two-thirds full to allow for settling and compaction. Use a shovel to distribute the mix evenly within the sack.

Placing the Sacks

Place the filled sacks in the trench, ensuring they are level and aligned. Use a level to check the alignment and adjust as necessary. Start at one end of the trench and work your way along, placing each sack tightly against the previous one.

Adding Water

Once the sacks are in place, add water to the concrete mix. Use a hose or watering can to evenly distribute the water over the sacks. The concrete will begin to set, binding the sacks together and forming a solid wall.

Compacting the Sacks

Use a plate compactor or a hand tamper to compact the sacks. This helps to settle the concrete and create a dense, stable wall. Be sure to compact the sacks from the top down, applying even pressure.

Building Up the Wall

Continue adding layers of concrete sacks, following the same process of filling, placing, adding water, and compacting. Each layer should be slightly offset from the one below to create a staggered pattern, which enhances stability.

Finishing Touches

Once the wall reaches the desired height, you can add finishing touches to enhance its appearance and functionality.

Backfilling

Backfill the area behind the wall with compacted soil. This helps to stabilize the wall and prevent it from shifting. Ensure the backfill is well-compacted to avoid settling.

Drainage

Install a drainage system to prevent water buildup behind the wall. This can include perforated pipes or drainage fabric. Proper drainage is essential for the longevity of your concrete sack retaining wall.

Landscaping

Add landscaping elements such as plants, mulch, or stones to enhance the appearance of the wall. Choose plants that are suitable for the local climate and soil conditions.

📝 Note: Ensure that the drainage system is properly installed to prevent water buildup, which can weaken the wall over time.

📝 Note: Regularly inspect the wall for signs of settling or erosion and address any issues promptly to maintain its stability.

Building a concrete sack retaining wall is a rewarding project that can significantly enhance your outdoor space. By following these steps and taking the necessary precautions, you can create a durable and attractive wall that will serve you for years to come. The key to success lies in thorough planning, proper site preparation, and careful construction. With the right materials and techniques, your concrete sack retaining wall will be a functional and aesthetically pleasing addition to your landscape.
