Understanding the distinction between concave vs convex polygon is fundamental in geometry and has wide-ranging applications in various fields such as computer graphics, robotics, and architecture. This blog post delves into the definitions, properties, and differences between concave and convex polygons, providing a comprehensive guide to help you grasp these concepts.
What is a Polygon?
A polygon is a two-dimensional shape formed by connecting a finite number of straight line segments, known as sides or edges, to form a closed chain or circuit. The points where the sides meet are called vertices or corners. Polygons can be classified based on the number of sides they have, such as triangles (3 sides), quadrilaterals (4 sides), pentagons (5 sides), and so on.
Understanding Convex Polygons
A convex polygon is a type of polygon where all interior angles are less than 180 degrees, and any line segment drawn between two points within the polygon lies entirely inside or on the boundary of the polygon. This means that a convex polygon “bulges out” rather than “caves in.”
Key properties of convex polygons include:
- All interior angles are less than 180 degrees.
- Any line segment connecting two points inside the polygon lies entirely within the polygon.
- The sum of the exterior angles is always 360 degrees.
Examples of convex polygons include squares, rectangles, and regular pentagons.
Understanding Concave Polygons
A concave polygon, on the other hand, is a polygon that has at least one interior angle greater than 180 degrees. This causes the polygon to “cave in” or have an indentation. In a concave polygon, there exists at least one line segment connecting two points within the polygon that lies partially outside the polygon.
Key properties of concave polygons include:
- At least one interior angle is greater than 180 degrees.
- There exists at least one line segment connecting two points inside the polygon that lies partially outside the polygon.
- The sum of the exterior angles is still 360 degrees, but the distribution of these angles is different from convex polygons.

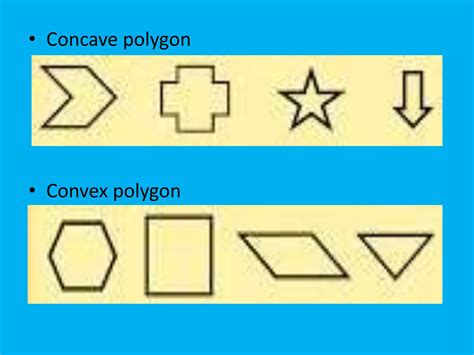

Examples of concave polygons include an indented pentagon or a star-shaped polygon.
Concave Vs Convex Polygon: Key Differences
To better understand the concave vs convex polygon distinction, let’s compare their key differences:
| Property | Convex Polygon | Concave Polygon |
|---|---|---|
| Interior Angles | All angles are less than 180 degrees. | At least one angle is greater than 180 degrees. |
| Line Segment Between Points | Any line segment between two points lies entirely inside the polygon. | At least one line segment between two points lies partially outside the polygon. |
| Shape | Bulges out; no indentations. | Caves in; has indentations. |
| Examples | Squares, rectangles, regular pentagons. | Indented pentagons, star-shaped polygons. |
Applications of Convex and Concave Polygons
The understanding of concave vs convex polygon is crucial in various fields. Here are some applications:
- Computer Graphics: Convex polygons are often used in rendering and collision detection due to their simpler geometry. Concave polygons, while more complex, are used in modeling irregular shapes.
- Robotics: Convex polygons are used in path planning and obstacle avoidance algorithms. Concave polygons are used in modeling complex environments.
- Architecture: Convex shapes are commonly used in building design for their stability and simplicity. Concave shapes are used for aesthetic purposes and to create unique structures.
Identifying Convex and Concave Polygons
Identifying whether a polygon is convex or concave can be done through a few methods:
- Interior Angle Check: Measure all interior angles. If any angle is greater than 180 degrees, the polygon is concave.

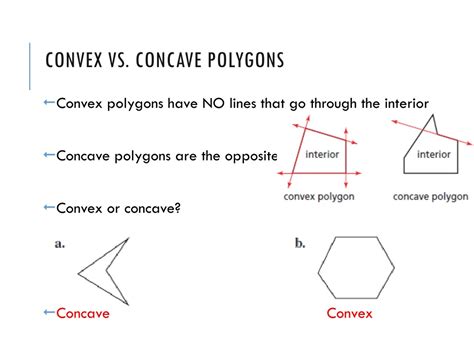

- Line Segment Test: Draw line segments between various points within the polygon. If any segment lies partially outside the polygon, it is concave.
- Visual Inspection: Visually inspect the polygon for indentations. If present, the polygon is concave.
💡 Note: For complex polygons, computational methods and algorithms can be used to determine convexity or concavity.
Examples of Convex and Concave Polygons
To further illustrate the concave vs convex polygon distinction, let’s look at some examples:

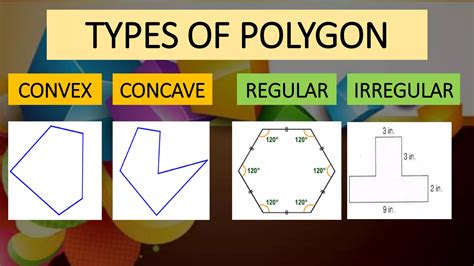

In the image above, the polygon on the left is convex, while the polygon on the right is concave. Notice how the concave polygon has an indentation, causing one of its interior angles to be greater than 180 degrees.
Understanding the properties and differences between concave and convex polygons is essential for various applications in geometry, computer graphics, robotics, and architecture. By recognizing the key characteristics of each type, you can better analyze and utilize polygons in your projects.
