Concave Mirror Mirror

Exploring the fascinating world of optics, one cannot overlook the significance of the concave mirror. A concave mirror, often referred to as a concave mirror mirror, is a spherical mirror that curves inward, reflecting light inward to a focal point. This unique property makes it a versatile tool in various applications, from telescopes and microscopes to automotive headlights and solar concentrators. Understanding the principles and applications of a concave mirror mirror can provide insights into how light behaves and how it can be manipulated for practical use.

Table of Contents

Understanding the Basics of a Concave Mirror Mirror

A concave mirror mirror is characterized by its inward-curving surface, which causes parallel rays of light to converge at a single point known as the focal point. The distance from the mirror to the focal point is called the focal length. The curvature of the mirror determines its focal length, with more curved mirrors having shorter focal lengths.

There are several key terms associated with concave mirrors:

Focal Point (F): The point where parallel rays of light converge after reflection.
Focal Length (f): The distance between the mirror and the focal point.
Center of Curvature (C): The center of the sphere of which the mirror is a part.
Radius of Curvature (R): The radius of the sphere of which the mirror is a part.
Principal Axis: The line passing through the center of curvature and the pole of the mirror.

Types of Concave Mirror Mirrors

Concave mirrors can be categorized based on their shape and the position of the object relative to the focal point. The two primary types are:

Parabolic Concave Mirror: This type has a parabolic shape, which ensures that all incoming parallel rays converge at a single focal point without spherical aberration. Parabolic concave mirrors are commonly used in telescopes and satellite dishes.
Spherical Concave Mirror: This type has a spherical shape and is simpler to manufacture. However, it suffers from spherical aberration, where rays farther from the principal axis do not converge at the same point as those closer to the axis. Spherical concave mirrors are often used in applications where cost is a factor, such as in automotive headlights.

Applications of Concave Mirror Mirrors

The unique properties of concave mirror mirrors make them indispensable in various fields. Some of the most notable applications include:

Telescopes: Concave mirrors are used in reflecting telescopes to gather and focus light from distant stars and galaxies. The large aperture of these mirrors allows for the collection of more light, resulting in clearer and more detailed images.
Microscopes: In some types of microscopes, concave mirrors are used to illuminate the specimen, providing a bright and clear image.
Automotive Headlights: Concave mirrors are used in headlights to focus the light from the bulb, creating a strong and directed beam of light.

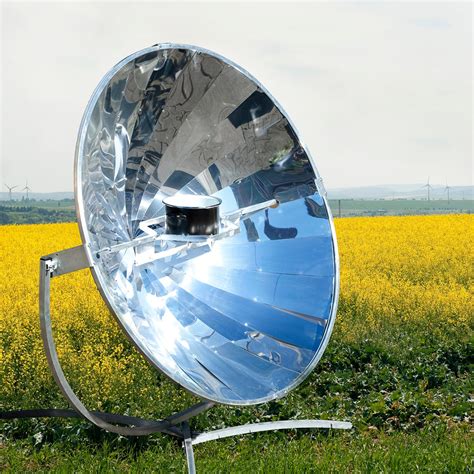

Solar Concentrators: Concave mirrors are used to concentrate sunlight onto a small area, generating heat or electricity. This is particularly useful in solar power plants and solar cookers.
Dentistry and Medicine: Concave mirrors are used in dental and medical instruments to provide a magnified view of the area being examined.

Optical Properties of Concave Mirror Mirrors

The optical properties of a concave mirror mirror are governed by the laws of reflection. When light rays strike the concave surface, they are reflected back in such a way that they converge at the focal point. The behavior of light rays depends on the position of the object relative to the focal point:

Object Beyond the Center of Curvature (C): The image formed is real, inverted, and smaller than the object.
Object at the Center of Curvature (C): The image formed is real, inverted, and of the same size as the object.
Object Between the Center of Curvature (C) and the Focal Point (F): The image formed is real, inverted, and larger than the object.
Object at the Focal Point (F): The image formed is real, inverted, and highly magnified.
Object Between the Focal Point (F) and the Mirror: The image formed is virtual, upright, and magnified.

These properties make concave mirror mirrors versatile tools in various optical systems. The ability to form real and inverted images is particularly useful in applications where precise focusing is required.

Focal Length and Magnification

The focal length of a concave mirror mirror is a critical parameter that determines its magnification power. The magnification (m) of a concave mirror is given by the formula:

m = -v/u

where v is the image distance and u is the object distance. The negative sign indicates that the image is inverted when it is real.

To calculate the focal length (f), the mirror formula is used:

1/f = 1/v + 1/u

where f is the focal length, v is the image distance, and u is the object distance. This formula helps in determining the position and size of the image formed by a concave mirror mirror.

💡 Note: The focal length of a concave mirror mirror can be measured experimentally by focusing a distant object (such as a star) and measuring the distance from the mirror to the focal point.

Spherical Aberration in Concave Mirror Mirrors

Spherical aberration is a common issue in spherical concave mirrors, where rays farther from the principal axis do not converge at the same point as those closer to the axis. This results in a blurred image. Parabolic concave mirrors, on the other hand, do not suffer from spherical aberration because their shape ensures that all incoming parallel rays converge at a single focal point.

To minimize spherical aberration in spherical concave mirrors, the following techniques can be employed:

Stopping Down: Reducing the aperture of the mirror to limit the amount of light entering from the edges, thereby reducing aberration.
Using a Parabolic Mirror: Replacing the spherical mirror with a parabolic one to eliminate spherical aberration.
Corrective Lenses: Using additional lenses to correct the aberration caused by the spherical mirror.

Real-World Examples of Concave Mirror Mirrors

Concave mirror mirrors are used in a wide range of real-world applications. Here are a few examples:

Telescopes: The Hubble Space Telescope uses a large concave mirror to gather light from distant galaxies, providing detailed images of the universe.
Automotive Headlights: Modern car headlights often use concave mirrors to focus light from the bulb, creating a bright and directed beam.
Solar Power Plants: Large concave mirrors are used to concentrate sunlight onto a small area, generating heat that is converted into electricity.
Dental Instruments: Concave mirrors are used in dental instruments to provide a magnified view of the teeth, aiding in precise dental work.

These examples illustrate the versatility and importance of concave mirror mirrors in various fields.

Experimental Setup for Studying Concave Mirror Mirrors

To study the properties of a concave mirror mirror, a simple experimental setup can be used. The setup typically includes:

A concave mirror
A stand to hold the mirror
A screen or white paper to observe the image
A light source (such as a candle or a laser pointer)
A ruler or measuring tape

The steps to perform the experiment are as follows:

Place the concave mirror on the stand and position it so that it faces the light source.
Adjust the position of the screen or white paper to observe the image formed by the mirror.
Move the light source to different positions relative to the mirror and observe the changes in the image.
Measure the distance between the mirror and the image (image distance, v) and the distance between the mirror and the light source (object distance, u).
Use the mirror formula to calculate the focal length (f) of the mirror.

💡 Note: Ensure that the light source is stable and the mirror is securely fixed to avoid any movement during the experiment.

Conclusion

Concave mirror mirrors are essential tools in the field of optics, with a wide range of applications from telescopes to automotive headlights. Understanding their optical properties, such as focal length and magnification, is crucial for their effective use. By minimizing spherical aberration and using appropriate experimental setups, one can fully harness the potential of concave mirror mirrors. Their ability to focus light makes them indispensable in various scientific and industrial applications, contributing to advancements in technology and our understanding of the universe.
