Colors In R

In the world of data visualization and statistical analysis, the ability to effectively use colors in R is crucial. R, a powerful programming language and environment for statistical computing and graphics, offers a wide range of tools and functions to manipulate and visualize data. One of the most visually appealing aspects of R is its capability to handle colors, which can significantly enhance the clarity and impact of your visualizations.

Table of Contents

Understanding Colors in R

Before diving into the specifics of how to use colors in R, it’s important to understand the basics of color representation. In R, colors can be specified in several ways, including:

Named colors (e.g., “red”, “blue”, “green”)
Hexadecimal codes (e.g., “#FF5733”)
RGB values (e.g., rgb(255, 87, 51))
HSV values (e.g., hsv(0, 1, 1))

Each of these methods has its own advantages and use cases, and understanding them can help you choose the right color for your visualizations.

Basic Color Functions in R

R provides several built-in functions to work with colors in R. Some of the most commonly used functions include:

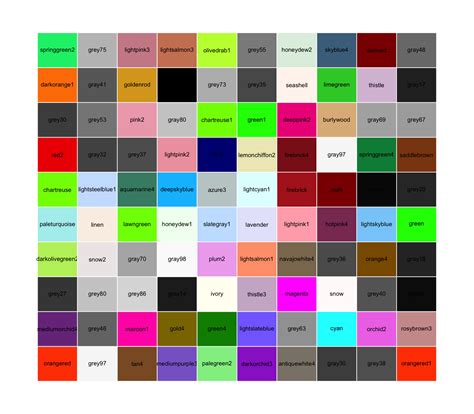

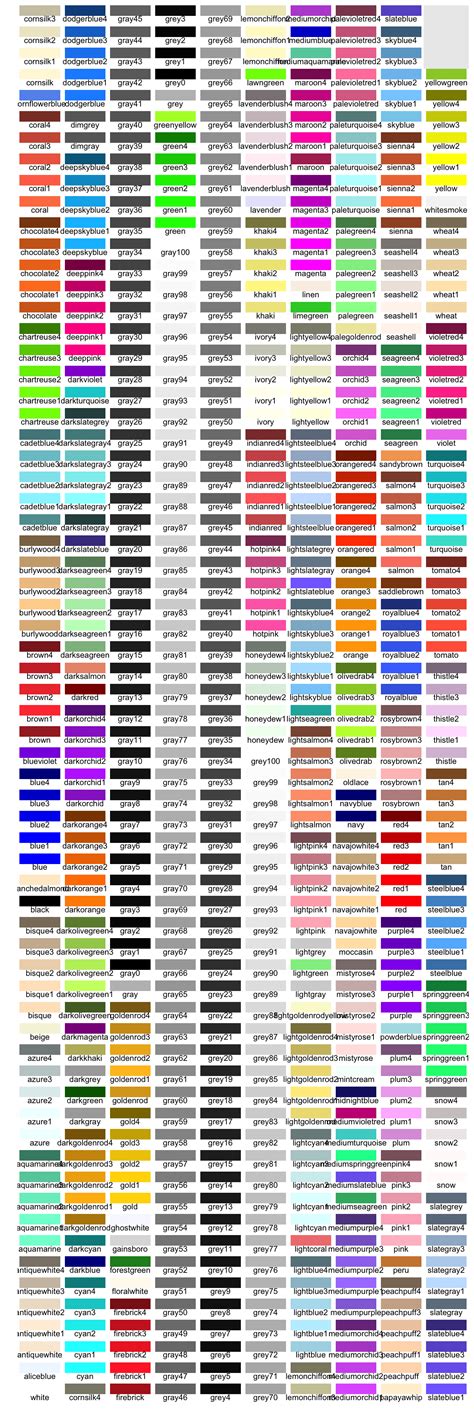

colors(): Returns a vector of 657 named colors.
rainbow(): Generates a vector of colors forming a rainbow.
heat.colors(): Generates a vector of colors suitable for heat maps.
terrain.colors(): Generates a vector of colors suitable for terrain maps.
topo.colors(): Generates a vector of colors suitable for topographic maps.

These functions are particularly useful for creating color palettes that are visually appealing and informative.

Creating Custom Color Palettes

While the built-in color functions are useful, there are times when you need more control over the colors in your visualizations. In such cases, you can create custom color palettes using the colorRampPalette() function. This function allows you to specify a range of colors and interpolate between them to create a smooth gradient.

Here is an example of how to create a custom color palette:

# Define a custom color palette
custom_palette <- colorRampPalette(c(“blue”, “green”, “yellow”, “red”))



custom_colors <- custom_palette(100)



plot(1:100, 1:100, col = custom_colors, pch = 19, cex = 2)

In this example, the colorRampPalette() function is used to create a palette that transitions smoothly from blue to green to yellow to red. The custom_palette() function then generates a vector of 100 colors from this palette, which are used to color the points in the plot.

Using Colors in Plots

One of the most common uses of colors in R is in creating plots. R’s plotting system, particularly the base graphics system, provides several ways to specify colors for different elements of a plot. For example, you can use the col parameter to specify the color of points, lines, and other graphical elements.

Here is an example of how to use colors in a scatter plot:

# Generate some sample data
set.seed(123)
x <- rnorm(100)
y <- rnorm(100)



plot(x, y, col = rainbow(100), pch = 19, cex = 2)

In this example, the rainbow() function is used to generate a vector of 100 colors, which are then used to color the points in the scatter plot. The pch parameter specifies the point character, and the cex parameter adjusts the size of the points.

Advanced Color Manipulation with ggplot2

For more advanced color manipulation, the ggplot2 package is an excellent choice. ggplot2 is a powerful and flexible plotting system that allows you to create complex and visually appealing plots with ease. One of the key features of ggplot2 is its ability to handle colors in R in a more intuitive and customizable way.

Here is an example of how to use colors in a ggplot2 scatter plot:

# Load the ggplot2 package
library(ggplot2)



set.seed(123)
data <- data.frame(x = rnorm(100), y = rnorm(100), color = rainbow(100))



ggplot(data, aes(x = x, y = y, color = color)) +
  geom_point(size = 3) +
  scale_color_identity() +
  theme_minimal()

In this example, the ggplot() function is used to create a scatter plot with colored points. The aes() function maps the color aesthetic to the color column in the data frame, and the geom_point() function specifies that points should be used to represent the data. The scale_color_identity() function ensures that the colors are interpreted correctly, and the theme_minimal() function applies a minimal theme to the plot.

Color Blinds and Accessibility

When using colors in R, it’s important to consider accessibility, particularly for individuals with color vision deficiencies. Using color schemes that are distinguishable by people with color blindness can make your visualizations more inclusive. The RColorBrewer package provides a set of color palettes that are designed to be colorblind-friendly.

Here is an example of how to use the RColorBrewer package to create a colorblind-friendly plot:

# Load the RColorBrewer package
library(RColorBrewer)



set.seed(123)
data <- data.frame(x = rnorm(100), y = rnorm(100), group = factor(rep(1:5, 20)))



ggplot(data, aes(x = x, y = y, color = group)) +
  geom_point(size = 3) +
  scale_color_brewer(palette = “Set1”) +
  theme_minimal()

In this example, the scale_color_brewer() function is used to apply a colorblind-friendly palette from the RColorBrewer package. The palette = “Set1” parameter specifies the color palette to use, which is designed to be distinguishable by individuals with color vision deficiencies.

📝 Note: Always test your visualizations with colorblind simulation tools to ensure they are accessible to a wide audience.

Color Gradients and Heatmaps

Color gradients are particularly useful for creating heatmaps, which are visual representations of data where values are depicted by colors. In R, you can create heatmaps using the heatmap() function from the stats package or the ggplot2 package. The colorRampPalette() function can be used to create custom color gradients for heatmaps.

Here is an example of how to create a heatmap with a custom color gradient:

# Load the ggplot2 package
library(ggplot2)



set.seed(123)
data <- matrix(rnorm(100), nrow = 10, ncol = 10)



custom_gradient <- colorRampPalette(c(“blue”, “white”, “red”))



ggplot(data = as.data.frame(data), aes(x = 1:ncol(data), y = 1:nrow(data), fill = as.vector(data))) +
  geom_tile() +
  scale_fill_gradient2(low = “blue”, mid = “white”, high = “red”, midpoint = 0, limit = c(-3, 3), space = “Lab”, name=“”) +
  theme_minimal() +
  theme(axis.text.x = element_blank(), axis.text.y = element_blank(), axis.ticks = element_blank())

In this example, the colorRampPalette() function is used to create a custom color gradient that transitions from blue to white to red. The ggplot() function is then used to create a heatmap, with the geom_tile() function specifying that tiles should be used to represent the data. The scale_fill_gradient2() function applies the custom color gradient to the heatmap.

Interactive Visualizations with Plotly

For interactive visualizations, the Plotly package is a powerful tool. Plotly allows you to create interactive plots that can be explored and manipulated by the user. When using colors in R with Plotly, you can specify colors in the same way as with other plotting systems, but with the added benefit of interactivity.

Here is an example of how to create an interactive scatter plot with Plotly:

# Load the plotly package
library(plotly)



set.seed(123)
data <- data.frame(x = rnorm(100), y = rnorm(100), color = rainbow(100))



p <- plot_ly(data, x = ~x, y = ~y, color = ~color, colors = data$color, type = ‘scatter’, mode = ‘markers’, marker = list(size = 5))



p

In this example, the plot_ly() function is used to create an interactive scatter plot. The color parameter specifies the colors for the points, and the marker parameter adjusts the size of the points. The resulting plot is interactive, allowing users to hover over points to see their values and zoom in and out to explore the data.

📝 Note: Interactive visualizations can be particularly useful for presentations and reports, as they allow users to explore the data in more detail.

Conclusion

Using colors in R effectively can significantly enhance the clarity and impact of your data visualizations. Whether you are creating simple scatter plots or complex heatmaps, understanding how to work with colors in R is essential. From basic color functions to advanced color manipulation with packages like ggplot2 and Plotly, R provides a wide range of tools to help you create visually appealing and informative plots. By considering accessibility and using colorblind-friendly palettes, you can ensure that your visualizations are accessible to a wide audience. With practice and experimentation, you can master the art of using colors in R to create stunning and informative data visualizations.
