Collapse Rows In Excel

Mastering the art of data manipulation in Excel can significantly enhance your productivity and efficiency. One of the most useful techniques is learning how to collapse rows in Excel. This feature allows you to hide or show specific rows, making your data more manageable and easier to navigate. Whether you're working with large datasets or need to present information in a more organized manner, knowing how to collapse rows in Excel can be a game-changer.

Table of Contents

Understanding the Basics of Collapsing Rows in Excel

Before diving into the steps, it's essential to understand what collapsing rows means. Collapsing rows in Excel involves hiding rows that contain data you don't need to see at the moment. This is particularly useful when dealing with extensive spreadsheets where you want to focus on specific sections without being overwhelmed by the entire dataset.

Collapsing rows can be done manually or using built-in features like grouping. Grouping allows you to collapse and expand rows with a single click, making it easier to manage large datasets. This feature is especially handy for financial reports, project timelines, and any other data that can be logically grouped.

Steps to Collapse Rows in Excel

Collapsing rows in Excel can be achieved through several methods. Below are the most common and effective ways to do it:

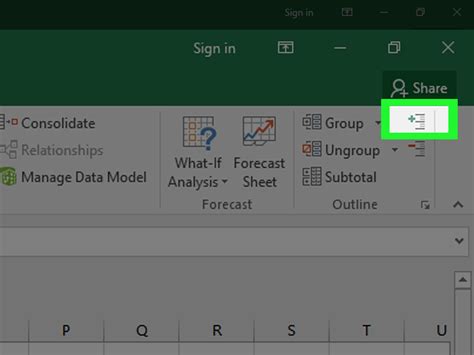

Method 1: Using the Group Feature

The Group feature in Excel is a powerful tool that allows you to collapse and expand rows easily. Here’s how you can use it:

Select the rows you want to group. For example, if you want to group rows 2 to 5, click on row 2 and drag down to row 5.
Go to the Data tab on the Ribbon.
Click on Group in the Outline group. A dropdown menu will appear.
Choose Group from the dropdown menu. A dialog box will appear.
In the dialog box, ensure that Rows is selected and click OK.
You will see small buttons (minus and plus signs) to the left of the row numbers. Click the minus sign to collapse the rows and the plus sign to expand them.

💡 Note: The Group feature is available in Excel 2007 and later versions.

Method 2: Using the Subtotal Feature

The Subtotal feature is another effective way to collapse rows in Excel. It not only groups rows but also adds subtotals, making it easier to analyze data. Here’s how to use it:

Select the data range you want to group.
Go to the Data tab on the Ribbon.
Click on Subtotal in the Outline group. A dialog box will appear.
In the dialog box, choose the column you want to group by from the At each change in dropdown menu.
Select the function you want to use for the subtotal (e.g., Sum, Average).
Ensure that the Replace current subtotals and Page break between groups options are checked if needed.
Click OK.
You will see subtotals and small buttons (minus and plus signs) to the left of the row numbers. Click the minus sign to collapse the rows and the plus sign to expand them.

💡 Note: The Subtotal feature is available in Excel 2007 and later versions.

Method 3: Using the Hide Feature

If you prefer a more manual approach, you can hide specific rows without using the Group or Subtotal features. Here’s how:

Select the rows you want to hide.
Right-click on the selected rows and choose Hide from the context menu.
The selected rows will be hidden, and you can unhide them by selecting the rows above and below the hidden rows, right-clicking, and choosing Unhide.

💡 Note: Hiding rows manually does not provide the convenience of collapsing and expanding with a single click.

Advanced Techniques for Collapsing Rows in Excel

For more advanced users, there are additional techniques to collapse rows in Excel that can enhance data management and presentation. These techniques involve using macros and VBA (Visual Basic for Applications).

Using Macros to Collapse Rows

Macros can automate the process of collapsing rows, making it faster and more efficient. Here’s a simple example of a macro that collapses rows:

Press Alt + F11 to open the VBA editor.
Insert a new module by clicking Insert > Module.
Copy and paste the following code into the module:

Sub CollapseRows() Dim ws As Worksheet Set ws = ThisWorkbook.Sheets(“Sheet1”) ‘ Change “Sheet1” to your sheet name ws.Rows(“2:5”).Hidden = True ’ Change the row range as needed End Sub

Close the VBA editor.
Run the macro by pressing Alt + F8, selecting CollapseRows, and clicking Run.

💡 Note: Macros require enabling macros in Excel settings. Be cautious when running macros from untrusted sources.

Using VBA to Collapse Rows Dynamically

For a more dynamic approach, you can use VBA to collapse rows based on specific conditions. Here’s an example of a VBA script that collapses rows based on a cell value:

Press Alt + F11 to open the VBA editor.
Insert a new module by clicking Insert > Module.
Copy and paste the following code into the module:

Sub CollapseRowsBasedOnCondition() Dim ws As Worksheet Dim lastRow As Long Dim i As Long Set ws = ThisWorkbook.Sheets(“Sheet1”) ‘ Change “Sheet1” to your sheet name lastRow = ws.Cells(ws.Rows.Count, “A”).End(xlUp).Row For i = 2 To lastRow If ws.Cells(i, 1).Value = “Condition” Then ’ Change “Condition” to your condition ws.Rows(i).Hidden = True End If Next i End Sub

Close the VBA editor.
Run the macro by pressing Alt + F8, selecting CollapseRowsBasedOnCondition, and clicking Run.

💡 Note: Adjust the condition and row range in the VBA script as per your requirements.

Best Practices for Collapsing Rows in Excel

While collapsing rows in Excel can significantly improve data management, it's essential to follow best practices to ensure efficiency and accuracy. Here are some tips to keep in mind:

Use Grouping for Large Datasets: For large datasets, grouping is the most efficient way to collapse rows in Excel. It allows you to manage data more effectively and focus on specific sections.
Leverage Subtotals for Analysis: The Subtotal feature not only groups rows but also adds subtotals, making it easier to analyze data. Use this feature for financial reports and project timelines.
Automate with Macros: For repetitive tasks, use macros to automate the process of collapsing rows. This saves time and reduces the risk of errors.
Test Conditions in VBA: When using VBA to collapse rows based on conditions, thoroughly test the conditions to ensure accuracy. Adjust the script as needed to meet your specific requirements.

Common Issues and Troubleshooting

While collapsing rows in Excel is generally straightforward, you may encounter some issues. Here are common problems and their solutions:

Rows Not Collapsing: If rows are not collapsing, ensure that the correct range is selected and that the Group or Subtotal feature is applied correctly.
Macros Not Working: If macros are not working, check that macros are enabled in Excel settings. Also, ensure that the VBA code is correct and that there are no syntax errors.
Hidden Rows Not Visible: If hidden rows are not visible, select the rows above and below the hidden rows, right-click, and choose Unhide.

💡 Note: Always save your work before applying grouping or subtotal features to avoid data loss.

Examples of Collapsing Rows in Excel

To better understand how to collapse rows in Excel, let's look at some practical examples:

Example 1: Financial Report

Consider a financial report with monthly sales data. You can group the data by month and collapse the rows to focus on specific months. Here’s how:

Select the data range for each month.
Go to the Data tab and click on Group.
Choose Group from the dropdown menu and ensure that Rows is selected.
Click the minus sign to collapse the rows for each month.

This allows you to focus on specific months without being overwhelmed by the entire dataset.

Example 2: Project Timeline

For a project timeline, you can use the Subtotal feature to group tasks by phase and collapse the rows to focus on specific phases. Here’s how:

Select the data range for the project timeline.
Go to the Data tab and click on Subtotal.
Choose the column that indicates the phase from the At each change in dropdown menu.
Select the function you want to use for the subtotal (e.g., Sum, Average).
Click the minus sign to collapse the rows for each phase.

This makes it easier to analyze the progress of each phase without being distracted by other phases.

Example 3: Inventory Management

For inventory management, you can use the Hide feature to hide specific rows that contain outdated or irrelevant data. Here’s how:

Select the rows you want to hide.
Right-click on the selected rows and choose Hide.
To unhide the rows, select the rows above and below the hidden rows, right-click, and choose Unhide.

This keeps your inventory list clean and focused on the most relevant data.

Collapsing rows in Excel is a powerful technique that can significantly enhance your data management and analysis capabilities. By understanding the basics, following best practices, and leveraging advanced techniques, you can make the most of this feature and improve your productivity.

Mastering the art of collapsing rows in Excel can transform the way you handle data. Whether you’re working with financial reports, project timelines, or inventory management, knowing how to collapse rows in Excel can make your data more manageable and easier to navigate. By following the steps and best practices outlined in this guide, you can enhance your data management skills and achieve better results.
