Clearance Hole Chart

In the world of manufacturing and engineering, precision is key. One of the critical aspects of ensuring precision in mechanical designs is the proper use of clearance holes. A Clearance Hole Chart is an essential tool that helps engineers and designers determine the correct sizes for clearance holes, which are holes that allow for the free movement of fasteners such as bolts and screws. This chart provides a standardized reference for hole sizes relative to the diameter of the fastener, ensuring that components fit together correctly and function as intended.

Understanding Clearance Holes

Clearance holes are designed to be slightly larger than the diameter of the fastener they accommodate. This extra space allows the fastener to pass through the hole easily, facilitating assembly and disassembly. The primary purpose of a clearance hole is to provide enough room for the fastener to move freely without binding, which is crucial for the proper functioning of mechanical assemblies.

Clearance holes are commonly used in various applications, including:

• Structural engineering
• Automotive manufacturing
• Aerospace engineering
• Machine building
• Construction

The Importance of a Clearance Hole Chart

A Clearance Hole Chart is indispensable for engineers and designers because it provides a quick and reliable reference for determining the appropriate hole size for a given fastener. This chart ensures that the clearance hole is neither too small (which would cause binding) nor too large (which would compromise the structural integrity of the assembly).

Using a Clearance Hole Chart offers several benefits:

• Precision: Ensures that the hole size is accurate, reducing the risk of errors in assembly.
• Efficiency: Saves time by providing a standardized reference, eliminating the need for complex calculations.
• Consistency: Ensures that all components in a project are manufactured to the same standards, enhancing overall quality.
• Safety: Prevents issues related to improper fit, such as stress concentrations or fastener failure, which could lead to safety hazards.

How to Use a Clearance Hole Chart

Using a Clearance Hole Chart is straightforward. Here are the steps to follow:

1. Identify the Fastener Size: Determine the diameter of the fastener you will be using. This information is usually available in the fastener's specifications.
2. Consult the Chart: Look up the fastener size in the Clearance Hole Chart. The chart will provide the recommended clearance hole size for that particular fastener.
3. Select the Appropriate Tool: Choose the correct drill bit or reamer that matches the recommended clearance hole size.
4. Drill the Hole: Drill the hole to the specified size, ensuring that it is perpendicular to the surface and free of burrs.
5. Verify the Fit: Insert the fastener into the hole to ensure it fits correctly and moves freely.

🔍 Note: Always double-check the fastener specifications and the Clearance Hole Chart to ensure accuracy. Small errors can lead to significant issues in the final assembly.

Common Clearance Hole Sizes

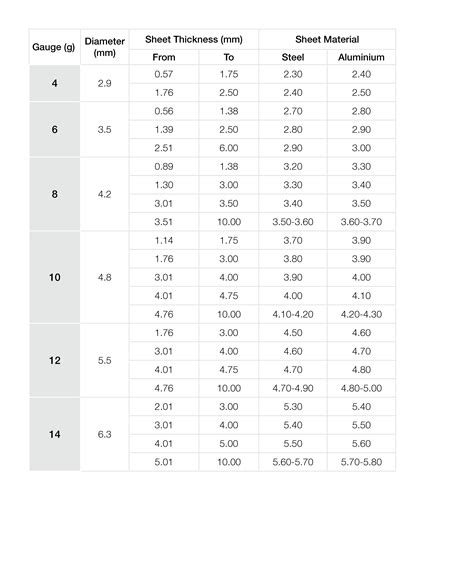

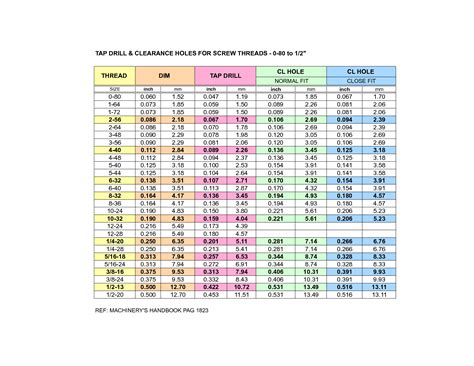

While the specific sizes can vary depending on the fastener type and material, here is a general Clearance Hole Chart for common fastener sizes:

This chart provides a quick reference for common metric fastener sizes. For imperial sizes or other specific requirements, consult a detailed Clearance Hole Chart that covers those dimensions.

Factors Affecting Clearance Hole Size

Several factors can influence the appropriate clearance hole size beyond just the fastener diameter. These include:

• Material Thickness: The thickness of the material through which the hole is drilled can affect the required clearance. Thicker materials may require slightly larger holes to accommodate the fastener.
• Tolerance Requirements: The tolerance requirements for the assembly can dictate the clearance hole size. Tighter tolerances may require more precise hole sizes.
• Fastener Type: Different types of fasteners, such as bolts, screws, or rivets, may have specific clearance requirements. For example, rivets often require larger clearance holes to allow for the riveting process.
• Environmental Conditions: The operating environment, including temperature and humidity, can affect the material's expansion and contraction, which in turn can influence the clearance hole size.

Considering these factors ensures that the clearance hole is optimized for the specific application, enhancing the overall performance and reliability of the assembly.

Best Practices for Drilling Clearance Holes

Drilling clearance holes accurately is crucial for the success of any mechanical assembly. Here are some best practices to follow:

• Use the Correct Drill Bit: Always use a high-quality drill bit that matches the recommended clearance hole size. A dull or incorrect drill bit can lead to inaccuracies and damage to the material.
• Maintain Proper Speed and Feed: Drill at the appropriate speed and feed rate for the material being used. This ensures a clean, accurate hole and prevents overheating or material damage.
• Ensure Perpendicularity: Make sure the drill bit is perpendicular to the surface to avoid angled holes, which can compromise the fit and function of the fastener.
• Deburr the Hole: After drilling, remove any burrs or rough edges from the hole to ensure a smooth fit for the fastener.
• Inspect the Hole: Verify the hole size and quality before inserting the fastener. Use a gauge or caliper to check the diameter and ensure it meets the specifications.

🛠️ Note: Regularly inspect and maintain your drilling tools to ensure they remain in good condition and provide accurate results.

Common Mistakes to Avoid

Even with a Clearance Hole Chart, mistakes can occur. Here are some common errors to avoid:

• Incorrect Hole Size: Drilling a hole that is too small or too large can lead to binding or excessive play, respectively. Always double-check the hole size before drilling.
• Improper Drill Bit: Using a worn-out or incorrect drill bit can result in inaccurate holes. Ensure your drill bits are in good condition and match the required size.
• Inconsistent Drilling: Drilling at inconsistent speeds or feed rates can cause variations in hole size and quality. Maintain a steady drilling process for consistent results.
• Ignoring Material Properties: Different materials have different drilling requirements. Always consider the material's properties when selecting the drilling parameters.

By avoiding these mistakes, you can ensure that your clearance holes are drilled accurately and reliably, enhancing the overall quality of your mechanical assemblies.

Clearance holes are a fundamental aspect of mechanical design and engineering. A Clearance Hole Chart serves as a valuable tool for ensuring that these holes are drilled to the correct size, facilitating the proper functioning of fasteners and the overall assembly. By understanding the importance of clearance holes, using the chart effectively, and following best practices, engineers and designers can achieve precise and reliable mechanical assemblies. This attention to detail not only enhances the performance of the final product but also ensures safety and longevity, making the Clearance Hole Chart an indispensable resource in the field of engineering.
