In the realm of audio engineering, the Class D Switching Amplifier stands out as a revolutionary technology that has transformed the way we amplify sound. Unlike traditional analog amplifiers, Class D amplifiers use digital switching techniques to achieve high efficiency and power output. This makes them ideal for a wide range of applications, from portable audio devices to high-end home theater systems.
Understanding Class D Switching Amplifiers
A Class D Switching Amplifier operates by rapidly switching the output transistors between fully on and fully off states. This digital switching minimizes power dissipation, resulting in higher efficiency compared to linear amplifiers. The key components of a Class D amplifier include:
- Pulse Width Modulation (PWM) circuit: Converts the analog input signal into a series of pulses.
- Switching transistors: Act as the power stage, amplifying the PWM signal.
- Low-pass filter: Smooths the amplified PWM signal to produce the final analog output.
This design not only reduces heat generation but also allows for more compact and lightweight amplifier designs, making them perfect for modern, space-conscious audio systems.
Advantages of Class D Switching Amplifiers
The Class D Switching Amplifier offers several advantages that make it a popular choice among audio enthusiasts and professionals alike:
- High Efficiency: Class D amplifiers can achieve efficiencies of up to 90%, meaning they convert most of the input power into useful output power.
- Compact Size: Due to their high efficiency, Class D amplifiers generate less heat, allowing for smaller and more compact designs.
- Cost-Effective: The use of digital switching techniques reduces the number of components required, lowering the overall cost of production.
- Versatility: Class D amplifiers can be used in a variety of applications, from portable audio devices to high-power home theater systems.
These advantages make Class D amplifiers a versatile and cost-effective solution for modern audio needs.
Applications of Class D Switching Amplifiers
The versatility of Class D Switching Amplifiers makes them suitable for a wide range of applications. Some of the most common uses include:
- Portable Audio Devices: Class D amplifiers are ideal for portable devices like smartphones, tablets, and portable speakers due to their compact size and high efficiency.
- Home Theater Systems: High-power Class D amplifiers are used in home theater systems to deliver clear and powerful audio.
- Automotive Audio: Class D amplifiers are commonly used in car audio systems for their ability to handle high power levels and their compact design.
- Professional Audio Equipment: In studios and live performance settings, Class D amplifiers are used for their reliability and high-quality sound output.
These applications highlight the broad appeal and utility of Class D amplifiers in various audio environments.

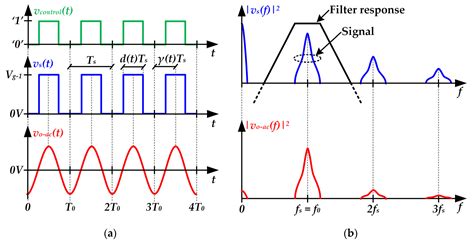

How Class D Switching Amplifiers Work
To understand the inner workings of a Class D Switching Amplifier, let's break down the process step by step:
- Input Signal: The analog audio signal is fed into the amplifier.
- Pulse Width Modulation (PWM): The input signal is converted into a series of pulses using a PWM circuit. The width of these pulses corresponds to the amplitude of the input signal.
- Switching Transistors: The PWM signal is then amplified by switching transistors, which operate in a fully on or fully off state. This minimizes power dissipation and heat generation.
- Low-Pass Filter: The amplified PWM signal is passed through a low-pass filter, which smooths out the pulses to produce a clean analog output signal.
This process ensures that the output signal is a faithful reproduction of the input signal, with minimal distortion and high efficiency.
💡 Note: The efficiency of a Class D amplifier can be further enhanced by using advanced modulation techniques and high-quality components.
Comparing Class D Amplifiers to Other Classes
To fully appreciate the benefits of a Class D Switching Amplifier, it's helpful to compare it with other classes of amplifiers:
| Amplifier Class | Efficiency | Heat Generation | Size | Cost |
|---|---|---|---|---|
| Class A | Low (20-30%) | High | Large | High |
| Class B | Medium (50-60%) | Medium | Medium | Medium |
| Class AB | Medium (60-70%) | Medium | Medium | Medium |
| Class D | High (80-90%) | Low | Small | Low |
As shown in the table, Class D amplifiers offer superior efficiency, lower heat generation, and a more compact size compared to other classes. This makes them a preferred choice for modern audio applications.
Design Considerations for Class D Switching Amplifiers
When designing a Class D Switching Amplifier, several key considerations must be taken into account to ensure optimal performance:
- Component Selection: Choosing high-quality components, such as switching transistors and low-pass filters, is crucial for achieving high efficiency and low distortion.
- Modulation Techniques: Advanced modulation techniques, such as Pulse Density Modulation (PDM) and Sigma-Delta Modulation, can further enhance the performance of Class D amplifiers.
- Thermal Management: Although Class D amplifiers generate less heat, effective thermal management is still important to ensure long-term reliability.
- Power Supply Design: A stable and efficient power supply is essential for the proper functioning of Class D amplifiers. Switching power supplies are often used to achieve high efficiency.
By carefully considering these factors, designers can create Class D amplifiers that deliver exceptional performance and reliability.
💡 Note: Proper layout and grounding techniques are also important to minimize noise and interference in Class D amplifier designs.
Future Trends in Class D Switching Amplifiers
The future of Class D Switching Amplifiers looks promising, with several emerging trends and technologies set to further enhance their capabilities:
- Digital Signal Processing (DSP): The integration of DSP technology allows for advanced signal processing and customization, enabling Class D amplifiers to deliver even higher quality audio.
- Wireless Connectivity: The incorporation of wireless technologies, such as Bluetooth and Wi-Fi, makes Class D amplifiers more versatile and convenient for modern audio systems.
- Energy Efficiency: Continued advancements in modulation techniques and component technology will further improve the energy efficiency of Class D amplifiers, making them even more environmentally friendly.
- Miniaturization: As technology advances, Class D amplifiers are becoming smaller and more compact, opening up new possibilities for portable and wearable audio devices.
These trends highlight the ongoing evolution of Class D amplifiers and their potential to shape the future of audio technology.
In conclusion, the Class D Switching Amplifier represents a significant advancement in audio amplification technology. With its high efficiency, compact size, and versatility, it has become a staple in modern audio systems. From portable devices to high-end home theater systems, Class D amplifiers continue to deliver exceptional performance and reliability. As technology advances, the future of Class D amplifiers looks brighter than ever, with exciting developments on the horizon that promise to further enhance their capabilities and applications.
