Circuit Breaker Replacement

In the realm of electrical engineering and maintenance, the circuit breaker replacement is a critical task that ensures the safety and reliability of electrical systems. Circuit breakers are essential components that protect electrical circuits from damage caused by overloads or short circuits. Over time, these devices can wear out or become faulty, necessitating a circuit breaker replacement. This process involves several steps, from identifying the need for replacement to installing a new circuit breaker. Understanding the intricacies of this procedure can help ensure a smooth and safe circuit breaker replacement.

Table of Contents

Understanding Circuit Breakers

Before diving into the circuit breaker replacement process, it’s important to understand what circuit breakers are and their role in electrical systems. Circuit breakers are automatic switches designed to protect an electrical circuit from damage caused by excess current, typically resulting from an overload or short circuit. They interrupt the current flow when a fault is detected, preventing overheating and potential fires.

There are several types of circuit breakers, including:

Miniature Circuit Breakers (MCBs): Commonly used in residential and light commercial applications.
Molded Case Circuit Breakers (MCCBs): Suitable for medium to high current applications.
Air Circuit Breakers (ACBs): Used in high-voltage applications.
Vacuum Circuit Breakers: Ideal for high-voltage and high-current applications.

Identifying the Need for Circuit Breaker Replacement

Determining when a circuit breaker replacement is necessary involves several indicators. Some common signs include:

Frequent tripping of the circuit breaker.
Burning smell or visible signs of burning around the breaker.
Discoloration or charring on the breaker or panel.
Loose or corroded connections.
Visible damage to the breaker or panel.

If any of these signs are present, it is crucial to address the issue promptly to prevent potential hazards.

Preparing for Circuit Breaker Replacement

Before proceeding with the circuit breaker replacement, it is essential to gather the necessary tools and materials. This includes:

New circuit breaker compatible with the existing panel.
Screwdriver (flathead or Phillips, depending on the panel).
Non-contact voltage tester.
Safety gloves and goggles.
Insulated tools.

Additionally, ensure that the power to the circuit is turned off at the main breaker or fuse box. This step is crucial for safety and should not be overlooked.

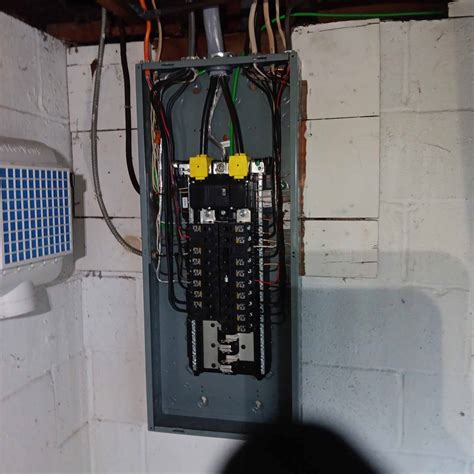

Step-by-Step Circuit Breaker Replacement Process

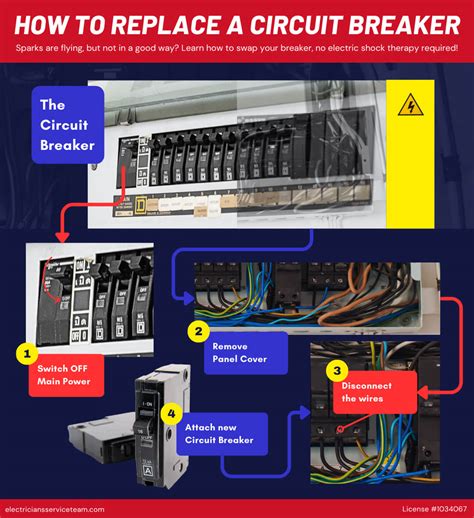

The circuit breaker replacement process involves several steps. Here is a detailed guide to help you through the procedure:

Step 1: Turn Off the Power

Before beginning any work, turn off the power to the circuit at the main breaker or fuse box. Use a non-contact voltage tester to ensure that the circuit is de-energized.

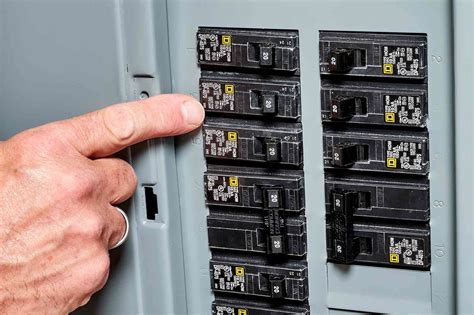

Step 2: Remove the Old Circuit Breaker

Open the panel door and locate the faulty circuit breaker. Use a screwdriver to remove the panel cover. Carefully pull the old circuit breaker out of the panel. Be cautious, as there may be live wires connected to the breaker.

Step 3: Disconnect the Wires

Once the old circuit breaker is removed, disconnect the wires from the terminals. Note the position of each wire to ensure proper reconnection later. Use a screwdriver to loosen the terminal screws and carefully pull the wires out.

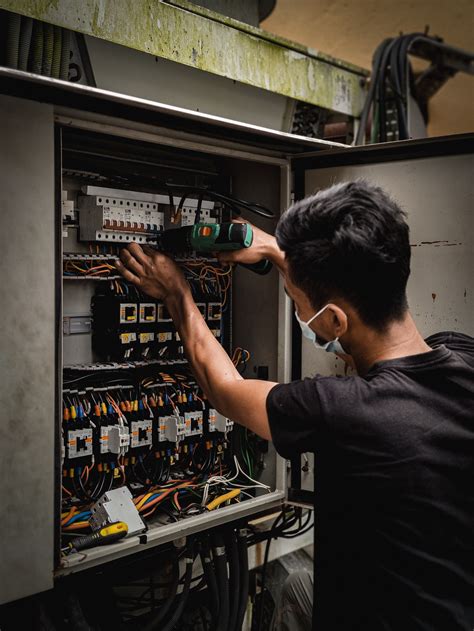

Step 4: Install the New Circuit Breaker

Insert the new circuit breaker into the panel, ensuring it is properly aligned. Connect the wires to the corresponding terminals on the new breaker. Tighten the terminal screws securely to ensure a good connection.

Step 5: Test the New Circuit Breaker

After installing the new circuit breaker, turn the power back on at the main breaker or fuse box. Use a non-contact voltage tester to verify that the circuit is live. Test the new breaker by turning it on and off to ensure it is functioning correctly.

🔧 Note: Always follow safety protocols and use insulated tools when working with electrical components.

Common Issues During Circuit Breaker Replacement

During the circuit breaker replacement process, several issues may arise. Being aware of these potential problems can help you address them effectively:

Incorrect Breaker Size: Ensure the new circuit breaker matches the ampere rating of the old one. Using a breaker with a different rating can lead to improper protection and potential hazards.
Loose Connections: Loose wire connections can cause overheating and arcing. Always ensure that wires are securely connected to the terminals.
Faulty Wiring: Damaged or corroded wires can cause circuit breakers to trip frequently. Inspect the wiring for any signs of damage and replace if necessary.
Panel Compatibility: Not all circuit breakers are compatible with every panel. Ensure the new breaker is designed for your specific panel model.

Safety Precautions During Circuit Breaker Replacement

Safety is paramount when performing a circuit breaker replacement. Here are some essential safety precautions to keep in mind:

Always turn off the power at the main breaker or fuse box before beginning any work.
Use insulated tools to minimize the risk of electrical shock.
Wear safety gloves and goggles to protect against potential hazards.
Ensure the circuit is de-energized using a non-contact voltage tester.
Avoid working on live circuits unless absolutely necessary and with proper training.

By following these safety precautions, you can minimize the risks associated with circuit breaker replacement and ensure a safe working environment.

Maintaining Circuit Breakers

Regular maintenance of circuit breakers can extend their lifespan and prevent the need for frequent circuit breaker replacement. Here are some maintenance tips:

Inspect circuit breakers periodically for signs of wear or damage.
Check for loose connections and tighten as necessary.
Clean the breaker and panel to remove dust and debris.
Test the breaker by turning it on and off to ensure it is functioning correctly.
Replace circuit breakers that show signs of frequent tripping or other issues.

By following these maintenance tips, you can ensure the reliability and safety of your electrical system.

In conclusion, the circuit breaker replacement process is a crucial aspect of electrical maintenance. Understanding the types of circuit breakers, identifying the need for replacement, and following the proper steps can help ensure a safe and effective circuit breaker replacement. Regular maintenance and adherence to safety precautions are essential for the longevity and reliability of your electrical system. By taking these steps, you can protect your electrical circuits and prevent potential hazards.
