Chemical Vapor Deposition Types

Chemical Vapor Deposition (CVD) is a versatile and widely used technique in materials science and engineering for depositing thin films of various materials onto substrates. This process involves the reaction of volatile precursors in a gas phase to produce a solid material that deposits onto a heated substrate. Understanding the different Chemical Vapor Deposition Types is crucial for selecting the appropriate method for specific applications. This blog post will delve into the various types of CVD, their mechanisms, applications, and advantages.

Introduction to Chemical Vapor Deposition

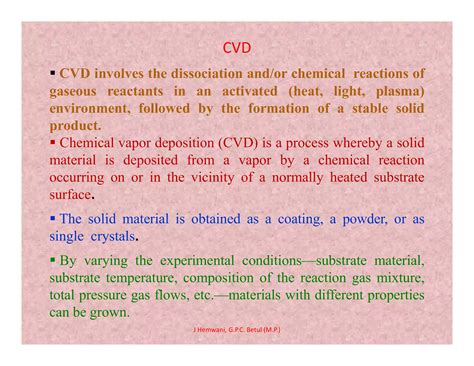

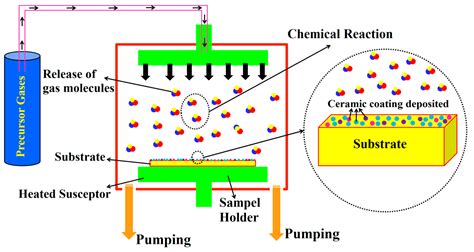

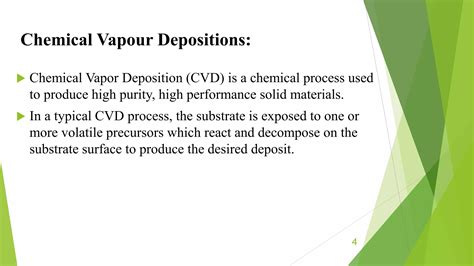

CVD is a process where a solid material is deposited from a gaseous phase onto a substrate. The process involves several steps: introducing precursor gases into a reaction chamber, heating the substrate to initiate chemical reactions, and depositing the desired material onto the substrate. The choice of precursor gases and reaction conditions determines the properties of the deposited film.

Types of Chemical Vapor Deposition

There are several Chemical Vapor Deposition Types, each with its unique characteristics and applications. The most common types include:

• Atmospheric Pressure CVD (APCVD)
• Low-Pressure CVD (LPCVD)
• Plasma-Enhanced CVD (PECVD)
• Metal-Organic CVD (MOCVD)
• Atomic Layer Deposition (ALD)

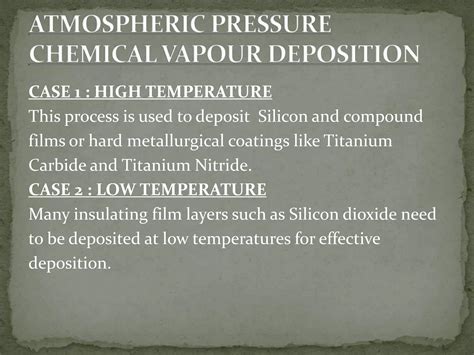

Atmospheric Pressure CVD (APCVD)

APCVD is one of the simplest and most cost-effective Chemical Vapor Deposition Types. It operates at atmospheric pressure, making it easier to set up and maintain. The process involves heating the substrate to a high temperature, typically between 600°C and 1000°C, to initiate the chemical reactions of the precursor gases.

APCVD is commonly used for depositing silicon dioxide (SiO2) and silicon nitride (Si3N4) films in the semiconductor industry. It is also used in the production of solar cells and other electronic devices.

Advantages of APCVD include:

• Simplicity and cost-effectiveness
• High deposition rates
• Compatibility with large-scale production

However, APCVD has limitations, such as poor control over film thickness and uniformity, and the need for high temperatures, which can be detrimental to certain substrates.

Low-Pressure CVD (LPCVD)

LPCVD operates at reduced pressures, typically between 0.1 and 1 torr. This lower pressure environment allows for better control over the deposition process, resulting in more uniform and high-quality films. LPCVD is commonly used for depositing polysilicon, silicon dioxide, and silicon nitride films in the semiconductor industry.

Advantages of LPCVD include:

• Improved film uniformity and quality
• Better control over deposition rates
• Lower operating temperatures compared to APCVD

However, LPCVD requires more complex and expensive equipment compared to APCVD. Additionally, the deposition rates are generally slower, which can be a disadvantage for large-scale production.

Plasma-Enhanced CVD (PECVD)

PECVD is a variant of CVD that uses plasma to enhance the chemical reactions of the precursor gases. The plasma is generated by applying a radio frequency (RF) or microwave field to the reaction chamber. This method allows for deposition at lower temperatures, making it suitable for temperature-sensitive substrates.

PECVD is widely used for depositing amorphous silicon, silicon dioxide, and silicon nitride films in the semiconductor industry. It is also used in the production of flat-panel displays and solar cells.

Advantages of PECVD include:

• Lower operating temperatures
• High deposition rates
• Good film uniformity and quality

However, PECVD can be more complex and expensive to set up compared to other Chemical Vapor Deposition Types. Additionally, the plasma can cause damage to the substrate if not properly controlled.

Metal-Organic CVD (MOCVD)

MOCVD, also known as Metal-Organic Vapor Phase Epitaxy (MOVPE), uses metal-organic compounds as precursors. This method is particularly useful for depositing compound semiconductors, such as gallium arsenide (GaAs) and indium phosphide (InP). MOCVD operates at atmospheric or reduced pressures and typically requires high temperatures.

Advantages of MOCVD include:

• High-quality epitaxial films
• Good control over film composition and thickness
• Suitability for complex compound semiconductors

However, MOCVD can be complex and expensive to set up, and the precursors used can be hazardous and costly.

Atomic Layer Deposition (ALD)

ALD is a specialized Chemical Vapor Deposition Type that involves the sequential deposition of atomic layers. The process consists of alternating exposure of the substrate to different precursor gases, allowing for precise control over film thickness and composition. ALD is commonly used for depositing high-k dielectric materials, such as hafnium oxide (HfO2) and aluminum oxide (Al2O3), in the semiconductor industry.

Advantages of ALD include:

• Precise control over film thickness and composition
• Uniform and conformal film deposition
• Low operating temperatures

However, ALD can be a slow process, making it less suitable for large-scale production. Additionally, the equipment can be complex and expensive.

Applications of Chemical Vapor Deposition

CVD has a wide range of applications across various industries. Some of the key applications include:

• Semiconductor industry: Deposition of thin films for transistors, capacitors, and other electronic components
• Solar cells: Deposition of silicon and other materials for photovoltaic cells
• Optical coatings: Deposition of thin films for lenses, mirrors, and other optical components
• Medical devices: Deposition of biocompatible coatings for implants and other medical devices
• Corrosion protection: Deposition of protective coatings for metals and other materials

Comparison of Chemical Vapor Deposition Types

Choosing the right Chemical Vapor Deposition Type depends on the specific requirements of the application. The following table provides a comparison of the different CVD types based on key parameters:

Each Chemical Vapor Deposition Type has its strengths and weaknesses, and the choice of method depends on the specific requirements of the application, including the desired film properties, substrate material, and production scale.

📝 Note: The table above provides a general comparison. Specific applications may require different considerations and optimizations.

Future Trends in Chemical Vapor Deposition

CVD technology continues to evolve, driven by the demand for advanced materials and devices. Some of the future trends in CVD include:

• Development of new precursor materials for improved film properties
• Integration of CVD with other deposition techniques, such as sputtering and evaporation
• Advancements in plasma-assisted CVD for enhanced control and efficiency
• Exploration of new applications in areas such as energy storage, catalysis, and biomaterials

As research and development in CVD continue, we can expect to see even more innovative applications and improvements in film quality and deposition rates.

CVD is a critical technology in materials science and engineering, enabling the deposition of high-quality thin films for a wide range of applications. Understanding the different Chemical Vapor Deposition Types and their characteristics is essential for selecting the appropriate method for specific needs. Whether it’s for semiconductor manufacturing, solar cell production, or optical coatings, CVD offers a versatile and powerful tool for creating advanced materials.
