Chemical Mechanical Planarization

Chemical Mechanical Planarization (CMP) is a critical process in the semiconductor industry, essential for creating flat and smooth surfaces on semiconductor wafers. This process is vital for the fabrication of integrated circuits (ICs), ensuring that the layers of materials deposited on the wafer are uniform and free of defects. As the demand for smaller, faster, and more efficient electronic devices continues to grow, the importance of CMP in achieving precise and reliable semiconductor manufacturing cannot be overstated.

Table of Contents

Understanding Chemical Mechanical Planarization

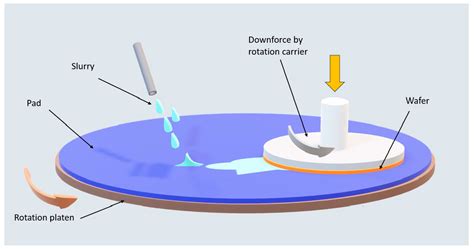

CMP is a combination of chemical and mechanical processes that work together to remove excess material from the surface of a wafer. The chemical component involves the use of a slurry, which is a mixture of chemicals and abrasive particles. The mechanical component involves the use of a polishing pad and a rotating platen. The wafer is pressed against the pad, and the combination of the chemical slurry and the mechanical action of the pad removes material from the wafer's surface.

There are several key steps involved in the CMP process:

Preparation: The wafer is prepared by cleaning it to remove any contaminants and ensuring it is free of defects.

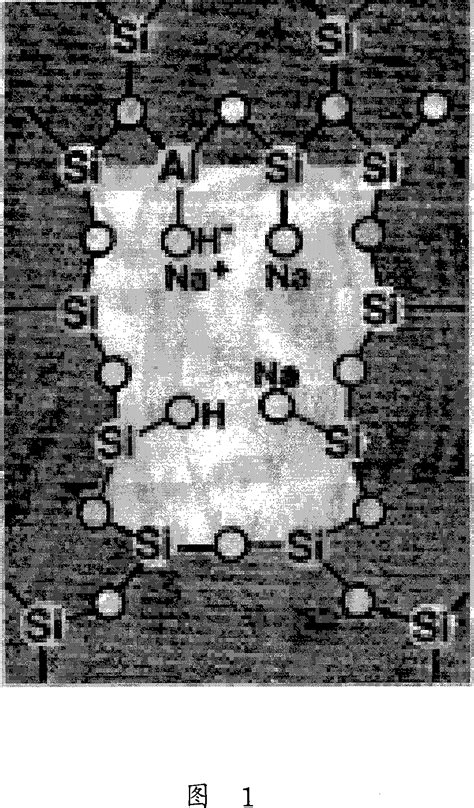

Slurry Application: The chemical slurry is applied to the polishing pad. The slurry contains both chemical agents that react with the wafer material and abrasive particles that mechanically remove the material.
Polishing: The wafer is placed on a carrier and pressed against the rotating polishing pad. The combination of the chemical reaction and mechanical abrasion removes material from the wafer's surface.
Cleaning: After polishing, the wafer is cleaned to remove any remaining slurry and debris. This step is crucial to ensure that no contaminants remain on the wafer's surface.
Inspection: The wafer is inspected to ensure that the desired level of planarization has been achieved and that there are no defects.

🔍 Note: The effectiveness of the CMP process depends on the proper selection of the slurry and polishing pad, as well as the control of process parameters such as pressure, speed, and temperature.

Importance of Chemical Mechanical Planarization in Semiconductor Manufacturing

CMP plays a crucial role in the fabrication of modern semiconductor devices. As the size of transistors and other components continues to shrink, the need for precise and uniform surfaces becomes increasingly important. CMP helps to achieve this by removing excess material and creating a flat surface, which is essential for the deposition of subsequent layers.

Some of the key benefits of CMP in semiconductor manufacturing include:

Improved Planarity: CMP ensures that the surface of the wafer is flat and smooth, which is essential for the deposition of subsequent layers.
Reduced Defects: By removing excess material and contaminants, CMP helps to reduce the number of defects in the final product.
Enhanced Performance: The precise control of material removal in CMP helps to improve the performance of semiconductor devices by ensuring that the layers are uniform and free of defects.
Cost Efficiency: CMP is a cost-effective process that helps to reduce the overall cost of semiconductor manufacturing by minimizing the need for rework and reducing the number of defective wafers.

Types of Chemical Mechanical Planarization

There are several types of CMP processes, each designed to address specific needs in semiconductor manufacturing. The choice of CMP process depends on the type of material being polished and the desired outcome. Some of the most common types of CMP include:

Oxide CMP: This process is used to polish oxide layers, such as silicon dioxide (SiO2), which are commonly used as insulating layers in semiconductor devices.

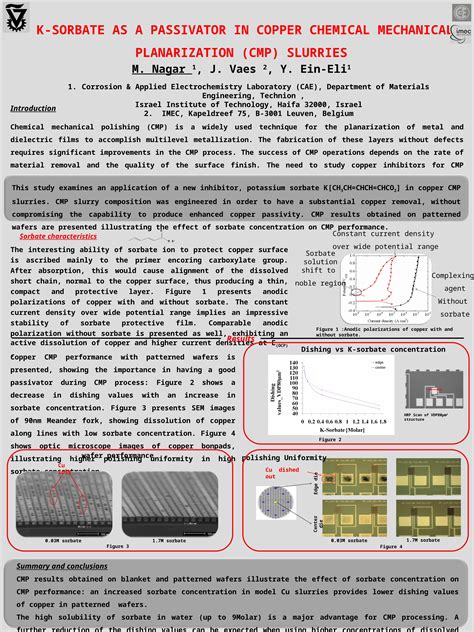

Metal CMP: This process is used to polish metal layers, such as copper (Cu) or tungsten (W), which are used as conductive layers in semiconductor devices.

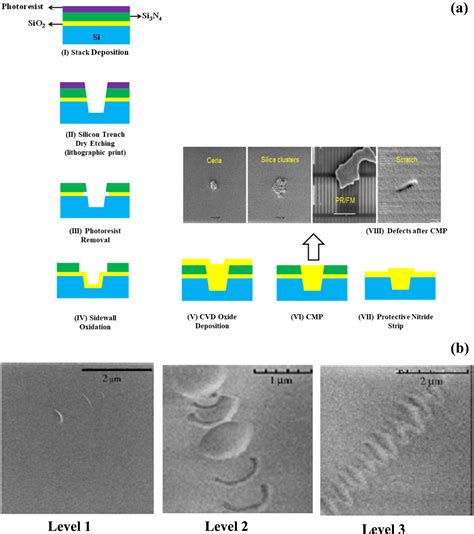

Shallow Trench Isolation (STI) CMP: This process is used to polish the oxide layers in STI structures, which are used to isolate transistors from each other.
Tungsten CMP: This process is used to polish tungsten layers, which are commonly used as interconnects in semiconductor devices.

Each type of CMP process requires a specific slurry and polishing pad to achieve the desired results. The selection of the slurry and pad is critical to the success of the CMP process and must be carefully controlled to ensure consistent and reliable results.

Challenges in Chemical Mechanical Planarization

While CMP is a critical process in semiconductor manufacturing, it also presents several challenges that must be addressed to ensure consistent and reliable results. Some of the key challenges in CMP include:

Uniformity: Achieving uniform material removal across the entire wafer surface is a significant challenge in CMP. Variations in pressure, speed, and temperature can lead to non-uniform material removal, resulting in defects and reduced performance.
Selectivity: Selective material removal is another challenge in CMP. The slurry and polishing pad must be carefully selected to ensure that only the desired material is removed, while other materials remain unaffected.
Defects: Defects such as scratches, pits, and particles can occur during the CMP process, leading to reduced performance and yield. Careful control of process parameters and the use of high-quality slurries and pads are essential to minimize defects.
Cost: The cost of CMP equipment, slurries, and pads can be high, making it a significant expense in semiconductor manufacturing. Optimizing the CMP process to reduce costs while maintaining performance is a key challenge.

Addressing these challenges requires a deep understanding of the CMP process and the ability to optimize process parameters to achieve consistent and reliable results. Advances in CMP technology, such as the development of new slurries and polishing pads, are helping to overcome these challenges and improve the performance of semiconductor devices.

Advances in Chemical Mechanical Planarization Technology

As the demand for smaller, faster, and more efficient electronic devices continues to grow, the need for advanced CMP technology becomes increasingly important. Recent advances in CMP technology have focused on improving uniformity, selectivity, and defect reduction, as well as reducing costs. Some of the key advances in CMP technology include:

New Slurries: The development of new slurries with improved chemical and mechanical properties has helped to enhance the performance of CMP processes. These slurries are designed to provide better uniformity, selectivity, and defect reduction.
Advanced Polishing Pads: The use of advanced polishing pads with improved mechanical properties has helped to enhance the performance of CMP processes. These pads are designed to provide better uniformity and defect reduction.
In-Situ Monitoring: The use of in-situ monitoring techniques, such as optical sensors and acoustic sensors, has helped to improve the control of CMP processes. These techniques allow for real-time monitoring of process parameters, enabling better control and optimization.
Automated Systems: The development of automated CMP systems has helped to improve the consistency and reliability of CMP processes. These systems use advanced algorithms and sensors to control process parameters and ensure consistent results.

These advances in CMP technology are helping to overcome the challenges associated with CMP and improve the performance of semiconductor devices. As the demand for smaller, faster, and more efficient electronic devices continues to grow, the importance of CMP in achieving precise and reliable semiconductor manufacturing cannot be overstated.

Applications of Chemical Mechanical Planarization

CMP is widely used in various applications within the semiconductor industry. Some of the key applications of CMP include:

Interlayer Dielectric (ILD) Planarization: CMP is used to planarize ILD layers, which are used to insulate different layers of metal interconnects in semiconductor devices.
Shallow Trench Isolation (STI) Planarization: CMP is used to planarize STI structures, which are used to isolate transistors from each other in semiconductor devices.
Metal Interconnect Planarization: CMP is used to planarize metal interconnect layers, such as copper and tungsten, which are used to connect different components in semiconductor devices.
Chemical Mechanical Polishing for 3D Integration: CMP is used in 3D integration processes to planarize the surfaces of stacked wafers, enabling the creation of 3D semiconductor devices.

In addition to these applications, CMP is also used in other industries, such as the optical industry, where it is used to polish optical components to achieve precise and uniform surfaces.

Future Trends in Chemical Mechanical Planarization

As the semiconductor industry continues to evolve, the future of CMP is likely to be shaped by several key trends. Some of the future trends in CMP include:

Advanced Materials: The development of new materials, such as graphene and other 2D materials, is expected to drive the need for advanced CMP processes. These materials require precise and uniform planarization to achieve optimal performance.
Nanoscale Precision: As the size of semiconductor devices continues to shrink, the need for nanoscale precision in CMP processes will become increasingly important. Advances in CMP technology, such as the use of atomic force microscopy (AFM) and other nanoscale characterization techniques, will be essential to achieve this level of precision.
Environmental Sustainability: The semiconductor industry is increasingly focused on environmental sustainability, and CMP processes are no exception. The development of environmentally friendly slurries and polishing pads, as well as the use of water-based cleaning processes, will be essential to reduce the environmental impact of CMP.
Automation and AI: The use of automation and artificial intelligence (AI) in CMP processes is expected to grow, enabling better control and optimization of process parameters. AI-driven algorithms can analyze large amounts of data in real-time, providing insights and recommendations to improve the performance of CMP processes.

These future trends in CMP are expected to drive innovation and improve the performance of semiconductor devices, enabling the creation of smaller, faster, and more efficient electronic devices.

CMP is a critical process in the semiconductor industry, essential for creating flat and smooth surfaces on semiconductor wafers. As the demand for smaller, faster, and more efficient electronic devices continues to grow, the importance of CMP in achieving precise and reliable semiconductor manufacturing cannot be overstated. By understanding the key steps, benefits, challenges, and advances in CMP technology, semiconductor manufacturers can optimize their processes to achieve consistent and reliable results, driving innovation and improving the performance of electronic devices.
