Electrical work often requires precise measurements to ensure safety and functionality. One of the most essential tools for this purpose is a Checking Resistance Multimeter. This versatile device is used to measure electrical resistance, voltage, and current, making it indispensable for electricians, hobbyists, and engineers alike. Understanding how to use a Checking Resistance Multimeter effectively can save time, prevent errors, and ensure the reliability of electrical systems.
Understanding the Checking Resistance Multimeter
A Checking Resistance Multimeter is a handheld device that combines several measurement functions into one. It typically includes features for measuring resistance, voltage, and current. The resistance measurement function is particularly useful for checking the continuity of circuits, identifying faulty components, and verifying the integrity of electrical connections.

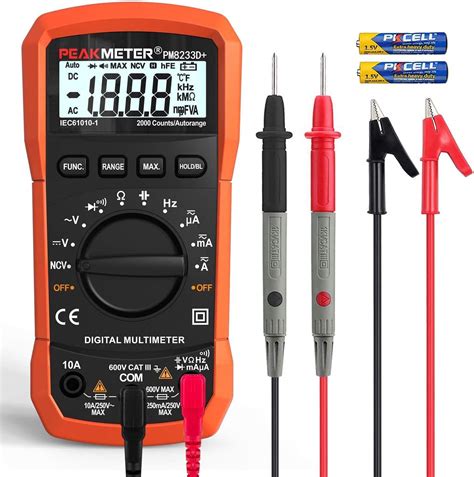

Key Components of a Checking Resistance Multimeter
Before diving into how to use a Checking Resistance Multimeter, it’s important to familiarize yourself with its key components:
- Display Screen: Shows the measurement readings.
- Dial or Rotary Switch: Allows you to select the measurement function (e.g., resistance, voltage, current).
- Probes: Conductive tips used to make contact with the circuit or component being tested.
- Range Selector: Adjusts the measurement range for more accurate readings.
- Power Button: Turns the multimeter on and off.
How to Use a Checking Resistance Multimeter for Resistance Measurement
Measuring resistance is one of the most common tasks performed with a Checking Resistance Multimeter. Here are the steps to follow:
- Turn on the Multimeter: Press the power button to turn on the device.
- Select the Resistance Function: Use the dial or rotary switch to select the resistance measurement function, often denoted by the omega symbol (Ω).
- Choose the Appropriate Range: Set the range selector to an appropriate value based on the expected resistance. For example, if you are testing a resistor with a value of 1 kΩ, select the 2 kΩ range.

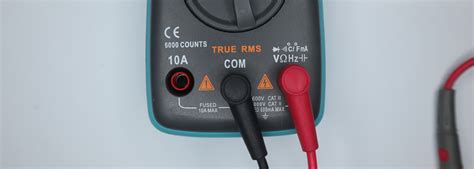

- Connect the Probes: Insert the black probe into the COM (common) port and the red probe into the VΩmA port.
- Make Contact: Touch the probes to the two points of the component or circuit you want to measure. Ensure good contact for accurate readings.
- Read the Display: The display will show the resistance value. If the reading is out of range, adjust the range selector and retake the measurement.
🔍 Note: Always ensure the circuit is de-energized before taking resistance measurements to avoid inaccurate readings or damage to the multimeter.
Common Applications of a Checking Resistance Multimeter
A Checking Resistance Multimeter is used in various applications, including:
- Electrical Troubleshooting: Identifying faulty components such as resistors, capacitors, and inductors.
- Continuity Testing: Checking for breaks or shorts in wires and circuits.
- Component Verification: Ensuring that components meet their specified resistance values.
- Safety Checks: Verifying the integrity of electrical connections to prevent hazards.
Advanced Features of a Checking Resistance Multimeter
Modern Checking Resistance Multimeters come with advanced features that enhance their functionality and accuracy. Some of these features include:
- Auto-Ranging: Automatically selects the appropriate measurement range, simplifying the process.
- True RMS: Provides accurate readings for non-sinusoidal waveforms, commonly found in digital electronics.
- Data Logging: Records measurement data over time, useful for monitoring and analysis.
- Backlit Display: Enhances visibility in low-light conditions.
- Low Battery Indicator: Alerts you when the battery needs replacement.
Safety Precautions When Using a Checking Resistance Multimeter
Safety is paramount when working with electrical equipment. Here are some essential safety precautions to follow:
- Turn Off Power: Always ensure the circuit is de-energized before taking measurements.
- Use Insulated Probes: Protect yourself from accidental shocks by using probes with insulated handles.
- Avoid Moisture: Keep the multimeter and probes dry to prevent short circuits and inaccurate readings.
- Check for Damage: Inspect the multimeter and probes for any signs of damage before use.
- Follow Manufacturer Guidelines: Adhere to the safety instructions provided in the user manual.
⚠️ Note: Never measure resistance on a live circuit. Always disconnect the power source to avoid electrical hazards.
Calibrating a Checking Resistance Multimeter
Regular calibration ensures the accuracy of your Checking Resistance Multimeter. Here are the steps to calibrate your device:
- Turn on the Multimeter: Press the power button to turn on the device.
- Select the Resistance Function: Use the dial or rotary switch to select the resistance measurement function.
- Connect the Probes: Touch the probes together to create a short circuit.
- Adjust the Zero Offset: Use the calibration adjustment screw or button to set the display to zero.
- Verify Calibration: Test the multimeter with a known resistance value to ensure accuracy.
🔧 Note: Refer to the user manual for specific calibration instructions, as procedures may vary between models.
Troubleshooting Common Issues with a Checking Resistance Multimeter
Even with proper use, you may encounter issues with your Checking Resistance Multimeter. Here are some common problems and their solutions:
| Problem | Solution |
|---|---|
| Inaccurate Readings | Check the calibration, ensure good probe contact, and verify the range setting. |
| Display Not Working | Check the battery, ensure the power button is on, and inspect for any visible damage. |
| Probes Not Working | Inspect the probes for damage, ensure they are securely connected, and test with a known good component. |
| Overload Error | Reduce the measurement range or disconnect the probes to reset the multimeter. |
🛠️ Note: If troubleshooting does not resolve the issue, consider consulting the user manual or seeking professional assistance.
Using a Checking Resistance Multimeter effectively requires understanding its components, following proper procedures, and adhering to safety guidelines. By mastering these skills, you can ensure accurate measurements and reliable electrical systems. Whether you are a professional electrician or a hobbyist, a Checking Resistance Multimeter is an invaluable tool for your toolkit.
