Cheat Sheet Subnet Mask

Understanding and mastering subnet masks is a crucial skill for anyone working in networking. A subnet mask is a number that distinguishes the network and host portions of an IP address. It is essential for routing and communication within a network. This guide will serve as your comprehensive Cheat Sheet Subnet Mask, covering everything from the basics to advanced concepts, ensuring you have a solid grasp of this fundamental networking tool.

Table of Contents

Understanding Subnet Masks

A subnet mask is a 32-bit number that masks an IP address, dividing it into network and host portions. It is used to determine the network and host parts of an IP address, which is crucial for routing packets within a network. The subnet mask is typically represented in dotted decimal notation, similar to an IP address.

For example, consider the IP address 192.168.1.10 with a subnet mask of 255.255.255.0. The subnet mask indicates that the first 24 bits (192.168.1) are the network portion, and the remaining 8 bits (.10) are the host portion.

Types of Subnet Masks

There are two main types of subnet masks: default and custom.

Default Subnet Masks: These are the standard subnet masks assigned by the Internet Assigned Numbers Authority (IANA) for different classes of IP addresses. For example, Class A addresses use a default subnet mask of 255.0.0.0, Class B addresses use 255.255.0.0, and Class C addresses use 255.255.255.0.
Custom Subnet Masks: These are user-defined subnet masks that allow for more flexible network design. Custom subnet masks can be used to create subnets of varying sizes, accommodating different network requirements.

Subnet Mask Notation

Subnet masks can be represented in two common notations: dotted decimal and CIDR (Classless Inter-Domain Routing).

Dotted Decimal Notation: This is the traditional way of representing subnet masks, using four octets separated by periods. For example, 255.255.255.0.
CIDR Notation: This is a more compact way of representing subnet masks, using a slash followed by the number of bits in the subnet mask. For example, /24 for 255.255.255.0.

Calculating Subnet Masks

Calculating subnet masks involves determining the number of bits required for the network and host portions of an IP address. Here are the steps to calculate a subnet mask:

Determine the number of hosts required in the subnet.
Calculate the number of bits needed for the host portion. This is done by finding the smallest power of 2 that is greater than or equal to the number of hosts.
Subtract the number of host bits from 32 to get the number of network bits.
Convert the network bits to a dotted decimal notation to get the subnet mask.

💡 Note: The number of host bits is always one less than the number of hosts because one address is reserved for the network address and another for the broadcast address.

Common Subnet Masks

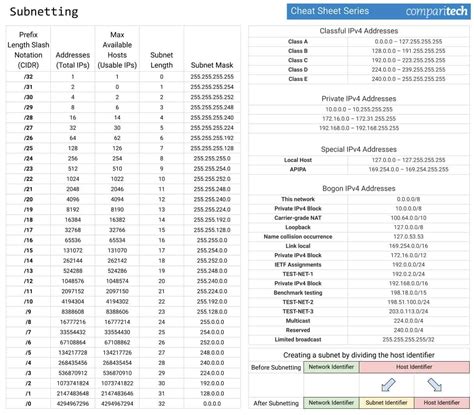

Here is a table of common subnet masks and their corresponding CIDR notations:

Subnet Mask	CIDR Notation	Number of Hosts
255.0.0.0	/8	16,777,214
255.255.0.0	/16	65,534
255.255.255.0	/24	254
255.255.255.128	/25	126
255.255.255.192	/26	62
255.255.255.224	/27	30
255.255.255.240	/28	14
255.255.255.248	/29	6
255.255.255.252	/30	2

Subnetting Examples

Let's go through a few examples to illustrate how subnet masks work in practice.

Example 1: Class C Network

Consider a Class C network with the IP address 192.168.1.0 and a subnet mask of 255.255.255.0. This network has 254 usable IP addresses (192.168.1.1 to 192.168.1.254).

Example 2: Subnetting a Class B Network

Suppose you have a Class B network with the IP address 172.16.0.0 and you need to create four subnets, each with 62 usable IP addresses. You would use a subnet mask of 255.255.255.192 (/26). This would give you four subnets, each with 62 usable IP addresses.

Example 3: Variable-Length Subnet Masking (VLSM)

VLSM allows for more efficient use of IP addresses by assigning different subnet masks to different subnets within the same network. For example, you might have a network with the IP address 10.0.0.0 and need to create subnets with varying numbers of hosts. You could use different subnet masks for each subnet, such as /24, /26, and /28, to accommodate the different requirements.

Advanced Subnet Mask Concepts

Beyond the basics, there are several advanced concepts related to subnet masks that are important to understand.

Supernetting

Supernetting, also known as route summarization, is the process of combining multiple contiguous subnets into a single, larger subnet. This is useful for reducing the size of routing tables and simplifying network management. For example, you might have four /24 subnets (192.168.1.0/24, 192.168.2.0/24, 192.168.3.0/24, and 192.168.4.0/24) that can be combined into a single /22 subnet (192.168.0.0/22).

Classless Inter-Domain Routing (CIDR)

CIDR is a method for allocating IP addresses and IP routing. It replaces the class-based addressing scheme (Class A, B, C) with a more flexible system that uses variable-length subnet masks. CIDR notation is used to specify the number of bits in the subnet mask, making it easier to represent and manage subnets.

Private and Public IP Addresses

IP addresses can be either private or public. Private IP addresses are used within a local network and are not routable on the internet. Public IP addresses are used on the internet and are routable globally. Subnet masks are used to distinguish between private and public IP addresses within a network.

Private IP address ranges are:

10.0.0.0 to 10.255.255.255
172.16.0.0 to 172.31.255.255
192.168.0.0 to 192.168.255.255

Public IP addresses are assigned by the Internet Assigned Numbers Authority (IANA) and are used for devices that need to be accessible from the internet.

Troubleshooting Subnet Mask Issues

Subnet mask issues can cause a variety of networking problems, including connectivity issues and routing errors. Here are some common troubleshooting steps:

Verify the subnet mask configuration on all devices in the network.
Check for mismatched subnet masks between devices.
Ensure that the subnet mask is correctly applied to all IP addresses in the network.
Use network diagnostic tools, such as ping and traceroute, to identify connectivity issues.
Review the network topology and ensure that all devices are correctly configured.

💡 Note: Always double-check the subnet mask configuration when troubleshooting network issues. Mismatched subnet masks are a common cause of connectivity problems.

Subnet masks are a fundamental aspect of networking, and mastering them is essential for anyone working in the field. This Cheat Sheet Subnet Mask provides a comprehensive overview of subnet masks, from the basics to advanced concepts, ensuring you have the knowledge and skills to effectively manage and troubleshoot networks.

By understanding subnet masks, you can design more efficient networks, optimize IP address allocation, and ensure reliable communication between devices. Whether you are a network administrator, engineer, or enthusiast, this guide will serve as a valuable resource for mastering subnet masks and enhancing your networking skills.
