Charpy Impact Test

The Charpy Impact Test is a standardized test that measures the amount of energy absorbed by a material during fracture. This test is crucial in materials science and engineering, as it provides valuable insights into the toughness and impact resistance of materials. Understanding the Charpy Impact Test is essential for engineers and researchers who need to ensure the reliability and safety of structures and components under various loading conditions.

Table of Contents

Understanding the Charpy Impact Test

The Charpy Impact Test is named after Georges Charpy, a French engineer who developed the test in the early 20th century. The test involves striking a notched specimen with a pendulum hammer and measuring the energy absorbed by the specimen during the fracture. This energy absorption is a key indicator of the material's toughness, which is its ability to absorb energy and plastically deform without fracturing.

The test is particularly useful for evaluating the impact resistance of materials at different temperatures. This is important because many materials, especially metals, become more brittle at lower temperatures, making them more susceptible to sudden failure under impact loads. By conducting the Charpy Impact Test at various temperatures, engineers can determine the ductile-to-brittle transition temperature (DBTT) of a material, which is the temperature below which the material becomes brittle.

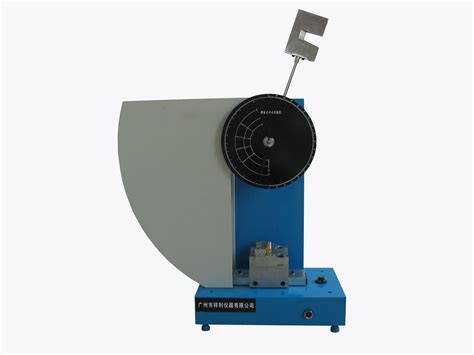

Components of the Charpy Impact Test

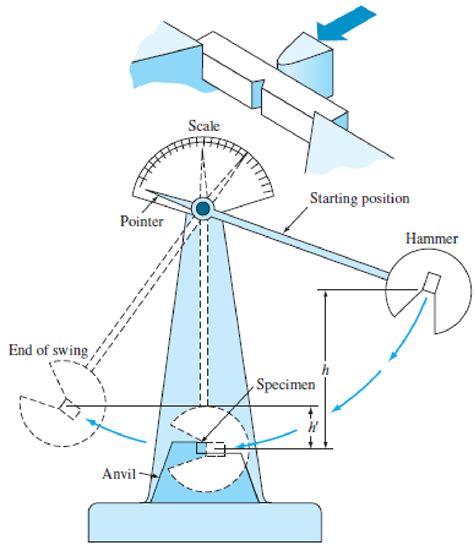

The Charpy Impact Test setup consists of several key components:

Pendulum Hammer: This is the striking mechanism that delivers the impact energy to the specimen. The hammer is typically made of hardened steel and is designed to swing freely from a fixed pivot point.
Specimen: The material to be tested is machined into a standardized specimen with a specific notch geometry. The notch acts as a stress concentrator, initiating the fracture.
Anvil: The specimen is supported on an anvil, which is a rigid base that holds the specimen in place during the test.
Energy Absorption Measurement: The energy absorbed by the specimen is measured by the difference in the height of the pendulum before and after the impact. This difference is converted into energy units, typically joules.

Preparing the Specimen for the Charpy Impact Test

Preparing the specimen is a critical step in the Charpy Impact Test. The specimen must be machined to precise dimensions and notch geometry to ensure consistent and reliable results. The most common specimen dimensions are:

Dimension	Size (mm)
Width	10
Thickness	10
Length	55
Notch Depth	2
Notch Radius	0.25

The notch is typically machined using a milling machine or a specialized notching tool. The notch geometry can vary depending on the material and the specific requirements of the test. Common notch types include:

V-notch: A V-shaped notch with a specific angle and radius.
U-notch: A U-shaped notch with a specific radius.
Keyhole-notch: A notch with a circular hole at the root, designed to simulate a more severe stress concentration.

After machining, the specimen is typically polished to remove any surface defects or machining marks that could affect the test results. The specimen is then inspected for any visible defects or irregularities.

🔍 Note: It is important to follow the standardized specimen preparation procedures to ensure the accuracy and reliability of the Charpy Impact Test results.

Conducting the Charpy Impact Test

Conducting the Charpy Impact Test involves several steps, each of which must be performed carefully to ensure accurate and reliable results. The general procedure is as follows:

Setup the Pendulum: Adjust the pendulum hammer to the desired initial height. The initial height determines the impact energy delivered to the specimen.
Position the Specimen: Place the specimen on the anvil, ensuring that the notch is facing the pendulum hammer. The specimen should be securely supported to prevent any movement during the test.
Release the Pendulum: Release the pendulum hammer, allowing it to swing freely and strike the specimen. The impact should be perpendicular to the specimen's surface.
Measure the Energy Absorption: After the impact, measure the height to which the pendulum swings back. The difference between the initial and final heights is used to calculate the energy absorbed by the specimen.
Record the Results: Record the energy absorption value, along with any observations about the fracture behavior of the specimen.

It is important to conduct multiple tests on identical specimens to obtain an average energy absorption value. This helps to account for any variability in the test results and provides a more accurate measure of the material's toughness.

🔍 Note: Ensure that the pendulum hammer is properly calibrated and maintained to guarantee accurate and consistent test results.

Interpreting the Results of the Charpy Impact Test

The results of the Charpy Impact Test provide valuable information about the toughness and impact resistance of a material. The energy absorption value is a direct measure of the material's ability to absorb energy and plastically deform without fracturing. A higher energy absorption value indicates greater toughness and impact resistance.

In addition to the energy absorption value, the fracture behavior of the specimen can provide insights into the material's ductility and brittleness. For example, a ductile material will typically exhibit a fibrous fracture surface with significant plastic deformation, while a brittle material will show a flat, crystalline fracture surface with little or no plastic deformation.

The Charpy Impact Test can also be used to determine the ductile-to-brittle transition temperature (DBTT) of a material. This is done by conducting the test at various temperatures and plotting the energy absorption values against temperature. The DBTT is the temperature at which the energy absorption value drops sharply, indicating a transition from ductile to brittle behavior.

Understanding the DBTT is crucial for selecting materials for applications where they may be exposed to low temperatures. For example, materials used in cryogenic applications or in cold climates must have a low DBTT to ensure they remain ductile and tough at low temperatures.

🔍 Note: The Charpy Impact Test results should be interpreted in conjunction with other material properties and test data to provide a comprehensive understanding of the material's behavior under impact loading.

Applications of the Charpy Impact Test

The Charpy Impact Test is widely used in various industries to evaluate the toughness and impact resistance of materials. Some of the key applications include:

Aerospace Industry: Materials used in aircraft structures must withstand sudden impact loads without failing. The Charpy Impact Test helps ensure that these materials have sufficient toughness and impact resistance.
Automotive Industry: Automotive components, such as chassis and suspension parts, are subjected to impact loads during collisions. The Charpy Impact Test is used to evaluate the impact resistance of these components and ensure they meet safety standards.
Construction Industry: Structural materials, such as steel and concrete, must have adequate toughness to withstand impact loads from events like earthquakes or explosions. The Charpy Impact Test helps in selecting materials with the required impact resistance.
Energy Industry: Materials used in pipelines, pressure vessels, and other energy infrastructure must withstand impact loads from external sources or internal pressure fluctuations. The Charpy Impact Test ensures that these materials have sufficient toughness to prevent catastrophic failures.

The Charpy Impact Test is also used in research and development to study the effects of different processing conditions, heat treatments, and alloying elements on the toughness and impact resistance of materials. This information is crucial for developing new materials with improved performance characteristics.

🔍 Note: The Charpy Impact Test is just one of several tests used to evaluate the mechanical properties of materials. It should be used in conjunction with other tests, such as tensile testing and fatigue testing, to provide a comprehensive understanding of the material's behavior.

Factors Affecting the Charpy Impact Test Results

Several factors can affect the results of the Charpy Impact Test, and it is important to consider these factors when interpreting the test data. Some of the key factors include:

Specimen Preparation: The dimensions, notch geometry, and surface finish of the specimen can significantly affect the test results. It is crucial to follow standardized specimen preparation procedures to ensure consistent and reliable results.
Test Temperature: The temperature at which the test is conducted can greatly influence the energy absorption value. Materials tend to become more brittle at lower temperatures, resulting in lower energy absorption values.
Impact Velocity: The velocity at which the pendulum hammer strikes the specimen can affect the test results. Higher impact velocities can result in higher energy absorption values due to the increased strain rate.
Material Properties: The inherent properties of the material, such as its microstructure, grain size, and alloying elements, can significantly affect the toughness and impact resistance. Understanding these properties is essential for interpreting the test results.

By carefully controlling these factors, engineers and researchers can obtain accurate and reliable Charpy Impact Test results, which can be used to make informed decisions about material selection and design.

🔍 Note: It is important to document all test conditions and parameters to ensure that the Charpy Impact Test results can be accurately reproduced and compared with other test data.

Advancements in Charpy Impact Testing

Over the years, there have been several advancements in Charpy Impact Testing techniques and equipment. These advancements have improved the accuracy, reliability, and versatility of the test. Some of the key advancements include:

High-Speed Cameras: High-speed cameras can capture the fracture process in real-time, providing valuable insights into the dynamic behavior of materials under impact loading.
Instrumented Charpy Test: Instrumented Charpy Test equipment can measure the force and displacement during the impact event, providing a more detailed analysis of the material's response to impact loading.
Dynamic Mechanical Analysis (DMA): DMA techniques can be used to study the viscoelastic properties of materials under dynamic loading conditions, providing additional information about their impact resistance.

Finite Element Analysis (FEA): FEA simulations can model the Charpy Impact Test and predict the material's behavior under various loading conditions. This can help in optimizing the test parameters and interpreting the results.

These advancements have expanded the capabilities of the Charpy Impact Test, making it a more powerful tool for evaluating the toughness and impact resistance of materials. As technology continues to evolve, it is likely that even more sophisticated techniques and equipment will be developed, further enhancing the accuracy and reliability of the test.

🔍 Note: Staying updated with the latest advancements in Charpy Impact Testing can help engineers and researchers leverage new technologies to improve their testing capabilities and obtain more accurate results.

Challenges and Limitations of the Charpy Impact Test

While the Charpy Impact Test is a valuable tool for evaluating the toughness and impact resistance of materials, it also has some challenges and limitations. Understanding these challenges is important for interpreting the test results accurately and making informed decisions about material selection and design.

Specimen Size and Geometry: The Charpy Impact Test is typically conducted on small, notched specimens. The results may not be directly applicable to larger components or structures with different geometries.
Strain Rate Effects: The test is conducted at a high strain rate, which may not be representative of the loading conditions experienced by materials in real-world applications. This can affect the accuracy of the test results.
Temperature Effects: The test results can be highly sensitive to temperature changes. Materials that exhibit ductile-to-brittle transition behavior may show significant variations in energy absorption values at different temperatures.
Material Anisotropy: The test results can be influenced by the anisotropy of the material, which is the directional dependence of its properties. This can be particularly important for materials with a strong texture or fiber orientation.

To address these challenges, it is important to conduct the Charpy Impact Test under controlled conditions and interpret the results in the context of the specific application and loading conditions. Additionally, combining the Charpy Impact Test with other testing methods, such as tensile testing and fatigue testing, can provide a more comprehensive understanding of the material's behavior.

🔍 Note: Recognizing the limitations of the Charpy Impact Test and using it in conjunction with other testing methods can help ensure accurate and reliable material evaluations.

In conclusion, the Charpy Impact Test is a crucial tool in materials science and engineering for evaluating the toughness and impact resistance of materials. By understanding the principles, procedures, and applications of the test, engineers and researchers can make informed decisions about material selection and design. The test provides valuable insights into the behavior of materials under impact loading, helping to ensure the reliability and safety of structures and components in various industries. As technology continues to advance, the Charpy Impact Test will remain an essential method for assessing the performance of materials in demanding applications.
