Ch2cl2 Lewis Structure

Understanding the Ch2cl2 Lewis Structure is fundamental for anyone studying chemistry, particularly organic chemistry. This structure helps us visualize the arrangement of atoms and electrons in a molecule, providing insights into its properties and reactivity. In this post, we will delve into the details of the Ch2cl2 Lewis Structure, its significance, and how to draw it step-by-step.

Table of Contents

What is the Ch2cl2 Lewis Structure?

The Ch2cl2 Lewis Structure refers to the Lewis dot structure of dichloromethane, a chemical compound with the formula CH2Cl2. This structure represents the valence electrons of the atoms in the molecule and how they are shared to form bonds. Understanding this structure is crucial for predicting the molecule's behavior in chemical reactions and its physical properties.

Importance of the Ch2cl2 Lewis Structure

The Ch2cl2 Lewis Structure is important for several reasons:

It helps in understanding the bonding and molecular geometry of dichloromethane.
It aids in predicting the reactivity of the molecule in various chemical reactions.
It provides insights into the physical properties of dichloromethane, such as its polarity and boiling point.
It is essential for students and researchers in the field of chemistry to grasp the fundamentals of molecular structure.

Drawing the Ch2cl2 Lewis Structure

Drawing the Ch2cl2 Lewis Structure involves several steps. Let's go through them one by one:

Step 1: Determine the Total Number of Valence Electrons

The first step is to determine the total number of valence electrons in the molecule. Dichloromethane (CH2Cl2) consists of one carbon (C) atom, two hydrogen (H) atoms, and two chlorine (Cl) atoms. The valence electrons for each atom are as follows:

Carbon (C): 4 valence electrons
Hydrogen (H): 1 valence electron each
Chlorine (Cl): 7 valence electrons each

Therefore, the total number of valence electrons is:

4 (from C) + 2 * 1 (from H) + 2 * 7 (from Cl) = 4 + 2 + 14 = 20 valence electrons.

Step 2: Identify the Central Atom

The central atom in the Ch2cl2 Lewis Structure is the carbon (C) atom. This is because carbon is the least electronegative element in the molecule and can form bonds with multiple atoms.

Step 3: Arrange the Atoms

Arrange the atoms around the central carbon atom. The two hydrogen atoms and two chlorine atoms will be bonded to the carbon atom.

Step 4: Form Single Bonds

Start by forming single bonds between the central carbon atom and the surrounding hydrogen and chlorine atoms. Each single bond consists of 2 electrons.

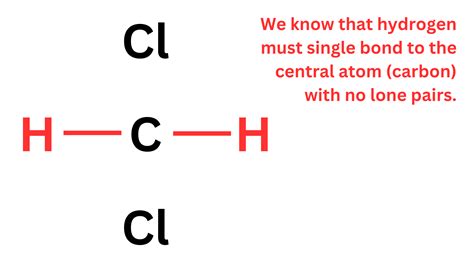

After forming single bonds, the structure will look like this:

Step 5: Distribute Remaining Electrons

After forming the single bonds, we have used 8 electrons (4 bonds * 2 electrons each). This leaves us with 12 valence electrons to distribute.

Place the remaining electrons around the chlorine atoms to complete their octets. Each chlorine atom needs 6 more electrons to complete its octet. Place 3 pairs of electrons around each chlorine atom.

Step 6: Check for Formal Charges

Ensure that the structure has no formal charges. Formal charges are calculated as follows:

Formal Charge = (Number of valence electrons in free atom) - (Number of lone pair electrons) - (Number of bonding electrons / 2)

For the Ch2cl2 Lewis Structure, the formal charges should be zero for all atoms, indicating a stable structure.

💡 Note: If there are formal charges, you may need to adjust the structure by forming double bonds or moving electrons to achieve a more stable configuration.

Molecular Geometry of Ch2cl2 Lewis Structure

The molecular geometry of dichloromethane, as depicted by the Ch2cl2 Lewis Structure, is tetrahedral. This means that the carbon atom is at the center, and the four atoms (two hydrogen and two chlorine) are arranged in a three-dimensional shape with bond angles of approximately 109.5 degrees.

This geometry is crucial for understanding the molecule's polarity and reactivity. The tetrahedral shape allows for a symmetrical distribution of electrons, which affects the molecule's physical and chemical properties.

Properties of Dichloromethane

Understanding the Ch2cl2 Lewis Structure helps in predicting the properties of dichloromethane. Some key properties include:

Polarity: Dichloromethane is a polar molecule due to the electronegativity difference between carbon, hydrogen, and chlorine atoms. The polar nature of the molecule affects its solubility and reactivity.
Boiling Point: The boiling point of dichloromethane is relatively high compared to similar molecules due to its polarity and intermolecular forces.
Solubility: Dichloromethane is soluble in organic solvents but not in water, making it useful in various chemical processes.
Reactivity: The molecule can undergo substitution and elimination reactions, making it a versatile reagent in organic synthesis.

Applications of Dichloromethane

Dichloromethane has numerous applications in various industries due to its unique properties. Some of the key applications include:

Solvent: It is widely used as a solvent in paint strippers, adhesives, and pharmaceuticals due to its ability to dissolve a wide range of substances.
Chemical Synthesis: It is used as a reagent in the synthesis of various organic compounds, including pharmaceuticals and agrochemicals.
Extraction: It is used in the extraction of caffeine from coffee beans and other natural products.
Blowing Agent: It is used as a blowing agent in the production of polyurethane foams.

Safety Considerations

While dichloromethane has many useful applications, it is also important to consider its safety aspects. Exposure to dichloromethane can have health effects, including:

Respiratory Issues: Inhalation of dichloromethane vapors can cause respiratory irritation and other health problems.
Skin Irritation: Prolonged contact with the skin can cause irritation and other adverse effects.
Carcinogenicity: Long-term exposure to dichloromethane has been linked to an increased risk of cancer.

Therefore, it is essential to handle dichloromethane with care, using appropriate personal protective equipment and following safety guidelines.

To summarize, the Ch2cl2 Lewis Structure provides a fundamental understanding of the molecular arrangement and properties of dichloromethane. By following the steps to draw the structure, we can gain insights into the molecule’s bonding, geometry, and reactivity. This knowledge is crucial for students and researchers in the field of chemistry, as well as for those working in industries that utilize dichloromethane. Understanding the Ch2cl2 Lewis Structure helps in predicting the molecule’s behavior in various chemical reactions and its physical properties, making it an essential tool in the study of organic chemistry.
