In the realm of electronics and electrical engineering, precision and accuracy are paramount. Whether you're a professional electrician, a hobbyist tinkerer, or a student learning the ropes, having a reliable tool to measure electrical values is essential. One such tool that stands out in the market is the Cen Tech Digital Multimeter. This versatile device is designed to handle a wide range of measurements, making it an indispensable asset for anyone working with electrical systems.
Understanding the Cen Tech Digital Multimeter

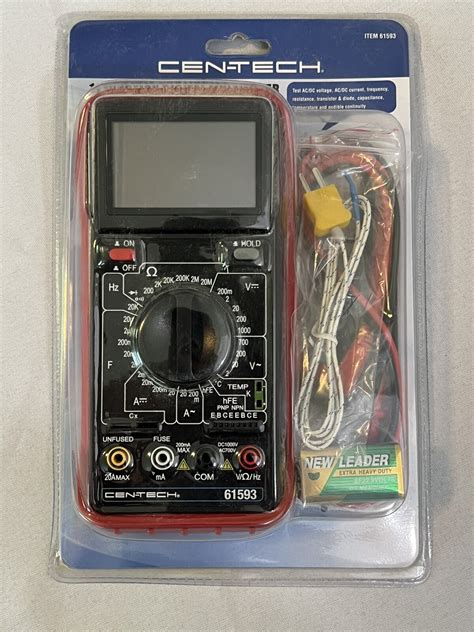

The Cen Tech Digital Multimeter is a compact, user-friendly device that offers a plethora of features to cater to various measurement needs. It is equipped with a digital display that provides clear and precise readings, ensuring that users can accurately measure voltage, current, resistance, and more. The multimeter is designed with safety in mind, featuring overload protection to safeguard both the user and the device.
Key Features of the Cen Tech Digital Multimeter
The Cen Tech Digital Multimeter comes packed with features that make it a top choice for professionals and enthusiasts alike. Some of the key features include:
- Multiple Measurement Functions: The multimeter can measure AC and DC voltage, AC and DC current, resistance, and continuity. It also includes a diode test function.
- Auto-Ranging: This feature automatically selects the appropriate range for the measurement, making it easier to use and reducing the risk of errors.
- Data Hold: The data hold function allows users to freeze the display, making it easier to record readings.
- Low Battery Indicator: The multimeter alerts users when the battery is low, ensuring that it is always ready for use.
- Compact and Portable Design: The device is lightweight and easy to carry, making it ideal for fieldwork and on-the-go measurements.
How to Use the Cen Tech Digital Multimeter
Using the Cen Tech Digital Multimeter is straightforward, thanks to its intuitive design and user-friendly interface. Here is a step-by-step guide to help you get started:
Setting Up the Multimeter
Before you begin, ensure that the multimeter is powered on and that the battery is fully charged. Select the appropriate measurement function by turning the dial to the desired setting. For example, to measure voltage, turn the dial to the 'V' setting.
Connecting the Probes
Insert the black probe into the COM (common) port and the red probe into the appropriate port based on the measurement you want to take. For voltage and current measurements, use the VΩmA port. For higher current measurements, use the 10A port.
Taking Measurements
To measure voltage, connect the probes to the circuit or component you want to test. The multimeter will automatically display the voltage reading on the screen. For current measurements, break the circuit and connect the probes in series with the component. The multimeter will display the current flowing through the circuit.
Using the Continuity Test
To test for continuity, select the continuity function by turning the dial to the '∞' symbol. Connect the probes to the two points you want to test. If there is a complete circuit, the multimeter will beep, indicating continuity. If there is a break in the circuit, the multimeter will not beep.
🔧 Note: Always ensure that the circuit is powered off before taking continuity measurements to avoid damaging the multimeter or the circuit.
Safety Precautions When Using the Cen Tech Digital Multimeter
While the Cen Tech Digital Multimeter is designed with safety features, it is essential to follow certain precautions to ensure safe operation:
- Never Measure Live Circuits: Always turn off the power to the circuit before taking measurements to avoid electrical shock.
- Use Insulated Probes: Ensure that the probes are in good condition and that the insulation is intact to prevent accidental contact with live parts.
- Avoid Overloading: Do not exceed the maximum measurement range specified for the multimeter to prevent damage to the device.
- Store Properly: When not in use, store the multimeter in a safe place to protect it from physical damage and environmental factors.
Applications of the Cen Tech Digital Multimeter
The Cen Tech Digital Multimeter is a versatile tool that can be used in various applications. Some of the common uses include:
- Electrical Troubleshooting: Identify and diagnose electrical issues in circuits and components.
- Automotive Repairs: Measure battery voltage, alternator output, and other electrical parameters in vehicles.
- Home Improvement: Test electrical outlets, switches, and wiring in residential settings.
- Educational Purposes: Use in classrooms and labs to teach students about electrical measurements and circuits.
Comparing the Cen Tech Digital Multimeter with Other Models
When choosing a digital multimeter, it's essential to compare different models to find the one that best suits your needs. Here is a comparison of the Cen Tech Digital Multimeter with some other popular models:
| Feature | Cen Tech Digital Multimeter | Fluke 117 | Klein Tools MM600 |
|---|---|---|---|
| Measurement Functions | Voltage, Current, Resistance, Continuity, Diode Test | Voltage, Current, Resistance, Continuity, Diode Test, Capacitance, Frequency | Voltage, Current, Resistance, Continuity, Diode Test |
| Auto-Ranging | Yes | Yes | Yes |
| Data Hold | Yes | Yes | Yes |
| Low Battery Indicator | Yes | Yes | Yes |
| Price | Affordable | Mid-Range | Mid-Range |
The Cen Tech Digital Multimeter offers a good balance of features and affordability, making it an excellent choice for beginners and professionals alike. While models like the Fluke 117 and Klein Tools MM600 offer additional features, they come at a higher price point.
Maintaining Your Cen Tech Digital Multimeter
To ensure the longevity and accuracy of your Cen Tech Digital Multimeter, it is essential to perform regular maintenance. Here are some tips to keep your multimeter in top condition:
- Clean the Probes: Regularly clean the probes to remove any dirt or corrosion that may affect measurements.
- Check the Battery: Replace the battery when the low battery indicator is displayed to ensure continuous operation.
- Store Properly: Keep the multimeter in a dry, cool place away from direct sunlight and extreme temperatures.
- Calibrate Periodically: Have the multimeter calibrated by a professional to maintain its accuracy over time.
🔧 Note: Always refer to the user manual for specific maintenance instructions and guidelines.
In conclusion, the Cen Tech Digital Multimeter is a reliable and versatile tool that offers a wide range of features to cater to various measurement needs. Its user-friendly design, safety features, and affordability make it an excellent choice for professionals, hobbyists, and students alike. By following the guidelines and safety precautions outlined in this post, you can ensure accurate and safe measurements with your Cen Tech Digital Multimeter.
