Cement Deck Post Footings

Building a sturdy and durable deck requires a solid foundation, and one of the most critical components of this foundation is the cement deck post footings. These footings provide the necessary support and stability for your deck, ensuring it can withstand various weather conditions and heavy loads. Understanding the importance of cement deck post footings and how to install them correctly is essential for any deck-building project.

Table of Contents

Understanding Cement Deck Post Footings

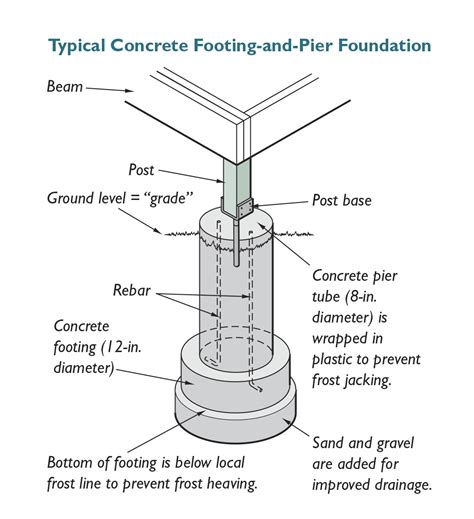

Cement deck post footings are concrete structures that support the vertical posts of a deck. They are typically buried underground and provide a stable base that distributes the weight of the deck evenly. Properly installed footings prevent the deck from shifting, settling, or collapsing over time. There are several types of footings, including:

Concrete Block Footings: These are made from interlocking concrete blocks and are often used for smaller decks.
Sonotube Footings: These are cylindrical forms made of cardboard or plastic that are filled with concrete.
Pour-in-Place Footings: These are custom-made footings poured directly into a dug-out hole.

Importance of Proper Installation

Proper installation of cement deck post footings is crucial for the longevity and safety of your deck. Here are some key reasons why:

Stability: Well-installed footings ensure that the deck remains level and stable, preventing wobbling or shifting.
Load Distribution: Footings distribute the weight of the deck evenly, reducing the risk of structural failure.
Weather Resistance: Properly installed footings can withstand various weather conditions, including freezing temperatures and heavy rainfall.
Code Compliance: Many building codes require specific standards for deck footings to ensure safety and structural integrity.

Steps to Install Cement Deck Post Footings

Installing cement deck post footings involves several steps. Here is a detailed guide to help you through the process:

1. Planning and Preparation

Before you begin, it's essential to plan your deck layout and determine the locations for your footings. Consider the following:

Deck Size and Shape: Measure the dimensions of your deck and mark the locations for the footings.
Local Building Codes: Check local building codes and regulations to ensure compliance.
Soil Conditions: Assess the soil conditions to determine the depth and size of the footings.

2. Marking the Footing Locations

Use stakes and strings to mark the exact locations of your footings. Ensure that the marks are accurate and level. This step is crucial for maintaining the structural integrity of your deck.

3. Digging the Holes

Dig holes for the footings at the marked locations. The depth and width of the holes will depend on your local building codes and soil conditions. Typically, holes should be at least 12 inches in diameter and 12 inches deep for a standard deck.

🛠️ Note: Ensure that the holes are dug below the frost line to prevent heaving during freezing temperatures.

4. Adding Gravel and Sand

Fill the bottom of each hole with a layer of gravel and sand to provide a stable base for the concrete. This layer helps with drainage and prevents the footing from settling unevenly.

5. Setting the Forms

Place the forms (Sonotubes or other cylindrical forms) into the holes. Ensure that the forms are level and plumb. You can use stakes and strings to maintain alignment.

6. Pouring the Concrete

Mix the concrete according to the manufacturer's instructions and pour it into the forms. Fill the forms to the top and use a trowel to smooth the surface. Allow the concrete to cure for at least 24 hours before removing the forms.

🛠️ Note: Adding water to the concrete mix can weaken the structure, so follow the mixing instructions carefully.

7. Attaching the Posts

Once the concrete has cured, attach the deck posts to the footings using post anchors or brackets. Ensure that the posts are level and plumb before securing them in place.

8. Backfilling

Backfill the area around the footings with soil, ensuring that the soil is compacted to prevent settling. This step helps to stabilize the footings and provides additional support for the deck.

Common Mistakes to Avoid

When installing cement deck post footings, it's essential to avoid common mistakes that can compromise the stability and longevity of your deck. Here are some pitfalls to watch out for:

Inadequate Depth: Digging holes that are too shallow can lead to footings that are not stable enough to support the deck.
Poor Soil Preparation: Failing to add gravel and sand to the bottom of the holes can result in uneven settling.
Improper Concrete Mixing: Adding too much water to the concrete mix can weaken the footings.
Incorrect Post Alignment: Ensuring that the posts are level and plumb is crucial for the overall stability of the deck.

Maintaining Your Cement Deck Post Footings

Maintaining your cement deck post footings is essential for the long-term stability of your deck. Regular inspections and maintenance can help identify and address any issues before they become significant problems. Here are some tips for maintaining your footings:

Inspect Regularly: Check the footings for signs of cracking, settling, or other damage.
Address Water Issues: Ensure that water drains away from the footings to prevent erosion and settling.
Repair Cracks: If you notice any cracks in the concrete, repair them promptly to prevent further damage.
Check for Level: Periodically check the level of the deck to ensure that the footings are still providing adequate support.

By following these maintenance tips, you can extend the lifespan of your cement deck post footings and ensure that your deck remains stable and safe for years to come.

Conclusion

Installing cement deck post footings is a critical step in building a sturdy and durable deck. Proper planning, preparation, and installation techniques are essential for ensuring that your footings provide the necessary support and stability. By avoiding common mistakes and maintaining your footings regularly, you can enjoy a safe and long-lasting deck. Whether you choose concrete block, Sonotube, or pour-in-place footings, following the steps outlined in this guide will help you achieve a solid foundation for your deck.
