Cellular respiration is a fundamental biological process that occurs in all living organisms. It is the process by which cells convert nutrients into energy, specifically adenosine triphosphate (ATP), which is the primary energy currency of the cell. Understanding the cellular respiration picture involves delving into the intricate steps and stages of this process, which can be broadly categorized into three main phases: glycolysis, the Krebs cycle, and the electron transport chain.
Understanding the Cellular Respiration Picture
The cellular respiration picture is a comprehensive overview of how cells generate energy. This process is crucial for sustaining life, as it provides the energy needed for various cellular activities, including growth, reproduction, and maintenance. The cellular respiration picture can be visualized as a series of interconnected pathways that work together to produce ATP from glucose.
Glycolysis: The First Step in Cellular Respiration
Glycolysis is the initial stage of cellular respiration, occurring in the cytoplasm of the cell. This process involves the breakdown of glucose, a six-carbon sugar, into two molecules of pyruvate, a three-carbon compound. Glycolysis can be further divided into two phases: the energy-investment phase and the energy-payoff phase.
The energy-investment phase requires the input of two ATP molecules to phosphorylate glucose, forming glucose-6-phosphate. This is followed by a series of reactions that convert glucose-6-phosphate into two molecules of glyceraldehyde-3-phosphate (G3P). The energy-payoff phase begins with the oxidation of G3P to 1,3-bisphosphoglycerate, which is then converted to 3-phosphoglycerate, yielding two ATP molecules and two NADH molecules. The final steps of glycolysis convert 3-phosphoglycerate to pyruvate, producing two more ATP molecules.
Overall, glycolysis results in a net gain of two ATP molecules and two NADH molecules per glucose molecule. Additionally, two pyruvate molecules are produced, which can enter the next stage of cellular respiration, the Krebs cycle.
The Krebs Cycle: The Central Hub of Cellular Respiration
The Krebs cycle, also known as the citric acid cycle or the TCA cycle, occurs in the mitochondria of the cell. This cycle is a series of chemical reactions that further break down the pyruvate molecules produced during glycolysis. The Krebs cycle is crucial for generating energy-rich molecules that will be used in the electron transport chain.
The Krebs cycle begins with the conversion of pyruvate to acetyl-CoA, which enters the cycle. Acetyl-CoA combines with oxaloacetate to form citrate, which is then converted through a series of reactions to produce various intermediates, including alpha-ketoglutarate, succinyl-CoA, succinate, fumarate, and malate. These intermediates are eventually converted back to oxaloacetate, completing the cycle.
During the Krebs cycle, several energy-rich molecules are produced, including:
- NADH: Nicotinamide adenine dinucleotide, which carries electrons to the electron transport chain.
- FADH2: Flavin adenine dinucleotide, another electron carrier.
- ATP: Adenosine triphosphate, the primary energy currency of the cell.
- CO2: Carbon dioxide, a waste product that is released as a byproduct of the cycle.
The Krebs cycle is a critical component of the cellular respiration picture, as it provides the necessary intermediates and energy-rich molecules for the electron transport chain.
The Electron Transport Chain: The Final Stage of Cellular Respiration
The electron transport chain is the final stage of cellular respiration, occurring in the inner membrane of the mitochondria. This process involves the transfer of electrons from NADH and FADH2 to oxygen, ultimately producing a large amount of ATP. The electron transport chain consists of a series of protein complexes embedded in the mitochondrial membrane, each of which facilitates the transfer of electrons and the pumping of protons across the membrane.
The electron transport chain can be visualized as a series of steps:
- Complex I: Accepts electrons from NADH and passes them to coenzyme Q (CoQ).
- Complex II: Accepts electrons from FADH2 and passes them to CoQ.
- Complex III: Accepts electrons from CoQ and passes them to cytochrome c.
- Complex IV: Accepts electrons from cytochrome c and passes them to oxygen, forming water.
As electrons move through the electron transport chain, protons are pumped across the mitochondrial membrane, creating a proton gradient. This gradient drives the synthesis of ATP through a process called chemiosmosis, where ATP synthase uses the energy from the proton gradient to phosphorylate ADP to ATP.
The electron transport chain is the most efficient stage of cellular respiration, producing the majority of the ATP molecules generated during the process. The overall cellular respiration picture can be summarized as follows:
| Stage | Location | Products |
|---|---|---|
| Glycolysis | Cytoplasm | 2 ATP, 2 NADH, 2 Pyruvate |
| Krebs Cycle | Mitochondria | 2 ATP, 6 NADH, 2 FADH2, 2 CO2 |
| Electron Transport Chain | Mitochondria | 34-36 ATP |
In total, the cellular respiration picture results in the production of approximately 36-38 ATP molecules per glucose molecule, depending on the efficiency of the electron transport chain.
📝 Note: The exact number of ATP molecules produced can vary slightly depending on the specific conditions and the organism.
Regulation of Cellular Respiration
Cellular respiration is a tightly regulated process, ensuring that the cell maintains an optimal balance of energy production and consumption. Several factors influence the regulation of cellular respiration, including:
- Availability of Substrates: The presence of glucose and oxygen is essential for cellular respiration to occur. When glucose levels are low, the cell may switch to alternative energy sources, such as fatty acids or amino acids.
- Energy Demand: The cell's energy demand can influence the rate of cellular respiration. When energy demand is high, the cell increases the rate of respiration to produce more ATP.
- Feedback Inhibition: The end products of cellular respiration, such as ATP and NADH, can inhibit key enzymes in the pathway, reducing the rate of respiration when energy levels are sufficient.
Understanding the regulation of cellular respiration is crucial for comprehending how cells adapt to changing conditions and maintain energy homeostasis.
Cellular Respiration in Different Organisms
While the basic principles of cellular respiration are conserved across all living organisms, there are variations in the specific pathways and mechanisms used. For example, plants and animals have different energy requirements and environmental conditions, leading to differences in their cellular respiration processes.

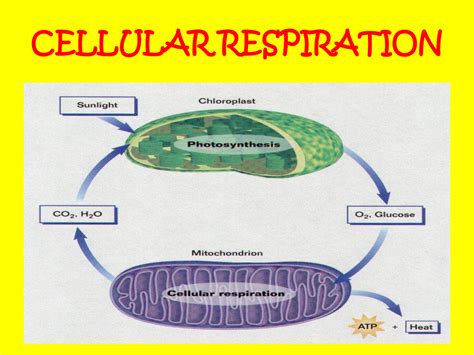

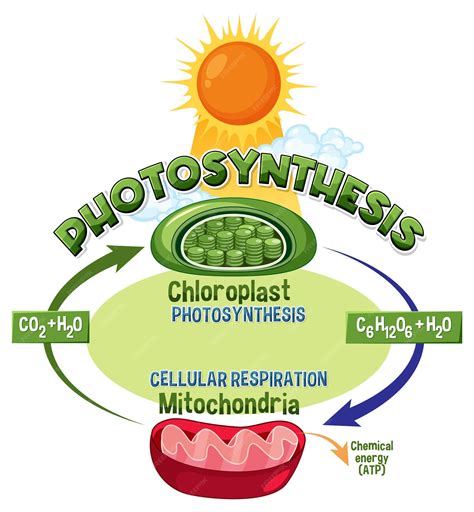

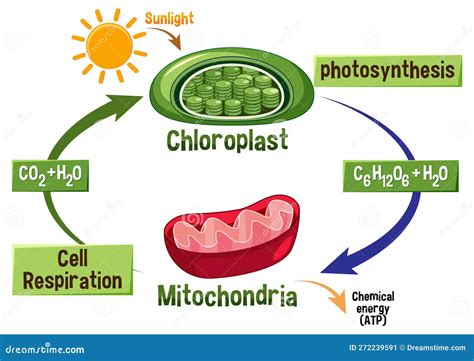

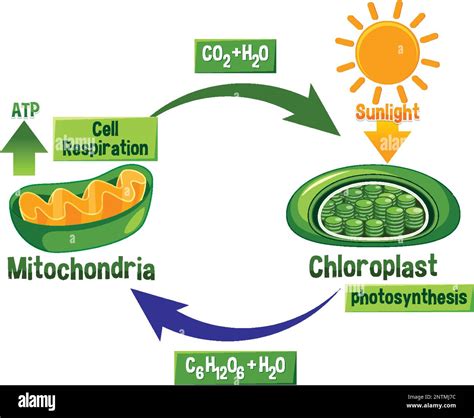

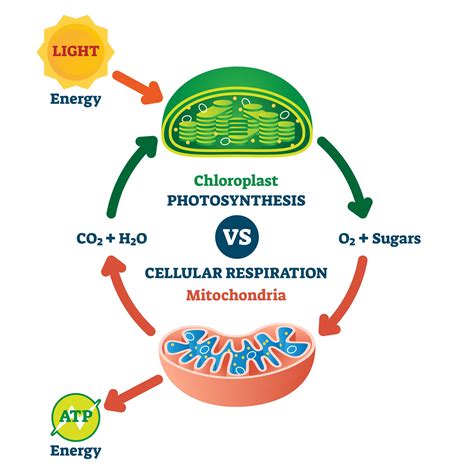

In plants, cellular respiration occurs primarily in the mitochondria of cells, similar to animals. However, plants also have the ability to perform photosynthesis, which provides them with an additional source of energy. During photosynthesis, plants convert light energy into chemical energy, producing glucose and oxygen. This glucose can then be used in cellular respiration to generate ATP.
In contrast, animals rely solely on cellular respiration for energy production. They obtain glucose from the breakdown of carbohydrates in their diet and use it to fuel their metabolic processes. Animals also have specialized tissues and organs, such as muscles and the brain, which have high energy demands and require efficient energy production.
Understanding the cellular respiration picture in different organisms provides insights into the diverse strategies used by living things to generate energy and sustain life.
In summary, the cellular respiration picture is a complex and intricate process that involves the breakdown of glucose to produce ATP. This process is essential for sustaining life and is regulated by various factors to ensure optimal energy production. By understanding the cellular respiration picture, we gain a deeper appreciation for the fundamental biological processes that underlie all living organisms.
