Cell Cycle Picture

The cell cycle is a fundamental process in biology that governs the growth and division of cells. Understanding the cell cycle picture is crucial for comprehending how cells replicate and maintain genetic stability. This process is divided into several phases, each with distinct characteristics and functions. By delving into the intricacies of the cell cycle, we can gain insights into cellular behavior, disease mechanisms, and potential therapeutic targets.

Table of Contents

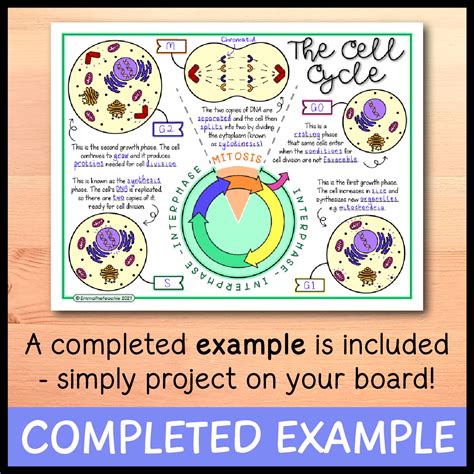

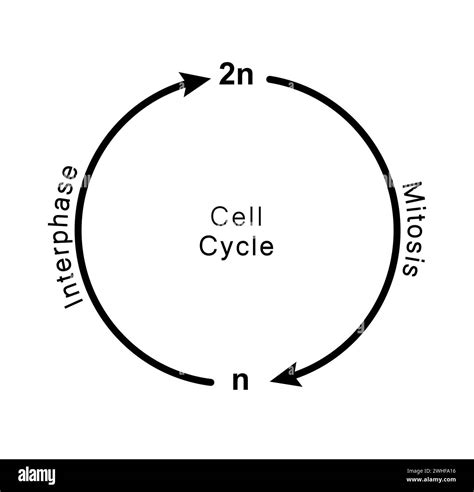

Phases of the Cell Cycle

The cell cycle is broadly divided into two main phases: interphase and the mitotic (M) phase. Interphase is further subdivided into three sub-phases: G1 (Gap 1), S (Synthesis), and G2 (Gap 2). The M phase includes mitosis and cytokinesis.

Interphase

Interphase is the longest phase of the cell cycle, during which the cell grows, prepares for division, and replicates its DNA. It is divided into three sub-phases:

G1 Phase (Gap 1): This is the first gap phase where the cell grows in size, synthesizes proteins, and prepares for DNA replication. It is a critical checkpoint where the cell decides whether to proceed with division or enter a quiescent state (G0 phase).
S Phase (Synthesis): During this phase, the cell replicates its DNA. Each chromosome is duplicated, resulting in two identical sister chromatids. This phase is essential for ensuring that the daughter cells receive an exact copy of the genetic material.
G2 Phase (Gap 2): This is the second gap phase where the cell grows further, synthesizes proteins, and prepares for mitosis. It is another checkpoint where the cell ensures that DNA replication is complete and accurate before entering mitosis.

Mitotic (M) Phase

The M phase is the shortest but most dynamic phase of the cell cycle. It is divided into two main events: mitosis and cytokinesis.

Mitosis: This process involves the division of the nucleus and is further divided into four sub-phases: prophase, prometaphase, metaphase, and anaphase. During mitosis, the duplicated chromosomes are separated and distributed equally to the two daughter cells.
Cytokinesis: This is the final stage of the cell cycle where the cytoplasm divides, resulting in two separate daughter cells. In animal cells, a contractile ring forms around the cell's equator, pinching the cell in two. In plant cells, a cell plate forms at the center of the cell, which eventually becomes the new cell wall.

Regulation of the Cell Cycle

The cell cycle is tightly regulated by a complex network of proteins and signaling pathways. Key regulators include cyclins, cyclin-dependent kinases (Cdks), and checkpoint proteins.

Cyclins and Cdks

Cyclins are proteins that fluctuate in concentration throughout the cell cycle. They bind to and activate Cdks, which are enzymes that phosphorylate target proteins to drive the cell cycle forward. Different cyclins and Cdks are active during specific phases of the cell cycle:

G1 Phase: Cyclin D and Cyclin E bind to Cdk4/6 and Cdk2, respectively, to promote cell growth and DNA replication.
S Phase: Cyclin E and Cyclin A bind to Cdk2 to drive DNA synthesis.
G2 Phase: Cyclin A and Cyclin B bind to Cdk1 to prepare the cell for mitosis.
M Phase: Cyclin B binds to Cdk1 to initiate and drive mitosis.

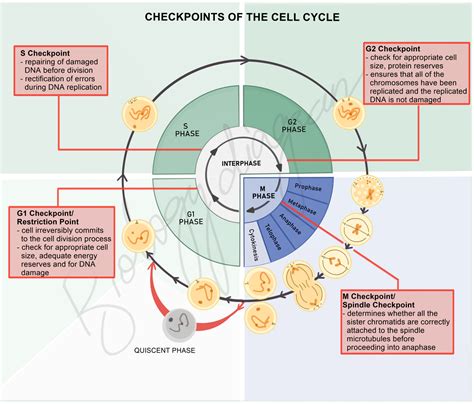

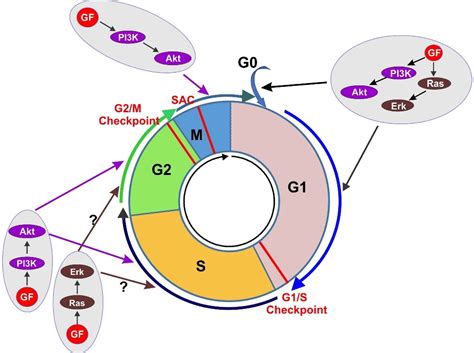

Checkpoint Proteins

Checkpoint proteins monitor the cell cycle and ensure that each phase is completed accurately before proceeding to the next. Key checkpoints include:

G1/S Checkpoint: Ensures that the cell is ready to replicate its DNA before entering the S phase.
G2/M Checkpoint: Ensures that DNA replication is complete and accurate before entering mitosis.
Spindle Assembly Checkpoint: Ensures that all chromosomes are properly attached to the spindle fibers before anaphase begins.

Cell Cycle Dysregulation and Disease

Dysregulation of the cell cycle is a hallmark of many diseases, including cancer. Mutations in cell cycle regulators can lead to uncontrolled cell proliferation, genomic instability, and tumor formation. Understanding the cell cycle picture and its dysregulation is essential for developing targeted therapies.

Cancer and the Cell Cycle

In cancer cells, the cell cycle is often dysregulated due to mutations in key regulators. Common alterations include:

Overactivation of Cyclins and Cdks: Leading to uncontrolled cell proliferation.
Inactivation of Checkpoint Proteins: Allowing cells to bypass critical checkpoints and accumulate genetic mutations.
Loss of Tumor Suppressor Genes: Such as p53 and Rb, which normally inhibit cell cycle progression.

Targeting these dysregulated pathways with specific inhibitors can help restore normal cell cycle control and inhibit tumor growth.

Visualizing the Cell Cycle

Visualizing the cell cycle picture is crucial for understanding its dynamics and identifying potential targets for therapeutic intervention. Various techniques can be used to visualize different phases of the cell cycle:

Fluorescence Microscopy

Fluorescence microscopy allows researchers to visualize specific cellular structures and proteins during the cell cycle. By labeling DNA, microtubules, and other components with fluorescent dyes, researchers can track the progression of cells through different phases.

Flow Cytometry

Flow cytometry is a powerful tool for analyzing the DNA content of cells. By staining cells with DNA-binding dyes, researchers can determine the proportion of cells in each phase of the cell cycle. This technique is particularly useful for studying cell cycle distribution in large populations of cells.

Time-Lapse Microscopy

Time-lapse microscopy enables researchers to observe cells over extended periods, capturing the dynamic changes that occur during the cell cycle. This technique provides a detailed cell cycle picture and can reveal abnormalities in cell division.

Cell Cycle and Aging

The cell cycle is also closely linked to the aging process. As cells age, they undergo changes that affect their ability to divide and maintain genomic stability. Understanding these changes can provide insights into the mechanisms of aging and age-related diseases.

Cellular Senescence

Cellular senescence is a state of irreversible cell cycle arrest that occurs in response to various stressors, including DNA damage and oxidative stress. Senescent cells accumulate in tissues with age and contribute to age-related pathologies. Key features of senescent cells include:

Permanent Cell Cycle Arrest: Senescent cells exit the cell cycle and do not divide further.
Secretory Phenotype: Senescent cells secrete a variety of factors that can influence the surrounding tissue microenvironment.
Genomic Instability: Senescent cells often exhibit chromosomal abnormalities and DNA damage.

Telomere Shortening

Telomeres are protective caps at the ends of chromosomes that shorten with each cell division. When telomeres reach a critically short length, cells undergo senescence or apoptosis. Telomere shortening is a key mechanism of cellular aging and is associated with various age-related diseases.

Understanding the role of the cell cycle in aging can help identify potential targets for interventions that promote healthy aging and prevent age-related diseases.

📌 Note: The cell cycle is a complex and dynamic process that involves numerous regulatory mechanisms. Dysregulation of the cell cycle is implicated in various diseases, including cancer and aging-related disorders. Understanding the cell cycle picture and its regulation is essential for developing targeted therapies and interventions.

In summary, the cell cycle is a fundamental process that governs cell growth and division. It is tightly regulated by a complex network of proteins and signaling pathways, and its dysregulation is linked to various diseases. Visualizing the cell cycle picture using advanced techniques provides valuable insights into cellular behavior and potential therapeutic targets. Understanding the cell cycle and its regulation is crucial for advancing our knowledge of cellular biology, disease mechanisms, and therapeutic interventions.
