Building or renovating a home involves numerous critical decisions, one of which is determining the appropriate ceiling joist spacing. This spacing is crucial for the structural integrity and stability of your ceiling. Understanding the factors that influence ceiling joist spacing and how to calculate it can save you time, money, and potential headaches down the line.
Understanding Ceiling Joists
Ceiling joists are horizontal structural members that support the ceiling and distribute the weight of the roof and any additional loads, such as insulation or HVAC systems. They are typically made of wood or engineered lumber and are spaced at regular intervals to provide uniform support.
Importance of Proper Ceiling Joist Spacing
Proper ceiling joist spacing is essential for several reasons:
- Structural Integrity: Ensures the ceiling can support the weight of the roof and any additional loads.
- Prevents Sagging: Correct spacing helps prevent the ceiling from sagging over time.
- Energy Efficiency: Proper spacing allows for adequate insulation, improving energy efficiency.
- Cost-Effective: Optimal spacing can reduce the amount of material needed, saving costs.
Factors Affecting Ceiling Joist Spacing
Several factors influence the appropriate ceiling joist spacing, including:
- Load Requirements: The weight the ceiling needs to support, including the roof, insulation, and any additional loads.
- Joist Size: The dimensions of the joists, which can affect their load-bearing capacity.

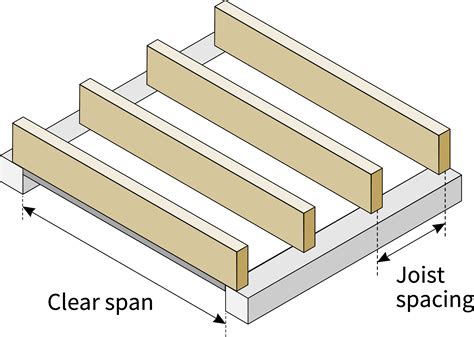

- Span Length: The distance between supports, which can impact the spacing and size of the joists.
- Building Codes: Local building codes and regulations that dictate minimum and maximum spacing requirements.
Standard Ceiling Joist Spacing

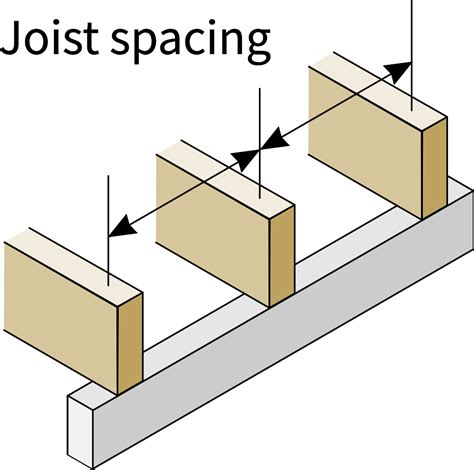

Standard ceiling joist spacing typically ranges from 12 to 24 inches on center. The most common spacing is 16 or 24 inches on center. The choice of spacing depends on the factors mentioned above. Here is a table outlining common ceiling joist spacing and their typical applications:
| Joist Spacing | Typical Application | Notes |
|---|---|---|
| 12 inches on center | Heavy loads, such as in commercial buildings or areas with heavy insulation | Provides maximum support but requires more material |
| 16 inches on center | Residential ceilings with standard loads | Balances support and material cost |
| 24 inches on center | Light loads, such as in attics or areas with minimal insulation | Requires less material but may need additional support |
Calculating Ceiling Joist Spacing
Calculating the appropriate ceiling joist spacing involves several steps. Here’s a simplified guide to help you determine the best spacing for your project:
Step 1: Determine the Load Requirements
Calculate the total load the ceiling will need to support. This includes the weight of the roof, insulation, HVAC systems, and any other loads. Consult local building codes for specific load requirements in your area.
Step 2: Choose the Joist Size
Select the size of the joists based on the load requirements and span length. Common joist sizes include 2x6, 2x8, and 2x10. Larger joists can support heavier loads and longer spans.
Step 3: Determine the Span Length
Measure the distance between the supports (e.g., walls, beams) where the joists will be placed. This is the span length.
Step 4: Consult Span Tables
Use span tables provided by building codes or lumber manufacturers to determine the maximum allowable span for your chosen joist size and load requirements. These tables will also indicate the appropriate ceiling joist spacing.
📝 Note: Always round down to the nearest whole number when determining the maximum allowable span to ensure safety.
Common Mistakes to Avoid
When determining ceiling joist spacing, avoid these common mistakes:
- Ignoring Building Codes: Always consult local building codes to ensure compliance.
- Overlooking Load Requirements: Accurately calculate the total load to avoid structural issues.
- Using Inadequate Joist Size: Choose the appropriate joist size based on load and span requirements.
- Incorrect Spacing: Ensure joists are spaced correctly to provide uniform support.
Additional Considerations
Beyond the basic calculations, consider the following factors to ensure a successful ceiling joist installation:
- Insulation: Proper insulation can affect the load on the ceiling. Ensure your calculations account for the weight of the insulation.
- HVAC Systems: If your ceiling will support HVAC ducts or other systems, include their weight in your load calculations.
- Future Modifications: Consider any future modifications or additions that may increase the load on the ceiling.
By carefully considering these factors and following the steps outlined above, you can determine the optimal ceiling joist spacing for your project. This will ensure a structurally sound ceiling that meets all safety and efficiency requirements.
In summary, understanding and correctly implementing ceiling joist spacing is crucial for the structural integrity and efficiency of your ceiling. By considering load requirements, joist size, span length, and building codes, you can ensure a safe and cost-effective installation. Always consult local building codes and seek professional advice if needed to avoid potential issues and ensure compliance with regulations.
