Understanding the molecular geometry of compounds is fundamental in chemistry, as it helps predict their properties and behaviors. One such compound that has garnered significant interest is carbon tetrachloride (CCl4). This article delves into the CCl4 molecular geometry, its structure, bonding, and the implications of its geometry on its chemical and physical properties.
Introduction to Carbon Tetrachloride
Carbon tetrachloride, often abbreviated as CCl4, is a colorless, non-flammable liquid with a sweet smell. It is widely used in various industrial applications, including as a solvent and in the production of refrigerants. The chemical formula CCl4 indicates that it consists of one carbon atom bonded to four chlorine atoms. This simple structure belies its complex molecular geometry, which is crucial for understanding its properties.
Understanding Molecular Geometry
Molecular geometry refers to the three-dimensional arrangement of atoms in a molecule. This arrangement is determined by the number of electron pairs around the central atom and the repulsion between these pairs. The CCl4 molecular geometry is a classic example of a tetrahedral structure, which is one of the most common geometries in chemistry.
The Tetrahedral Geometry of CCl4
The CCl4 molecular geometry is tetrahedral, meaning the carbon atom is at the center, and the four chlorine atoms are positioned at the vertices of a tetrahedron. This arrangement minimizes the repulsion between the electron pairs around the carbon atom, resulting in a stable and symmetrical structure.
To visualize this, imagine a three-dimensional shape with four triangular faces, where each face is an equilateral triangle. The carbon atom is located at the center, and the chlorine atoms are at the corners of the tetrahedron. The bond angles between the chlorine atoms are approximately 109.5 degrees, which is characteristic of a tetrahedral geometry.
Bonding in CCl4
The bonding in CCl4 is covalent, with each chlorine atom sharing an electron pair with the central carbon atom. The carbon atom has four valence electrons, and each chlorine atom contributes one electron to form a covalent bond. This results in four single bonds between the carbon and chlorine atoms.

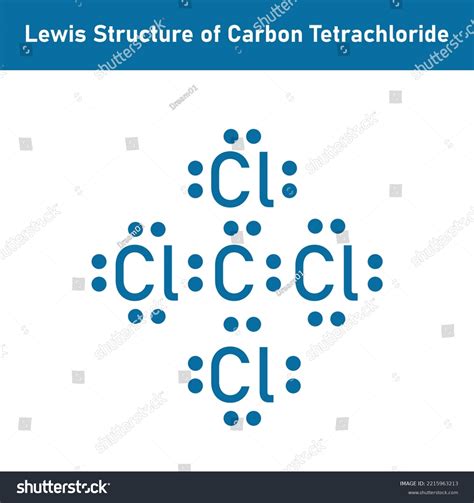

The Lewis structure of CCl4 shows the carbon atom at the center with four single bonds to the chlorine atoms. There are no lone pairs on the carbon atom, which simplifies the geometry to a perfect tetrahedron. The absence of lone pairs means there is no distortion in the bond angles, maintaining the ideal 109.5-degree angles.
Implications of Tetrahedral Geometry
The tetrahedral CCl4 molecular geometry has several implications for its chemical and physical properties. Some of the key points include:

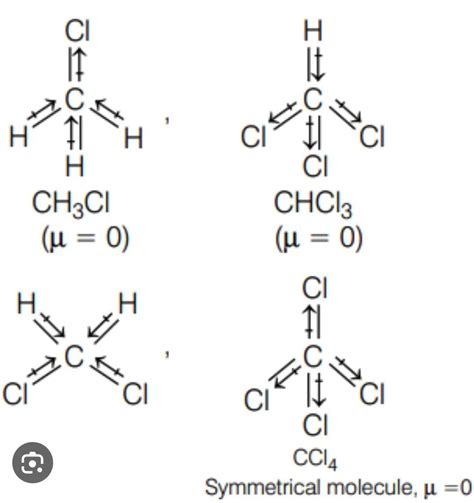

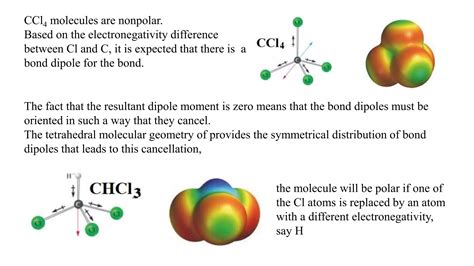

- Symmetry: The tetrahedral structure of CCl4 is highly symmetrical, which contributes to its non-polar nature. The symmetrical distribution of electrons around the carbon atom results in a net dipole moment of zero, making CCl4 a non-polar molecule.
- Stability: The tetrahedral geometry minimizes electron pair repulsion, making the molecule stable. This stability is reflected in its chemical inertness and resistance to reactions under normal conditions.
- Solubility: Due to its non-polar nature, CCl4 is soluble in non-polar solvents but insoluble in polar solvents like water. This property makes it useful as a solvent for non-polar compounds.
- Boiling Point: The tetrahedral geometry and the strong covalent bonds contribute to a relatively high boiling point for a molecule of its size. The boiling point of CCl4 is 76.72°C, which is higher than that of many other small molecules.
Comparing CCl4 with Other Tetrahedral Molecules
To better understand the CCl4 molecular geometry, it is helpful to compare it with other molecules that have a tetrahedral structure. Some common examples include methane (CH4) and silicon tetrachloride (SiCl4).
| Molecule | Central Atom | Peripheral Atoms | Bond Angles |
|---|---|---|---|
| Methane (CH4) | Carbon (C) | Hydrogen (H) | 109.5 degrees |
| Carbon Tetrachloride (CCl4) | Carbon (C) | Chlorine (Cl) | 109.5 degrees |
| Silicon Tetrachloride (SiCl4) | Silicon (Si) | Chlorine (Cl) | 109.5 degrees |
As seen in the table, all three molecules have a tetrahedral geometry with bond angles of approximately 109.5 degrees. However, the properties of these molecules differ due to the nature of the peripheral atoms and the central atom. For example, methane is a gas at room temperature, while CCl4 and SiCl4 are liquids. This difference is due to the stronger intermolecular forces in CCl4 and SiCl4 compared to methane.
💡 Note: The comparison highlights that while the geometry is the same, the properties of the molecules can vary significantly based on the types of atoms involved.
Applications of CCl4
The unique properties of CCl4, stemming from its CCl4 molecular geometry, make it useful in various applications. Some of the key uses include:
- Solvent: CCl4 is an excellent solvent for non-polar compounds. It is used in the production of pharmaceuticals, pesticides, and other chemicals.
- Refrigerants: Historically, CCl4 was used in the production of refrigerants. However, its use has declined due to environmental concerns.
- Fire Extinguishers: CCl4 was once used in fire extinguishers due to its non-flammable nature. However, this use has also been phased out due to environmental and health concerns.
Despite its usefulness, the environmental impact of CCl4 has led to restrictions on its use. It is a known carcinogen and contributes to ozone depletion, making it a hazardous substance.
CCl4 is a potent greenhouse gas and has been phased out in many applications due to its environmental impact. The Montreal Protocol, an international treaty designed to protect the ozone layer, has significantly reduced the production and use of CCl4.
In summary, the CCl4 molecular geometry plays a crucial role in determining its properties and applications. Its tetrahedral structure contributes to its stability, non-polar nature, and solubility in non-polar solvents. However, its environmental impact has led to a decline in its use, highlighting the importance of considering both the benefits and drawbacks of chemical compounds.
Understanding the CCl4 molecular geometry provides insights into the broader field of molecular chemistry. It serves as a foundational example of how molecular structure influences chemical behavior and properties. By studying CCl4, chemists can gain a deeper understanding of bonding, geometry, and the factors that contribute to the stability and reactivity of molecules.
