Cat5e Wiring Guide

Embarking on a networking project can be both exciting and daunting, especially when it comes to understanding the intricacies of Cat5e Wiring Guide. Cat5e (Category 5e) cabling is a staple in modern networking, offering reliable performance for various applications. Whether you're setting up a home network, upgrading an office, or working on a data center, a solid understanding of Cat5e wiring is essential. This guide will walk you through the basics of Cat5e wiring, from the tools you need to the step-by-step process of creating a functional and efficient network.

Understanding Cat5e Cabling

Cat5e cabling is an enhanced version of the original Cat5 cabling, designed to support higher data transfer rates and reduce crosstalk. It is widely used for Ethernet and other network applications, making it a versatile choice for both residential and commercial settings. Cat5e cables consist of four pairs of twisted copper wires, each pair insulated with a different color to distinguish them easily.

Tools and Materials Needed

Before you begin, gather the necessary tools and materials. Here’s a list of what you’ll need:

Cat5e cable
RJ-45 connectors
Crimping tool
Cable tester
Cable stripper
Punch-down tool (if using a patch panel)
Wire cutters
Pliers

Cat5e Wiring Standards

There are two primary wiring standards for Cat5e cables: T568A and T568B. Both standards are widely accepted, but it’s crucial to maintain consistency throughout your network. The T568A standard is more commonly used in the United States, while T568B is often used in Europe. Here’s a breakdown of each standard:

Pin Number	T568A	T568B
1	White/Green	White/Orange
2	Green	Orange
3	White/Orange	White/Green
4	Blue	Blue
5	White/Blue	White/Blue
6	Orange	Green
7	White/Brown	White/Brown
8	Brown	Brown

Choose one standard and stick with it to avoid connectivity issues.

Step-by-Step Cat5e Wiring Guide

Now that you have the necessary tools and understand the wiring standards, let’s dive into the step-by-step process of wiring a Cat5e cable.

Step 1: Prepare the Cable

Start by measuring the length of cable you need and cut it to size using wire cutters. Ensure the cut is clean and straight to avoid any fraying.

Step 2: Strip the Outer Jacket

Use a cable stripper to remove about 1-2 inches of the outer jacket from both ends of the cable. Be careful not to cut into the inner wires.

Step 3: Untwist the Pairs

Gently untwist the pairs of wires, ensuring they are straight and not tangled. This step is crucial for proper termination.

Step 4: Arrange the Wires

Arrange the wires according to the T568A or T568B standard you have chosen. Ensure the wires are in the correct order and aligned straight.

Step 5: Trim the Wires

Trim the wires so that they are all the same length and flush with the end of the cable jacket. This ensures a clean and proper fit into the RJ-45 connector.

Step 6: Insert into RJ-45 Connector

Insert the wires into the RJ-45 connector, ensuring each wire goes into the correct slot. The wires should fit snugly, and the connector should be flush with the end of the cable.

Step 7: Crimp the Connector

Use a crimping tool to secure the RJ-45 connector onto the cable. Apply firm and even pressure to ensure a solid connection.

Step 8: Test the Cable

Use a cable tester to verify that the cable is wired correctly and that all connections are secure. This step is essential to ensure your network functions properly.

🔧 Note: Always double-check your wiring before crimping the connector. Once crimped, it’s difficult to make adjustments.

Common Mistakes to Avoid

Even with a detailed Cat5e Wiring Guide, mistakes can happen. Here are some common pitfalls to avoid:

Incorrect Wire Order: Ensure the wires are in the correct order according to the T568A or T568B standard.
Uneven Wire Lengths: Trim the wires so they are all the same length to ensure a proper fit in the connector.
Poor Crimping: Use a high-quality crimping tool and apply even pressure to secure the connector.
Not Testing the Cable: Always test the cable with a cable tester to verify the connections.

Advanced Cat5e Wiring Techniques

For those looking to take their networking skills to the next level, here are some advanced techniques to consider:

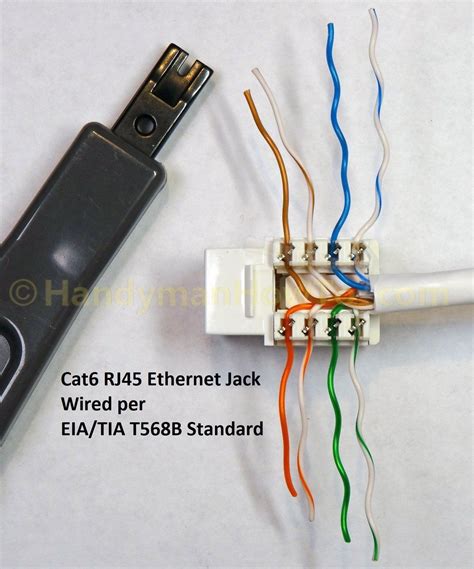

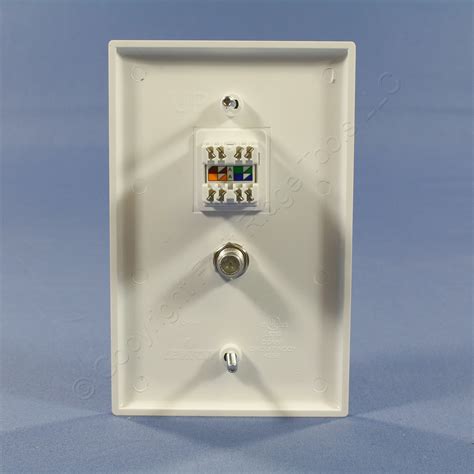

Using a Patch Panel

A patch panel allows for organized and scalable network management. Here’s how to use one:

Prepare the Cable: Strip and untwist the wires as described earlier.
Insert into Patch Panel: Insert the wires into the patch panel ports, following the T568A or T568B standard.
Punch Down: Use a punch-down tool to secure the wires into the patch panel.
Test the Connections: Verify the connections with a cable tester.

Creating a Cross-Over Cable

A cross-over cable is used to connect two devices directly without a switch or hub. Here’s how to create one:

Wire One End: Wire one end of the cable using the T568A standard.
Wire the Other End: Wire the other end using the T568B standard.
Test the Cable: Use a cable tester to ensure the connections are correct.

🔧 Note: Cross-over cables are less common with modern networking equipment that supports Auto MDI/MDI-X.

Troubleshooting Cat5e Wiring Issues

Even with careful wiring, issues can arise. Here are some common problems and their solutions:

No Connectivity

If there is no connectivity, check the following:

Cable Tester: Use a cable tester to verify the wiring.
Connector Issues: Ensure the RJ-45 connectors are properly crimped.
Device Compatibility: Verify that the devices are compatible and configured correctly.

Intermittent Connectivity

If the connection is intermittent, consider these steps:

Check for Damage: Inspect the cable for any physical damage.
Re-crimp Connectors: Sometimes re-crimping the connectors can resolve the issue.
Test with Another Cable: Use a different cable to rule out cable-specific issues.

Slow Data Transfer

If data transfer is slow, try the following:

Check Cable Length: Ensure the cable length is within the recommended limits (up to 100 meters for Cat5e).
Reduce Interference: Keep the cable away from sources of electromagnetic interference.
Upgrade Equipment: Consider upgrading to higher-category cables or network equipment.

By following this comprehensive Cat5e Wiring Guide, you should be well-equipped to handle various networking projects. Whether you’re setting up a small home network or a large-scale enterprise system, understanding Cat5e wiring is a valuable skill that will serve you well.

Mastering Cat5e wiring involves attention to detail, the right tools, and a solid understanding of the wiring standards. By following the steps outlined in this guide and avoiding common mistakes, you can create reliable and efficient network connections. Whether you’re a beginner or an experienced network professional, this guide provides the knowledge and techniques needed to succeed in your networking endeavors.
