Understanding the intricacies of networking can be daunting, especially when it comes to the physical components that make up a network. One of the most fundamental elements is the Cat5 plug, which is essential for connecting devices to a network. A Cat5 plug diagram can be incredibly helpful in visualizing how these components fit together and function. This guide will walk you through the basics of Cat5 plugs, their importance, and how to use a Cat5 plug diagram effectively.
What is a Cat5 Plug?
A Cat5 plug, also known as an RJ-45 connector, is a standardized networking connector used to connect computers, routers, and other network devices to a network. The term “Cat5” refers to the category of twisted pair cabling, which is designed to support data transmission speeds up to 100 Mbps. Cat5 plugs are widely used in both home and office networks due to their reliability and ease of use.
Understanding the Cat5 Plug Diagram

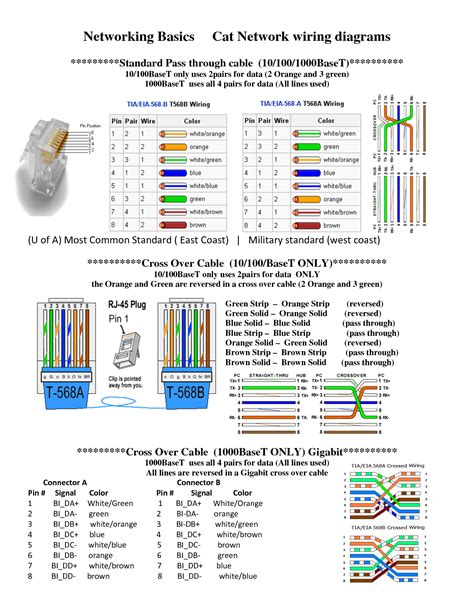

A Cat5 plug diagram is a visual representation of the wiring configuration within a Cat5 plug. It shows how the eight wires of a Cat5 cable are connected to the pins of the RJ-45 connector. There are two common wiring standards for Cat5 cables: T568A and T568B. Understanding these standards is crucial for ensuring proper network functionality.
T568A and T568B Wiring Standards
The T568A and T568B standards define the specific order in which the wires are connected to the pins of the RJ-45 connector. Both standards are widely accepted, but it is important to use the same standard on both ends of the cable to ensure proper connectivity.
Here is a breakdown of the wiring for both standards:
| Pin Number | T568A | T568B |
|---|---|---|
| 1 | White/Green | White/Orange |
| 2 | Green | Orange |
| 3 | White/Orange | White/Green |
| 4 | Blue | Blue |
| 5 | White/Blue | White/Blue |
| 6 | Orange | Green |
| 7 | White/Brown | White/Brown |
| 8 | Brown | Brown |
It is essential to follow the Cat5 plug diagram closely when wiring your cables to ensure that the connections are correct. Incorrect wiring can lead to network issues, including slow data transfer rates and connectivity problems.
🔍 Note: Always double-check your wiring against the Cat5 plug diagram to avoid common mistakes such as reversing the wires or using the wrong standard.
Steps to Wire a Cat5 Plug
Wiring a Cat5 plug involves several steps, but with the right tools and a clear Cat5 plug diagram, the process can be straightforward. Here is a step-by-step guide:
- Gather your materials: Cat5 cable, RJ-45 connector, cable cutter, cable stripper, and a crimping tool.
- Cut the Cat5 cable to the desired length using the cable cutter.
- Strip about 1-2 inches of the outer jacket from the cable using the cable stripper. Be careful not to cut the inner wires.
- Untwist the pairs of wires and arrange them according to the T568A or T568B standard as shown in the Cat5 plug diagram.
- Insert the wires into the RJ-45 connector, ensuring that the wires reach the end of the connector and are flush with the top.
- Use the crimping tool to secure the connector to the cable. Apply firm pressure to ensure a tight connection.
- Test the cable using a cable tester to ensure that all connections are correct and that the cable is functioning properly.
🛠️ Note: Ensure that the wires are cut straight and that there are no frayed or damaged wires before inserting them into the connector.
Common Mistakes to Avoid
When wiring a Cat5 plug, there are several common mistakes that can be easily avoided with careful attention to detail. Here are some pitfalls to watch out for:
- Incorrect Wiring Standard: Using different wiring standards on each end of the cable can cause connectivity issues. Always use the same standard (T568A or T568B) on both ends.
- Poor Crimping: Insufficient crimping can result in a loose connection, leading to intermittent connectivity problems. Use a high-quality crimping tool and apply firm pressure.
- Damaged Wires: Frayed or damaged wires can cause poor signal quality. Ensure that the wires are intact and properly trimmed before inserting them into the connector.
- Incorrect Wire Order: Double-check the wire order against the Cat5 plug diagram to ensure that the wires are in the correct sequence.
By avoiding these common mistakes, you can ensure that your Cat5 cables are wired correctly and function reliably.
Testing Your Cat5 Cable
After wiring your Cat5 cable, it is crucial to test it to ensure that all connections are correct and that the cable is functioning properly. A cable tester is a useful tool for this purpose. Here are the steps to test your Cat5 cable:
- Connect one end of the cable to the cable tester.
- Connect the other end of the cable to the corresponding port on the tester.
- Follow the instructions on the tester to check for continuity and proper wiring.
- If the tester indicates any issues, recheck the wiring against the Cat5 plug diagram and make any necessary adjustments.
🔍 Note: Regularly testing your Cat5 cables can help identify potential issues before they cause network problems.
Applications of Cat5 Plugs
Cat5 plugs are used in a variety of networking applications, including:
- Home Networks: Connecting computers, routers, and other devices in a home network.
- Office Networks: Setting up local area networks (LANs) in offices and businesses.
- Data Centers: Connecting servers and other network equipment in data centers.
- Telecommunications: Used in telephone systems and other communication networks.
Cat5 plugs are versatile and can be used in both wired and wireless networks, making them an essential component in modern networking.
Future of Cat5 Plugs
While Cat5 plugs have been a staple in networking for many years, advancements in technology have led to the development of higher-category cables, such as Cat6, Cat6a, and Cat7. These newer categories offer improved performance, including higher data transfer rates and better resistance to interference. However, Cat5 plugs and cables are still widely used due to their reliability and cost-effectiveness.
As networks continue to evolve, it is essential to stay informed about the latest developments in cabling and connectivity. Understanding the basics of Cat5 plugs and their wiring standards, as well as how to use a Cat5 plug diagram, can help you build and maintain reliable networks.
In summary, Cat5 plugs are a fundamental component of modern networking, and understanding their wiring and functionality is crucial for anyone involved in network setup and maintenance. By following the guidelines and tips outlined in this guide, you can ensure that your Cat5 cables are wired correctly and function reliably, providing a solid foundation for your network.
