Cat 5 Tester

In the world of networking and telecommunications, ensuring the integrity and performance of your cabling infrastructure is paramount. One essential tool for this task is a Cat 5 Tester. This device is specifically designed to test and verify the performance of Category 5 (Cat 5) cables, which are commonly used in Ethernet networks. Whether you are a professional network technician or a DIY enthusiast, understanding how to use a Cat 5 Tester can save you time and prevent potential issues in your network setup.

Table of Contents

Understanding Cat 5 Cables

Before diving into the specifics of a Cat 5 Tester, it’s important to understand what Cat 5 cables are and their significance. Cat 5 cables are twisted pair cables used for carrying signals. They are categorized into different types, including Cat 5, Cat 5e, Cat 6, and Cat 7, each with varying levels of performance and shielding. Cat 5 cables are capable of supporting data transfer rates up to 100 Mbps and are commonly used in ¹⁰⁄₁₀₀ Ethernet networks.

What is a Cat 5 Tester?

A Cat 5 Tester is a diagnostic tool used to verify the integrity and performance of Cat 5 cables. These testers come in various forms, from basic continuity testers to advanced cable analyzers. The primary functions of a Cat 5 Tester include:

Checking for continuity in each wire pair.
Identifying miswired or crossed pairs.
Measuring cable length.
Detecting shorts, opens, and split pairs.
Verifying the cable’s ability to support specific data rates.

Types of Cat 5 Testers

There are several types of Cat 5 Testers available, each suited for different levels of testing and diagnostic needs. The most common types include:

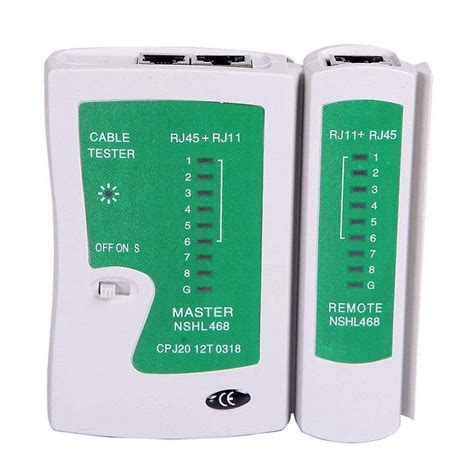

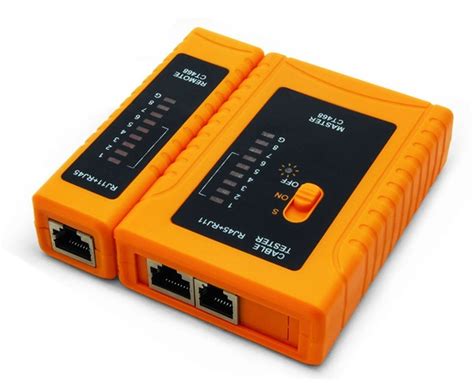

Basic Continuity Testers: These are simple devices that check for continuity in each wire pair. They are useful for basic troubleshooting but lack advanced diagnostic features.

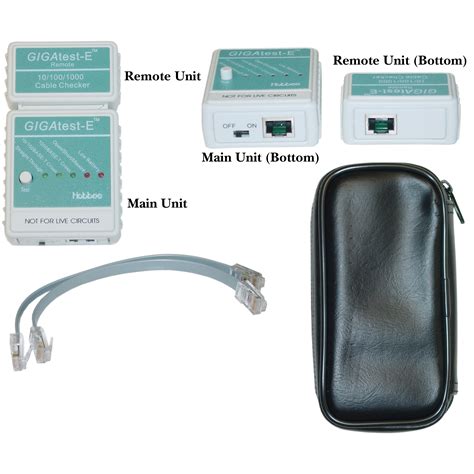

Cable Verifiers: These testers provide more detailed information, including wire mapping, length measurement, and basic performance metrics.

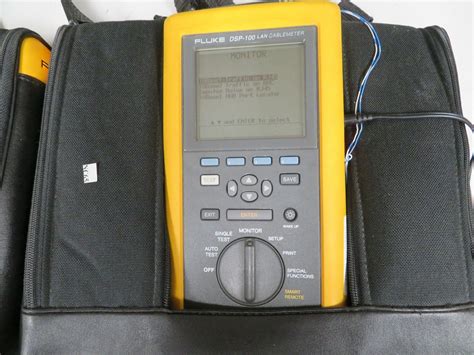

Cable Analyzers: These are advanced tools that offer comprehensive testing, including signal quality, attenuation, and crosstalk measurements. They are ideal for professional network installations.

How to Use a Cat 5 Tester

Using a Cat 5 Tester involves several steps, depending on the type of tester you have. Here is a general guide to using a basic cable verifier:

Prepare the Cable: Ensure the cable you are testing is properly terminated with RJ-45 connectors on both ends.
Connect the Tester: Plug one end of the cable into the tester’s port and the other end into the remote unit or the tester’s other port, depending on the model.
Power On the Tester: Turn on the tester and select the appropriate test mode. Most testers have a simple interface with buttons or a menu system.
Run the Test: Initiate the test and wait for the results. The tester will display information such as wire mapping, continuity, and any faults detected.
Interpret the Results: Review the test results to identify any issues. Common problems include miswired pairs, shorts, and opens.

🔍 Note: Always refer to the manufacturer’s instructions for specific details on using your Cat 5 Tester, as features and interfaces can vary between models.

Common Issues Detected by a Cat 5 Tester

A Cat 5 Tester can identify a variety of issues that may affect the performance of your network cables. Some of the most common problems include:

Miswired Pairs: This occurs when the wires are not connected in the correct order at the RJ-45 connectors.
Shorts: A short circuit happens when two or more wires are touching, causing a direct electrical connection.
Opens: An open circuit occurs when a wire is broken or not properly connected, resulting in a loss of continuity.
Split Pairs: This happens when the twisted pairs are not maintained throughout the cable, leading to signal degradation.
Crosstalk: Crosstalk is the interference caused by one wire pair affecting another, which can degrade signal quality.

Advanced Features of Cat 5 Testers

For more advanced users, some Cat 5 Testers offer additional features that provide deeper insights into cable performance. These features include:

Length Measurement: This feature allows you to measure the exact length of the cable, which is useful for ensuring compliance with network standards.
Signal Quality Testing: Advanced testers can measure signal attenuation, crosstalk, and return loss, providing a comprehensive assessment of cable performance.

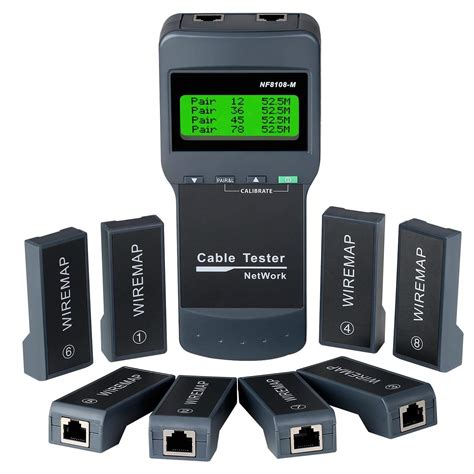

Automatic Wire Mapping: Some testers can automatically map the wires and identify any miswired pairs, making the testing process faster and more accurate.
Data Rate Verification: These testers can verify if the cable can support specific data rates, such as 100 Mbps or 1 Gbps, ensuring compatibility with your network equipment.

Choosing the Right Cat 5 Tester

Selecting the right Cat 5 Tester depends on your specific needs and the complexity of your network. Here are some factors to consider:

Testing Requirements: Determine the level of testing you need. Basic continuity testers are sufficient for simple troubleshooting, while advanced cable analyzers are necessary for professional installations.
Ease of Use: Consider the user interface and ease of use. Some testers have simple button interfaces, while others have more complex menu systems.
Portability: If you need to test cables in various locations, a portable tester with a compact design is ideal.
Budget: Cat 5 Testers range from affordable basic models to high-end professional tools. Set a budget and choose a tester that offers the features you need within your price range.

Maintaining Your Cat 5 Cables

Regular maintenance of your Cat 5 cables is essential for ensuring optimal performance. Here are some tips for maintaining your cables:

Proper Storage: Store cables in a cool, dry place away from direct sunlight and moisture.
Avoid Sharp Bends: Do not bend cables sharply, as this can damage the internal wires and affect performance.
Regular Testing: Use a Cat 5 Tester to regularly check the integrity of your cables, especially in high-traffic areas.
Replace Damaged Cables: If a cable is damaged or shows signs of wear, replace it promptly to avoid network issues.

🛠️ Note: Regular maintenance and testing can extend the lifespan of your Cat 5 cables and prevent costly network downtime.

Troubleshooting Common Issues

Even with regular maintenance, issues can still arise with your Cat 5 cables. Here are some common problems and how to troubleshoot them:

Intermittent Connectivity: If you experience intermittent connectivity, check for loose connections or damaged cables. Use a Cat 5 Tester to identify any faults.
Slow Network Speeds: Slow network speeds can be caused by damaged cables or poor cable quality. Test the cables with a Cat 5 Tester to ensure they meet the required performance standards.
High Error Rates: High error rates can indicate issues with crosstalk or signal attenuation. Use an advanced Cat 5 Tester to measure signal quality and identify the source of the problem.

Conclusion

In summary, a Cat 5 Tester is an invaluable tool for ensuring the integrity and performance of your Cat 5 cables. Whether you are a professional network technician or a DIY enthusiast, understanding how to use a Cat 5 Tester can help you maintain a reliable and efficient network. By regularly testing and maintaining your cables, you can prevent potential issues and ensure optimal performance. Investing in a quality Cat 5 Tester is a wise decision that will pay off in the long run, providing peace of mind and a stable network infrastructure.
