Caster Vs Camber

Understanding the nuances of vehicle suspension is crucial for anyone looking to optimize their driving experience. Two key terms that often come up in this context are caster and camber. These terms refer to specific angles of the suspension geometry that significantly impact handling, stability, and tire wear. This post will delve into the differences between caster and camber, their effects on vehicle performance, and how to adjust them for optimal results.

Table of Contents

Understanding Caster

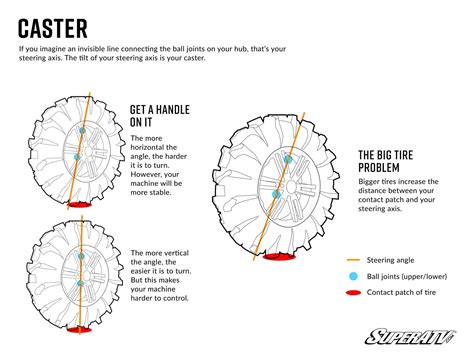

Caster is the angle of the steering pivot, as viewed from the side of the vehicle. It is measured in degrees and can be positive or negative. Positive caster means the steering pivot is tilted towards the rear of the vehicle, while negative caster means it is tilted towards the front.

Positive caster is generally preferred for most vehicles as it enhances stability and straight-line tracking. When the steering wheel is turned, the caster angle causes the front wheels to return to the center position, providing a self-centering effect. This is particularly beneficial at high speeds, where it helps maintain directional stability.

Negative caster, on the other hand, can make the vehicle feel more responsive but may also cause instability, especially at higher speeds. It is less common and typically used in specific racing applications where precise control is required.

Understanding Camber

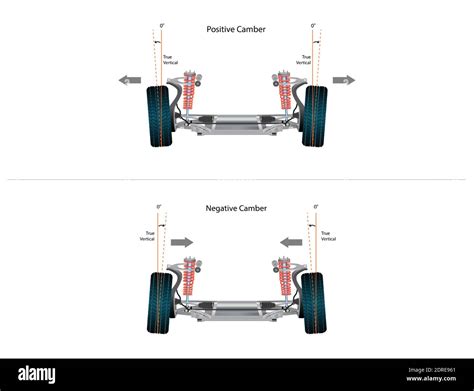

Camber is the angle of the wheels relative to the vertical axis of the vehicle, as viewed from the front. It is also measured in degrees and can be positive or negative. Positive camber means the top of the wheel is tilted outward, while negative camber means the top of the wheel is tilted inward.

Negative camber is often used in performance vehicles to improve cornering grip. By tilting the wheels inward, more of the tire's contact patch is in contact with the road during cornering, which can enhance traction and handling. However, excessive negative camber can lead to uneven tire wear and reduced straight-line stability.

Positive camber, while less common, can be beneficial in certain off-road applications where the vehicle needs to maintain stability on uneven surfaces. It can also help reduce tire wear on the outer edges, but it generally compromises cornering performance.

Caster Vs Camber: Key Differences

While both caster and camber are critical aspects of suspension geometry, they serve different purposes and have distinct effects on vehicle performance. Here are the key differences:

Purpose: Caster primarily affects steering stability and self-centering, while camber influences tire contact patch and cornering grip.
Measurement: Caster is measured from the side of the vehicle, while camber is measured from the front.
Effects: Positive caster enhances stability and straight-line tracking, while negative camber improves cornering grip.
Adjustment: Caster is typically adjusted by changing the position of the steering pivot, while camber is adjusted by altering the angle of the wheel relative to the vertical axis.

Adjusting Caster and Camber

Adjusting caster and camber requires specialized tools and knowledge. Here are the general steps involved in adjusting these angles:

Adjusting Caster

To adjust caster, you will need a caster/camber gauge and a set of wrenches or sockets. Follow these steps:

Park the vehicle on a level surface and engage the parking brake.
Use a jack to lift the front of the vehicle and secure it with jack stands.
Remove the wheel and tire assembly.
Locate the caster adjustment bolts or eccentric bushings on the control arm.
Use the caster/camber gauge to measure the current caster angle.
Adjust the caster by turning the adjustment bolts or eccentric bushings until the desired angle is achieved.
Reinstall the wheel and tire assembly and lower the vehicle.
Test drive the vehicle to ensure the adjustments have the desired effect.

🛠️ Note: Always refer to the vehicle's service manual for specific instructions and torque specifications.

Adjusting Camber

To adjust camber, you will need a camber gauge and a set of wrenches or sockets. Follow these steps:

Park the vehicle on a level surface and engage the parking brake.
Use a jack to lift the front of the vehicle and secure it with jack stands.
Remove the wheel and tire assembly.
Locate the camber adjustment bolts or eccentric bushings on the control arm.
Use the camber gauge to measure the current camber angle.
Adjust the camber by turning the adjustment bolts or eccentric bushings until the desired angle is achieved.
Reinstall the wheel and tire assembly and lower the vehicle.
Test drive the vehicle to ensure the adjustments have the desired effect.

🛠️ Note: Be cautious not to over-adjust the camber, as excessive negative camber can lead to uneven tire wear and reduced stability.

Effects of Incorrect Caster and Camber Settings

Incorrect caster and camber settings can have significant negative effects on vehicle performance and safety. Some common issues include:

Uneven Tire Wear: Incorrect camber settings can cause the tires to wear unevenly, leading to premature tire replacement and reduced fuel efficiency.
Reduced Stability: Incorrect caster settings can affect the vehicle's stability, especially at high speeds, making it more prone to drifting or wandering.
Poor Handling: Both caster and camber settings can impact handling, making the vehicle feel sluggish or unresponsive during cornering.
Increased Wear on Suspension Components: Incorrect settings can put additional stress on suspension components, leading to increased wear and potential failure.

Optimizing Caster and Camber for Performance

For performance-oriented drivers, optimizing caster and camber settings can significantly enhance the vehicle's handling and stability. Here are some tips for achieving the best results:

Start with Manufacturer Specifications: Begin with the manufacturer's recommended settings and make adjustments based on your specific needs and driving conditions.
Use High-Quality Tools: Invest in high-quality caster/camber gauges and adjustment tools to ensure accurate measurements and adjustments.
Test and Adjust: Make small adjustments and test drive the vehicle to evaluate the effects. Repeat the process until you achieve the desired performance.
Consider Professional Help: If you are unsure about making adjustments yourself, consult a professional mechanic or performance shop for assistance.

Here is a table summarizing the effects of different caster and camber settings:

Setting	Caster	Camber
Positive	Enhances stability and straight-line tracking	Reduces cornering grip, improves straight-line stability
Negative	Increases responsiveness, may cause instability	Improves cornering grip, may cause uneven tire wear

By understanding the differences between caster and camber and how to adjust them, you can optimize your vehicle's performance and ensure a safer, more enjoyable driving experience.

In summary, caster and camber are essential aspects of suspension geometry that significantly impact vehicle handling, stability, and tire wear. Positive caster enhances stability and straight-line tracking, while negative camber improves cornering grip. Adjusting these angles requires specialized tools and knowledge, but the benefits of optimized settings can be substantial. Always refer to the vehicle’s service manual for specific instructions and consider professional help if needed. By carefully adjusting caster and camber, you can achieve the best possible performance from your vehicle.
