Cam Sensor Position

Understanding the intricacies of the Cam Sensor Position is crucial for anyone involved in automotive diagnostics and repair. The cam sensor, also known as the camshaft position sensor, plays a vital role in the engine's performance by monitoring the position and rotational speed of the camshaft. This information is essential for the engine control unit (ECU) to manage fuel injection, ignition timing, and other critical functions. In this post, we will delve into the importance of the cam sensor position, how it works, common issues, and troubleshooting tips.

Understanding the Cam Sensor Position

The Cam Sensor Position is a critical component in modern engines. It is typically located near the camshaft and is responsible for sending signals to the ECU about the camshaft’s position. This data is used to synchronize the engine’s timing, ensuring that the valves open and close at the correct moments relative to the piston’s movement. The cam sensor works in conjunction with the crankshaft position sensor to provide a comprehensive view of the engine’s operation.

How the Cam Sensor Works

The cam sensor operates using one of two primary technologies: Hall-effect or variable reluctance. Here’s a brief overview of each:

• Hall-Effect Sensors: These sensors use a magnetic field to detect the position of the camshaft. When the camshaft rotates, a toothed wheel or a reluctor ring passes by the sensor, generating a voltage signal that the ECU interprets.
• Variable Reluctance Sensors: These sensors work by detecting changes in magnetic flux as the camshaft rotates. The sensor generates an AC voltage signal that the ECU uses to determine the camshaft’s position and speed.

Regardless of the technology used, the cam sensor’s primary function is to provide accurate and timely data to the ECU, enabling it to make precise adjustments to the engine’s operation.

Common Issues with the Cam Sensor Position

Several issues can arise with the Cam Sensor Position, leading to various engine problems. Some of the most common issues include:

• Wiring Problems: Damaged or corroded wiring can disrupt the signal sent from the cam sensor to the ECU, leading to inaccurate readings and potential engine misfires.
• Sensor Failure: Over time, the cam sensor can fail due to wear and tear, contamination, or electrical issues. A faulty sensor will send incorrect data to the ECU, causing engine performance issues.
• Timing Chain or Belt Issues: Problems with the timing chain or belt can affect the camshaft’s position, leading to inaccurate readings from the cam sensor. This can result in engine misfires, reduced power, and other performance issues.
• ECU Malfunctions: In some cases, the issue may not be with the cam sensor itself but with the ECU. A malfunctioning ECU may not process the sensor’s data correctly, leading to engine problems.

Troubleshooting Cam Sensor Position Issues

If you suspect that there is an issue with the Cam Sensor Position, it’s essential to follow a systematic troubleshooting process. Here are some steps to help you diagnose and resolve the problem:

• Check for Error Codes: Use an OBD-II scanner to check for any error codes related to the cam sensor. Common codes include P0340 (Camshaft Position Sensor ‘A’ Circuit Malfunction) and P0341 (Camshaft Position Sensor ‘A’ Circuit Range/Performance).
• Inspect the Wiring: Visually inspect the wiring harness connected to the cam sensor for any signs of damage, corrosion, or loose connections. Repair or replace any damaged wiring as needed.
• Test the Sensor: Use a multimeter to test the cam sensor’s output voltage. Compare the readings to the manufacturer’s specifications to determine if the sensor is functioning correctly.
• Check the Timing Chain or Belt: Inspect the timing chain or belt for any signs of wear, damage, or misalignment. Replace the timing chain or belt if necessary.
• Inspect the ECU: If the cam sensor and wiring appear to be in good condition, the issue may be with the ECU. Consult a professional mechanic to diagnose and repair any ECU-related problems.

🛠️ Note: Always follow safety precautions when working on your vehicle, including disconnecting the battery and allowing the engine to cool down before performing any repairs.

Replacing the Cam Sensor

If you’ve determined that the cam sensor is faulty and needs to be replaced, follow these steps:

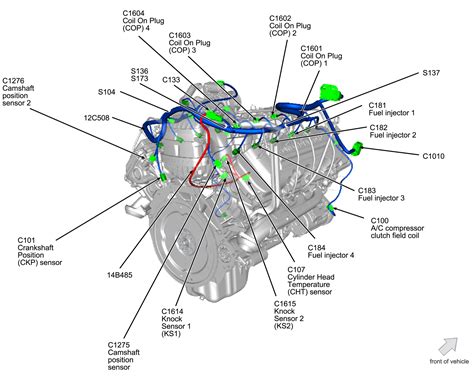

• Locate the Cam Sensor: The cam sensor is typically located near the camshaft, often on the cylinder head or engine block. Consult your vehicle’s repair manual for the exact location.
• Disconnect the Battery: Before beginning any work, disconnect the negative terminal of the battery to prevent any electrical shorts.
• Remove the Old Sensor: Disconnect the wiring harness from the cam sensor and remove any mounting bolts or screws. Carefully remove the old sensor from its housing.
• Install the New Sensor: Insert the new cam sensor into the housing, ensuring it is properly aligned. Secure it with the mounting bolts or screws and reconnect the wiring harness.
• Reconnect the Battery: Reconnect the negative terminal of the battery and start the engine to ensure the new sensor is functioning correctly.

🛠️ Note: Always use a new O-ring or gasket when installing a new cam sensor to ensure a proper seal and prevent oil leaks.

Maintaining the Cam Sensor Position

Regular maintenance can help prevent issues with the Cam Sensor Position and ensure optimal engine performance. Here are some tips for maintaining your cam sensor:

• Regular Inspections: Periodically inspect the cam sensor and its wiring for any signs of damage, corrosion, or wear. Address any issues promptly to prevent further damage.
• Keep it Clean: Ensure that the cam sensor and its surrounding area are kept clean and free of debris. Contamination can interfere with the sensor’s operation and lead to inaccurate readings.
• Follow the Maintenance Schedule: Adhere to your vehicle’s recommended maintenance schedule, including timing chain or belt replacements and other related services.

By following these maintenance tips, you can help extend the life of your cam sensor and ensure that your engine continues to run smoothly.

Diagnosing Cam Sensor Position Issues

Diagnosing issues related to the Cam Sensor Position can be challenging, but with the right tools and knowledge, you can identify and resolve most problems. Here are some common symptoms and their potential causes:

If you experience any of these symptoms, it's essential to diagnose the issue promptly to prevent further damage to your engine. Using an OBD-II scanner and following the troubleshooting steps outlined earlier can help you identify the root cause of the problem.

In some cases, the issue may not be with the cam sensor itself but with other related components, such as the crankshaft position sensor or the ECU. It's crucial to perform a thorough diagnosis to ensure that you address the correct problem.

By understanding the importance of the Cam Sensor Position and following the troubleshooting and maintenance tips outlined in this post, you can ensure that your engine continues to run smoothly and efficiently. Regular inspections, prompt repairs, and adherence to your vehicle's maintenance schedule can help prevent issues and extend the life of your cam sensor.

In summary, the Cam Sensor Position is a critical component in modern engines, responsible for monitoring the camshaft’s position and providing essential data to the ECU. Common issues with the cam sensor include wiring problems, sensor failure, timing chain or belt issues, and ECU malfunctions. By following a systematic troubleshooting process and performing regular maintenance, you can diagnose and resolve cam sensor position issues, ensuring optimal engine performance.
