Cable Modem Termination System

In the ever-evolving landscape of telecommunications, the Cable Modem Termination System (CMTS) plays a pivotal role in delivering high-speed internet to millions of users worldwide. This critical component of cable internet infrastructure manages the data flow between the internet service provider (ISP) and the end-users, ensuring reliable and efficient connectivity. Understanding the intricacies of a CMTS is essential for anyone involved in network management, telecommunications, or simply curious about how the internet reaches their homes.

What is a Cable Modem Termination System?

A Cable Modem Termination System (CMTS) is a piece of equipment typically located at a cable company’s headend or hubsite. It serves as the central hub that connects the cable network to the internet. The CMTS aggregates data from multiple cable modems in a neighborhood, processes it, and routes it to the internet backbone. Conversely, it also distributes data from the internet to the individual cable modems, enabling users to access online content.

How Does a CMTS Work?

The operation of a CMTS can be broken down into several key steps:

• Data Aggregation: The CMTS collects data from numerous cable modems connected to it. This data includes web browsing requests, streaming content, and other online activities.
• Data Processing: The CMTS processes the aggregated data, ensuring it is correctly formatted and routed to the appropriate destinations on the internet.
• Data Distribution: The CMTS sends data from the internet back to the individual cable modems, allowing users to receive the content they requested.
• Quality of Service (QoS): The CMTS manages the quality of service by prioritizing different types of traffic. For example, it may give higher priority to real-time applications like video conferencing over less time-sensitive activities like email.

Key Components of a CMTS

A CMTS consists of several essential components that work together to ensure smooth operation:

• Modem Interface: This component manages the communication between the CMTS and the cable modems in the network.
• Routing Engine: The routing engine handles the routing of data packets to and from the internet.
• Quality of Service (QoS) Engine: This engine ensures that different types of traffic are prioritized appropriately to maintain performance.
• Security Features: The CMTS includes various security measures to protect the network from unauthorized access and cyber threats.

Types of CMTS

CMTS devices come in various types, each designed to meet different network requirements:

• Integrated CMTS: These devices combine the CMTS functionality with other network components, such as switches and routers, into a single unit. They are often used in smaller networks or for specific applications.
• Modular CMTS: Modular CMTS devices allow for the addition of extra modules to expand functionality and capacity. This makes them suitable for growing networks that may require additional features over time.

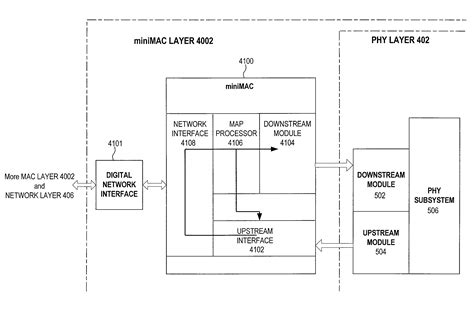

• Distributed CMTS: In a distributed architecture, the CMTS functionality is spread across multiple devices located throughout the network. This approach can improve performance and reliability by reducing the load on a single CMTS.

Benefits of Using a CMTS

The use of a CMTS offers several advantages for both ISPs and end-users:

• High-Speed Connectivity: CMTS devices enable high-speed internet access, making them ideal for applications that require fast data transfer, such as streaming video and online gaming.
• Scalability: CMTS devices can be scaled to support a large number of users, making them suitable for both small and large networks.
• Reliability: CMTS devices are designed to be highly reliable, with features such as redundancy and failover mechanisms to ensure continuous service.
• Cost-Effective: By aggregating data from multiple users, CMTS devices can reduce the overall cost of providing internet service.

Challenges and Considerations

While CMTS devices offer numerous benefits, there are also challenges and considerations to keep in mind:

• Complexity: The setup and management of a CMTS can be complex, requiring specialized knowledge and skills.
• Maintenance: Regular maintenance is necessary to ensure the CMTS operates efficiently and to address any issues that may arise.
• Security: CMTS devices must be secured against cyber threats to protect the network and user data.
• Capacity Planning: ISPs must carefully plan the capacity of their CMTS devices to ensure they can handle the expected load and future growth.

Future Trends in CMTS Technology

The technology behind CMTS devices is continually evolving to meet the demands of modern internet usage. Some of the key trends include:

• Increased Bandwidth: Future CMTS devices will support even higher bandwidths, enabling faster internet speeds and better performance for bandwidth-intensive applications.
• Advanced QoS: Enhanced QoS features will allow for more precise control over network traffic, improving the user experience for real-time applications.
• Integration with 5G: As 5G networks become more prevalent, CMTS devices will need to integrate with these new technologies to provide seamless connectivity.
• AI and Machine Learning: The use of AI and machine learning in CMTS devices will enable more intelligent network management, predicting and addressing issues before they impact users.

🔍 Note: The integration of AI and machine learning in CMTS devices is still in its early stages, but it holds great promise for improving network performance and reliability.

CMTS Deployment Scenarios

CMTS devices can be deployed in various scenarios to meet different network requirements. Some common deployment scenarios include:

• Residential Networks: CMTS devices are widely used in residential networks to provide high-speed internet access to homes.
• Business Networks: Businesses often use CMTS devices to support their internet connectivity needs, ensuring reliable and fast access to online resources.
• Public Wi-Fi Networks: CMTS devices can be used to support public Wi-Fi networks, providing internet access in public spaces such as parks, airports, and shopping malls.
• Enterprise Networks: Large enterprises may use CMTS devices to manage their internal network traffic, ensuring efficient data flow and high performance.

CMTS Performance Metrics

To ensure optimal performance, several key metrics are used to monitor and evaluate the operation of a CMTS:

• Throughput: The amount of data successfully transmitted over the network within a specific time frame.
• Latency: The time it takes for data to travel from the source to the destination and back.
• Packet Loss: The percentage of data packets that are lost during transmission.
• Jitter: The variation in packet arrival times, which can affect the quality of real-time applications.

Here is a table summarizing the key performance metrics for a CMTS:

📊 Note: Regular monitoring of these metrics is essential for maintaining the performance and reliability of a CMTS.

CMTS Security Best Practices

Ensuring the security of a CMTS is crucial for protecting the network and user data. Some best practices for CMTS security include:

• Regular Updates: Keep the CMTS software up to date with the latest security patches and updates.
• Strong Authentication: Use strong authentication methods to prevent unauthorized access to the CMTS.
• Firewall Protection: Implement firewalls to protect the CMTS from external threats.
• Encryption: Use encryption to secure data transmitted over the network.
• Monitoring and Logging: Continuously monitor the CMTS for suspicious activity and maintain detailed logs for auditing purposes.

By following these best practices, ISPs can enhance the security of their CMTS devices and protect their networks from potential threats.

In conclusion, the Cable Modem Termination System (CMTS) is a critical component of modern cable internet infrastructure. It plays a vital role in delivering high-speed internet to users by managing data flow between the ISP and end-users. Understanding the operation, components, and benefits of a CMTS is essential for anyone involved in network management or telecommunications. As technology continues to evolve, the CMTS will remain a key player in ensuring reliable and efficient internet connectivity for millions of users worldwide.
