Dimensional analysis is a powerful tool used in various fields of science and engineering to simplify complex problems and derive meaningful relationships between physical quantities. One of the cornerstones of dimensional analysis is the Buckingham Pi Theorem, a fundamental principle that helps in reducing the number of variables in a problem to a smaller set of dimensionless parameters. This theorem is particularly useful in fluid dynamics, heat transfer, and other areas where the relationships between variables are not immediately apparent.
Understanding the Buckingham Pi Theorem

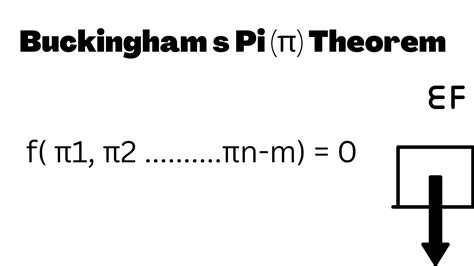

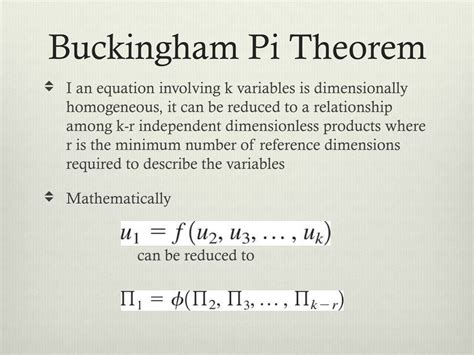

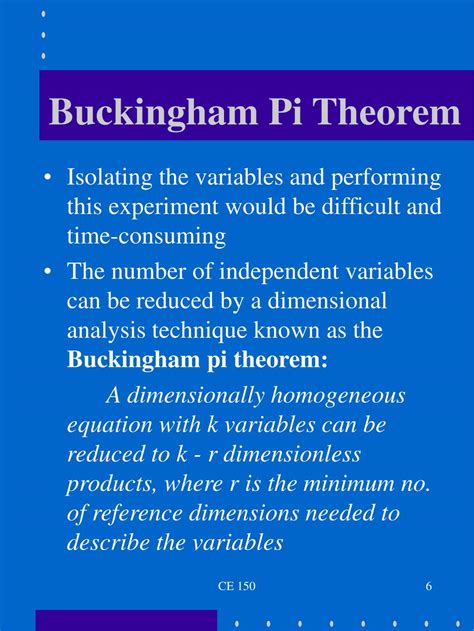

The Buckingham Pi Theorem states that any physically meaningful equation involving n dimensional variables can be rewritten in terms of a set of p dimensionless parameters, where p = n - r, and r is the number of fundamental dimensions involved. These dimensionless parameters are often referred to as Pi terms. The theorem provides a systematic way to identify these Pi terms, making it easier to analyze and solve problems.
Steps to Apply the Buckingham Pi Theorem
Applying the Buckingham Pi Theorem involves several steps. Here is a detailed guide to help you understand and implement the process:
Step 1: Identify the Relevant Variables
The first step is to identify all the relevant variables in the problem. These variables should include all the physical quantities that affect the outcome. For example, in a problem involving fluid flow, the relevant variables might include velocity, density, viscosity, and characteristic length.
Step 2: Determine the Fundamental Dimensions
Next, determine the fundamental dimensions involved in the problem. The most common fundamental dimensions are mass (M), length (L), time (T), and temperature (Θ). For example, velocity has dimensions of L/T, and density has dimensions of M/L³.
Step 3: Form Dimensionless Pi Terms
Using the identified variables and fundamental dimensions, form dimensionless Pi terms. This involves grouping the variables in such a way that the resulting terms are dimensionless. The number of Pi terms will be equal to the number of variables minus the number of fundamental dimensions.
For example, consider a problem with the following variables: velocity (V), density (ρ), viscosity (μ), and characteristic length (L). The fundamental dimensions are M, L, and T. The Pi terms can be formed as follows:
| Pi Term | Expression |
|---|---|
| Π₁ | ρVL/μ |
| Π₂ | V²/Lg |
In this example, Π₁ is the Reynolds number, and Π₂ is a dimensionless parameter related to the Froude number.
Step 4: Experimentally Determine the Relationship
Once the Pi terms are identified, the next step is to experimentally determine the relationship between them. This involves conducting experiments or simulations to gather data and then analyzing the data to find the functional relationship.
For example, in fluid dynamics, the relationship between the Reynolds number and the drag coefficient can be determined experimentally. This relationship can then be used to predict the behavior of fluids under different conditions.
Applications of the Buckingham Pi Theorem
The Buckingham Pi Theorem has wide-ranging applications in various fields. Some of the key areas where this theorem is applied include:
- Fluid Dynamics: In fluid dynamics, the theorem is used to derive dimensionless numbers such as the Reynolds number, Froude number, and Weber number. These numbers help in understanding the behavior of fluids under different conditions.
- Heat Transfer: In heat transfer, the theorem is used to derive dimensionless numbers such as the Nusselt number, Prandtl number, and Biot number. These numbers help in understanding the heat transfer processes in different systems.
- Mechanical Engineering: In mechanical engineering, the theorem is used to analyze the performance of machines and systems. For example, it can be used to study the efficiency of turbines, pumps, and other mechanical devices.
- Chemical Engineering: In chemical engineering, the theorem is used to analyze the behavior of chemical reactions and processes. For example, it can be used to study the kinetics of chemical reactions and the design of chemical reactors.
These applications demonstrate the versatility and importance of the Buckingham Pi Theorem in various fields of science and engineering.
Examples of the Buckingham Pi Theorem in Action
To illustrate the practical application of the Buckingham Pi Theorem, let's consider a few examples:
Example 1: Fluid Flow in a Pipe
Consider the problem of fluid flow in a pipe. The relevant variables might include the velocity of the fluid (V), the diameter of the pipe (D), the viscosity of the fluid (μ), the density of the fluid (ρ), and the pressure drop (ΔP) over a certain length of the pipe (L).
The fundamental dimensions involved are M, L, and T. The number of variables is 6, and the number of fundamental dimensions is 3. Therefore, the number of Pi terms is 3.
Using the Buckingham Pi Theorem, we can form the following Pi terms:
| Pi Term | Expression |
|---|---|
| Π₁ | ρVD/μ |
| Π₂ | ΔP/ρV² |
| Π₃ | L/D |
In this example, Π₁ is the Reynolds number, Π₂ is a dimensionless pressure drop, and Π₃ is a dimensionless length.
💡 Note: The Reynolds number is a crucial parameter in fluid dynamics, as it helps in determining whether the flow is laminar or turbulent.
Example 2: Heat Transfer in a Fin
Consider the problem of heat transfer in a fin. The relevant variables might include the thermal conductivity of the fin material (k), the length of the fin (L), the cross-sectional area of the fin (A), the perimeter of the fin (P), the temperature difference (ΔT), and the heat transfer coefficient (h).
The fundamental dimensions involved are M, L, T, and Θ. The number of variables is 6, and the number of fundamental dimensions is 4. Therefore, the number of Pi terms is 2.
Using the Buckingham Pi Theorem, we can form the following Pi terms:
| Pi Term | Expression |
|---|---|
| Π₁ | hL/k |
| Π₂ | ΔT/L |
In this example, Π₁ is a dimensionless heat transfer coefficient, and Π₂ is a dimensionless temperature difference.
💡 Note: The dimensionless heat transfer coefficient is important in heat transfer analysis, as it helps in understanding the efficiency of heat transfer in different systems.
Challenges and Limitations
While the Buckingham Pi Theorem is a powerful tool, it also has its challenges and limitations. Some of the key challenges include:
- Complexity of Variables: Identifying all the relevant variables in a problem can be challenging, especially in complex systems. Missing a variable can lead to incorrect Pi terms and inaccurate results.
- Experimental Determination: The relationship between the Pi terms often needs to be determined experimentally, which can be time-consuming and costly. In some cases, it may not be feasible to conduct the necessary experiments.
- Non-Dimensional Variables: In some cases, it may be difficult to form dimensionless Pi terms, especially if the variables have complex relationships. This can make the application of the theorem more challenging.
Despite these challenges, the Buckingham Pi Theorem remains a valuable tool in dimensional analysis and is widely used in various fields of science and engineering.
In conclusion, the Buckingham Pi Theorem is a fundamental principle in dimensional analysis that helps in simplifying complex problems and deriving meaningful relationships between physical quantities. By reducing the number of variables to a smaller set of dimensionless parameters, the theorem provides a systematic way to analyze and solve problems in various fields. Whether in fluid dynamics, heat transfer, mechanical engineering, or chemical engineering, the Buckingham Pi Theorem is a powerful tool that enhances our understanding of physical phenomena and improves the design and analysis of systems.
