The Brinell Hardness Test is a widely used method for determining the hardness of materials, particularly metals. This test is crucial in various industries, including manufacturing, automotive, and aerospace, where the mechanical properties of materials are critical. The Brinell Hardness Test provides valuable insights into a material's resistance to deformation, which is essential for ensuring the quality and durability of products.
Understanding the Brinell Hardness Test
The Brinell Hardness Test involves pressing a hardened steel or carbide ball into the surface of the material being tested. The diameter of the indentation left by the ball is measured, and this measurement is used to calculate the Brinell Hardness Number (BHN). The test is named after Johan August Brinell, a Swedish engineer who developed the method in 1900.
The Brinell Hardness Test is particularly useful for testing large, coarse-grained materials and those with heterogeneous structures. It is less suitable for thin materials or those with very hard surfaces, as the indentation may not be clearly defined.
Equipment and Materials Required
To perform a Brinell Hardness Test, you will need the following equipment and materials:

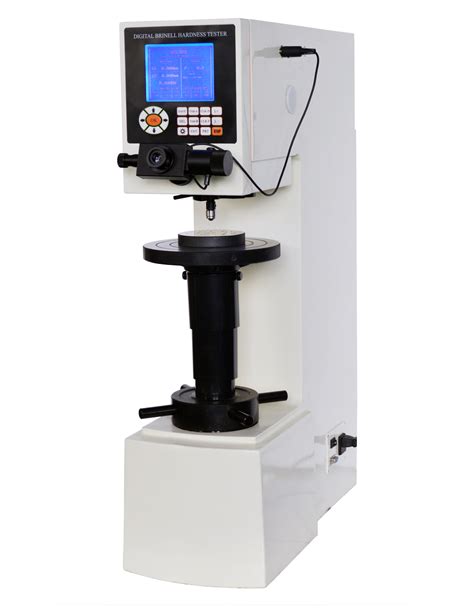

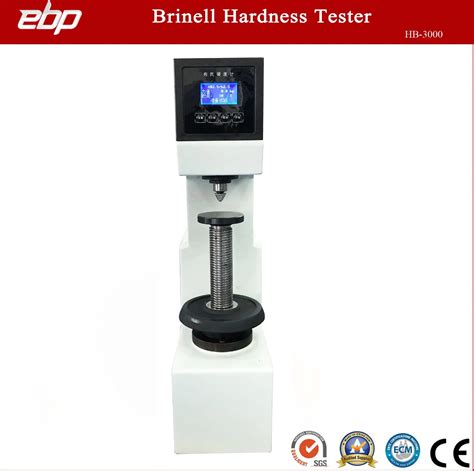

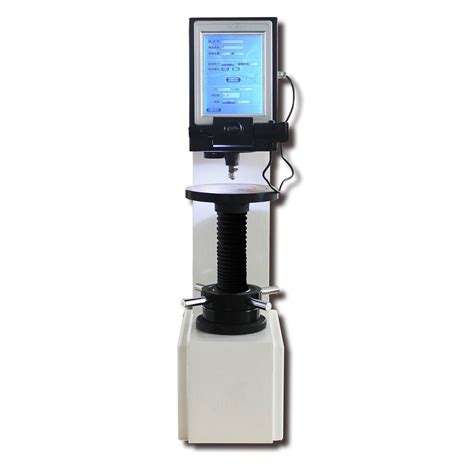

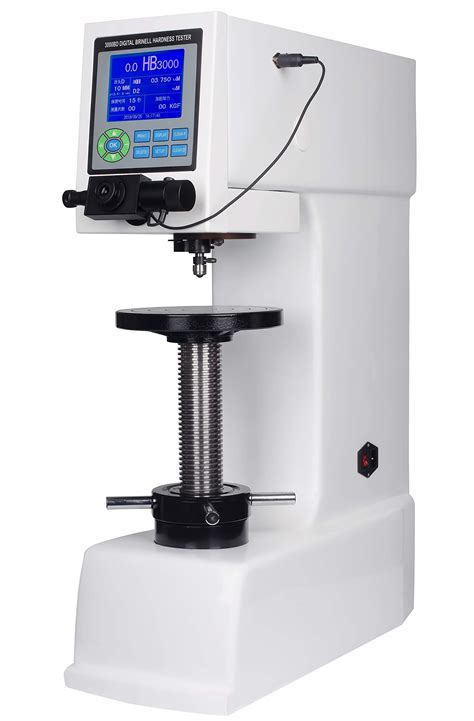

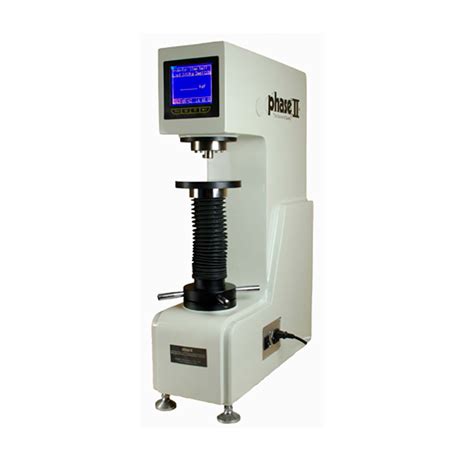

- A Brinell hardness testing machine
- A hardened steel or carbide ball (indenter)
- A microscope or other measuring device
- The material to be tested
Steps to Perform the Brinell Hardness Test
The Brinell Hardness Test follows a series of steps to ensure accurate and reliable results. Here is a detailed guide:
Preparation
Before beginning the test, ensure that the surface of the material is clean and free of any contaminants. The surface should be flat and smooth to avoid any irregularities in the indentation.
Selecting the Indenter
The size of the indenter (ball) and the applied load depend on the material being tested. Common indenter sizes include 10 mm, 5 mm, and 2.5 mm in diameter. The load can range from 500 kgf to 3000 kgf, depending on the hardness of the material.
Applying the Load
Place the material on the testing machine and position the indenter above the surface. Apply the selected load to the indenter, allowing it to press into the material for a specified duration, typically 10 to 15 seconds. The load is then released, leaving an indentation on the surface.
Measuring the Indentation
Use a microscope or other measuring device to determine the diameter of the indentation. The measurement should be taken at two perpendicular axes to ensure accuracy. The average of these two measurements is used in the calculation.
Calculating the Brinell Hardness Number
The Brinell Hardness Number (BHN) is calculated using the following formula:
BHN = 2P / (πD(D - √(D2 - d2)))
Where:
- P is the applied load in kilograms-force (kgf)
- D is the diameter of the indenter in millimeters (mm)
- d is the diameter of the indentation in millimeters (mm)
This formula accounts for the applied load, the size of the indenter, and the size of the indentation to provide a standardized measure of hardness.
🔍 Note: Ensure that the indentation is clearly visible and measurable. If the indentation is not well-defined, the test may need to be repeated with a different load or indenter size.
Interpreting the Results
The Brinell Hardness Number provides a quantitative measure of a material's hardness. Higher BHN values indicate greater resistance to deformation. The results can be used to compare the hardness of different materials or to assess the quality of a material within a specific application.
Here is a table showing the approximate Brinell Hardness Numbers for some common materials:
| Material | Brinell Hardness Number (BHN) |
|---|---|
| Aluminum | 30-150 |
| Brass | 60-300 |
| Steel | 120-700 |
| Cast Iron | 150-400 |
| Titanium | 150-350 |
Applications of the Brinell Hardness Test
The Brinell Hardness Test is widely used in various industries for quality control and material characterization. Some of the key applications include:
- Manufacturing: Ensuring the quality and durability of metal components
- Automotive: Testing the hardness of engine parts, gears, and other critical components
- Aerospace: Evaluating the hardness of aircraft components to ensure safety and performance
- Construction: Assessing the hardness of structural materials such as steel and cast iron
- Research and Development: Characterizing new materials and alloys for various applications
The Brinell Hardness Test is particularly valuable in industries where the mechanical properties of materials are critical to performance and safety. By providing a standardized measure of hardness, the test helps ensure that materials meet the required specifications and perform reliably under various conditions.
🔍 Note: The Brinell Hardness Test is not suitable for very hard materials or thin sheets, as the indentation may not be clearly defined. In such cases, other hardness tests, such as the Rockwell or Vickers tests, may be more appropriate.
Advantages and Limitations
The Brinell Hardness Test offers several advantages, making it a popular choice for material testing:
- Simple and straightforward procedure
- Suitable for large, coarse-grained materials
- Provides a clear and measurable indentation
- Widely accepted and standardized method
However, the test also has some limitations:
- Not suitable for very hard materials or thin sheets
- Requires a flat and smooth surface for accurate results
- May cause permanent deformation of the material
- Less precise for materials with heterogeneous structures
Despite these limitations, the Brinell Hardness Test remains a valuable tool for material characterization and quality control in many industries.
In summary, the Brinell Hardness Test is a fundamental method for determining the hardness of materials, particularly metals. By providing a standardized measure of hardness, the test helps ensure the quality and durability of products in various industries. Understanding the principles, procedures, and applications of the Brinell Hardness Test is essential for anyone involved in material testing and quality control.
In conclusion, the Brinell Hardness Test is a crucial tool for assessing the mechanical properties of materials. Its simplicity, reliability, and wide acceptance make it a valuable method for ensuring the quality and performance of products in various industries. By understanding the test’s principles, procedures, and applications, professionals can make informed decisions about material selection and quality control, ultimately leading to safer and more reliable products.
