Breaker Panel Replacement

Electrical systems are the lifeblood of modern homes and businesses, powering everything from lighting to appliances. At the heart of these systems lies the breaker panel, a critical component that distributes electricity safely and efficiently. Over time, breaker panels can become outdated, damaged, or insufficient for the electrical demands of a property. When this happens, a breaker panel replacement becomes necessary. This process involves replacing the old panel with a new one that can handle increased electrical loads and meet modern safety standards.

Understanding Breaker Panels

A breaker panel, also known as a fuse box or electrical panel, is a metal box that houses circuit breakers. These breakers protect the electrical circuits in your home or business from overloads and short circuits. When a circuit becomes overloaded, the breaker trips, cutting off the power to that circuit and preventing potential electrical fires or damage to appliances.

Breaker panels come in various sizes and types, each designed to handle different electrical loads. The most common types include:

• Main Breaker Panels: These panels have a main circuit breaker that controls the power to all other circuits. They are typically found in residential settings.
• Main Lug Panels: These panels do not have a main circuit breaker but instead have lugs where the main power lines connect. They are often used in commercial settings.
• Subpanels: These are secondary panels that receive power from the main panel and distribute it to specific areas of a property, such as a garage or workshop.

Signs That You Need a Breaker Panel Replacement

Determining when to replace a breaker panel can be challenging, but there are several telltale signs to look out for:

• Frequent Tripping: If your circuit breakers trip frequently, it may indicate that your panel is overloaded or outdated.
• Burning Smells: A burning smell near the breaker panel is a serious warning sign of electrical issues that require immediate attention.
• Flickering Lights: Lights that flicker or dim unexpectedly can indicate problems with the breaker panel or wiring.
• Outdated Panel: Older panels, such as those with fuses instead of circuit breakers, may not meet modern safety standards and should be replaced.
• Insufficient Power: If you find that your electrical needs exceed the capacity of your current panel, it may be time for an upgrade.

The Breaker Panel Replacement Process

Replacing a breaker panel is a complex task that should be performed by a licensed electrician. The process involves several steps, including:

Assessment and Planning

The first step in a breaker panel replacement is to assess the current electrical system and plan the new installation. This includes:

• Evaluating the electrical load requirements of the property.
• Determining the size and type of breaker panel needed.
• Planning the layout of the new panel and circuits.

Safety Precautions

Before beginning any work, it is crucial to take safety precautions to prevent electrical shocks and fires. This includes:

• Turning off the main power supply to the property.
• Using appropriate personal protective equipment (PPE), such as insulated gloves and safety glasses.
• Ensuring that the work area is well-ventilated and free of flammable materials.

Removing the Old Panel

The next step is to remove the old breaker panel. This involves:

• Disconnecting the main power supply and any connected circuits.
• Removing the cover and internal components of the old panel.
• Disconnecting the wiring from the old panel and labeling it for reference.

🛑 Note: It is essential to follow local electrical codes and regulations when removing and disposing of the old panel.

Installing the New Panel

Once the old panel is removed, the new panel can be installed. This involves:

• Mounting the new panel in the same location as the old one, ensuring it is securely fastened.
• Connecting the main power supply to the new panel.

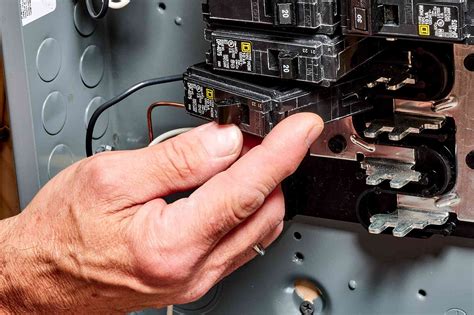

• Installing the new circuit breakers and connecting the wiring according to the planned layout.

Testing and Final Inspection

After the new panel is installed, it is essential to test the system and perform a final inspection. This includes:

• Turning on the main power supply and testing each circuit to ensure it is functioning correctly.
• Checking for any loose connections or wiring issues.
• Performing a final inspection to ensure that the installation meets all local electrical codes and regulations.

🛑 Note: It is crucial to have the installation inspected by a licensed electrician or local building inspector to ensure safety and compliance.

Choosing the Right Breaker Panel

Selecting the right breaker panel is essential for ensuring the safety and efficiency of your electrical system. When choosing a new panel, consider the following factors:

• Size: The size of the panel should be based on the electrical load requirements of your property. A panel that is too small may not provide enough power, while one that is too large can be unnecessary and costly.
• Type: Choose a panel that is suitable for your specific needs, such as a main breaker panel for residential settings or a main lug panel for commercial settings.
• Brand: Select a reputable brand known for quality and reliability. Some popular brands include Square D, Siemens, and GE.
• Features: Consider additional features such as arc fault circuit interrupters (AFCIs) and ground fault circuit interrupters (GFCIs), which provide added protection against electrical hazards.

Cost Considerations for Breaker Panel Replacement

The cost of a breaker panel replacement can vary widely depending on several factors, including the size and type of panel, the complexity of the installation, and local labor costs. Here is a breakdown of the typical costs involved:

It is essential to obtain multiple quotes from licensed electricians to ensure you are getting a fair price. Additionally, consider the long-term benefits of a new panel, such as improved safety and energy efficiency, when evaluating the cost.

🛑 Note: Always ensure that the electrician you hire is licensed and insured to perform the work.

Benefits of a Breaker Panel Replacement

Replacing an outdated or insufficient breaker panel offers numerous benefits, including:

• Improved Safety: A new panel with modern safety features can reduce the risk of electrical fires and shocks.
• Increased Capacity: A larger panel can handle increased electrical loads, allowing you to add more appliances and devices.
• Enhanced Efficiency: A new panel can improve the overall efficiency of your electrical system, reducing energy waste and lowering utility bills.
• Compliance with Codes: A new panel ensures that your electrical system meets current safety codes and regulations.
• Peace of Mind: Knowing that your electrical system is safe and reliable provides peace of mind for homeowners and business owners alike.

In addition to these benefits, a breaker panel replacement can also increase the value of your property, making it a worthwhile investment for both residential and commercial settings.

Common Mistakes to Avoid During Breaker Panel Replacement

While replacing a breaker panel is a straightforward process for experienced electricians, there are several common mistakes to avoid:

• Incorrect Panel Size: Choosing a panel that is too small or too large for your electrical needs can lead to inefficiencies and safety issues.
• Improper Wiring: Incorrect wiring can cause short circuits, electrical fires, and other hazards. Always follow the manufacturer's instructions and local electrical codes.
• Ignoring Safety Precautions: Failing to take necessary safety precautions, such as turning off the main power supply, can result in electrical shocks and injuries.
• Skipping Inspections: Skipping the final inspection can lead to undetected issues that compromise the safety and efficiency of your electrical system.

By avoiding these common mistakes and following best practices, you can ensure a successful and safe breaker panel replacement.

🛑 Note: If you are not experienced in electrical work, it is highly recommended to hire a licensed electrician to perform the replacement.

In conclusion, a breaker panel replacement is a critical task that ensures the safety and efficiency of your electrical system. By understanding the signs that indicate a need for replacement, following the proper installation process, and choosing the right panel, you can enjoy the numerous benefits of a modern and reliable electrical system. Whether you are a homeowner or a business owner, investing in a new breaker panel is a wise decision that provides long-term peace of mind and improved electrical performance.
